A type-safe set of pointers to persistent objects in the database (intended as an attribute for persistent objects).
Objects can be inserted only once. More...

#include <GloTPointerSet.h>

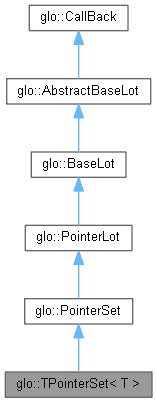

Inheritance diagram for glo::TPointerSet< T >:

[legend]

Public Member Functions
	TPointerSet ()

	TPointerSet (Base &rBase)

virtual	~TPointerSet ()

virtual int	get (std::shared_ptr< T > &rRetVal, EnSeekMode eMode)

virtual int	get (T *&prRetVal, EnSeekMode eMode)

virtual int	getTypeAsString (std::string &rsTypeName) override

virtual int	insert (std::shared_ptr< T > spNewObj)

virtual int	insert (T *pNewObj)

virtual int	remove (std::shared_ptr< T > spObject)

virtual int	remove (T *pObject)

Public Member Functions inherited from glo::PointerSet
	PointerSet ()

	PointerSet (Base &rBase)

virtual	~PointerSet ()

virtual void	clear () override

virtual int	getPers (BasePersistent *&prRetVal, EnSeekMode eMode) override

virtual int	getPersistent (BasePersistent *&prRetVal, const ObjID &rObjID) override

virtual int	insertPers (BasePersistent *pNewObj) override

virtual int	removePers (BasePersistent *pObject) override

std::set< BasePersistent * > &	Set ()

virtual int	setCurrentObject (const ObjID &rObjID) override

virtual int	setPosition (std::size_t nPosition) override

virtual std::size_t	size () const override

virtual void	getAllClassIDs (std::list< ObjID > &rAllClassIDs) const
	See description in superclass.

virtual bool	inLot (const ObjID &object) const override
	See description in superclass.

virtual bool	inLot (const BasePersistent &object) const override
	See description in superclass.

virtual bool	inLot (const std::shared_ptr< BasePersistent > object) const override
	See description in superclass.

Public Member Functions inherited from glo::PointerLot
	PointerLot ()

	PointerLot (Base &rBase)

virtual	~PointerLot ()

virtual Base *	getBase () const override

virtual int	getObjID (ObjID &rObjID, EnSeekMode eMode) override

virtual int	setBase (Base *pBase) override

Public Member Functions inherited from glo::BaseLot
	BaseLot ()

virtual	~BaseLot ()

virtual int	getPers (std::shared_ptr< BasePersistent > &rRetVal, EnSeekMode eMode)

virtual int	insertPers (std::shared_ptr< BasePersistent > spNewObj)

virtual int	lock (const LockSpecification &rLockSpecification)

virtual int	lock (EnLockMode eLockMode=LK_DELETEvWRITE, EnDeepMode eDeepMode=DM_SHALLOW)

virtual int	removePers (std::shared_ptr< BasePersistent > spObject)

virtual int	setWatch (const WatchSpecification &rWatchSpec)

virtual int	setWatch (TdWatchNotifyMode ulWatchMode, EnDeepMode eDeepMode, CallBack *pCallBack=0)

virtual int	unlock (const LockSpecification &rLockSpecification)

virtual int	unlock (EnLockMode eLockMode=LK_DELETEvWRITE, EnDeepMode eDeepMode=DM_SHALLOW)

virtual int	unsetWatch (const WatchSpecification &rWatchSpec)

virtual int	unsetWatch (TdWatchNotifyMode ulWatchMode, EnDeepMode eDeepMode, CallBack *pCallBack=0)

Public Member Functions inherited from glo::AbstractBaseLot
	AbstractBaseLot ()

virtual	~AbstractBaseLot ()

virtual int	getPersistent (std::shared_ptr< BasePersistent > &rRetVal, const ObjID &rObjID)

virtual int	setCurrentObject (const BasePersistent &rObject)

Public Member Functions inherited from glo::CallBack
	CallBack ()

virtual	~CallBack ()

virtual void	notify (NotifyNote &rNote)

CallBack &	operator= (const CallBack &rT)

bool	operator== (const CallBack &rT) const
	Comparison operator, all attributes are compared.

bool	operator!= (const CallBack &rT) const
	Comparison operator, all attributes are compared.

Static Public Member Functions
static unsigned long	getStaticGloClassID ()

Private Member Functions
	TPointerSet (const TPointerSet &)

TPointerSet< T > &	operator= (const TPointerSet &)

Additional Inherited Members
Public Attributes inherited from glo::CallBack
std::string	m_strDebugInfo

Protected Member Functions inherited from glo::BaseLot
int	lockObjID (const ObjID &rObjID)

int	setWatchObjID (const ObjID &rObjID)

int	takeOverBase (const BasePersistent *pObj)

int	takeOverBase (const Reference *pRef)

int	unlockObjID (const ObjID &rObjID)

int	unsetWatchObjID (const ObjID &rObjID)

Protected Member Functions inherited from glo::CallBack
	CallBack (const CallBack &rT)

void	deinit ()

void	init ()

Protected Attributes inherited from glo::BaseLot
unsigned long	m_ulClassID

Detailed Description

template<class T>
class glo::TPointerSet< T >

A type-safe set of pointers to persistent objects in the database (intended as an attribute for persistent objects).
Objects can be inserted only once.

When a persistent object with an attribute of type TPointerSet is loaded from the database into memory, the objects contained in the TPointerSet are automatically loaded into memory.

This class ensures that the method Persistent::forget() of the contained objects is called when the object is destroyed.

When an object is delivered, the method Persistent::remember() is called.

Copyright: © 2010 Helmut Jakoby

Author: Helmut Jakoby

Constructor & Destructor Documentation

◆ TPointerSet() [1/3]

template<class T>

glo::TPointerSet< T >::TPointerSet ( )

Standard constructor.

References glo::CallBack::m_strDebugInfo, and SUPER.

Referenced by TPointerSet(), and operator=().

◆ TPointerSet() [2/3]

template<class T>

glo::TPointerSet< T >::TPointerSet ( Base & rBase )

Constructor with parameter passing.

Parameters

[in] rBase The database is passed.

References glo::CallBack::m_strDebugInfo, and SUPER.

◆ ~TPointerSet()

template<class T>

glo::TPointerSet< T >::~TPointerSet ( )

virtual

Destructor, for all objects in the object set the own lock and watch mode is cancelled and then the object set is emptied.

See also: clear()

◆ TPointerSet() [3/3]

template<class T>

glo::TPointerSet< T >::TPointerSet ( const TPointerSet< T > & )

private

The copy constructor is not available.

References TPointerSet().

Member Function Documentation

◆ get() [1/2]

template<class T>

int glo::TPointerSet< T >::get	(	std::shared_ptr< T > &	rRetVal,
		EnSeekMode	eMode )

virtual

Returns an object from the set in relation to eMode.

Parameters

[in,out]	rRetVal	If no error, the fetched object in a std::shared_ptr.
[in]	eMode	The seek mode.

Parameter examples:

glo::START = returns first element
glo::END = returns last element
glo::CURRENT = returns current element
glo::NEXT = returns next element
glo::PREVIOUS = returns previous element

Returns: A return < 0 indicates an error. A return == ERR_RANGE indicates the end of the AllSet.

References get().

◆ get() [2/2]

template<class T>

int glo::TPointerSet< T >::get	(	T *&	prRetVal,
		EnSeekMode	eMode )

virtual

Returns an object from the set in relation to eMode.

Parameters

[in,out]	prRetVal	If no error, the fetched object.
[in]	eMode	The seek mode.

Parameter examples:

glo::START = returns first element
glo::END = returns last element
glo::CURRENT = returns current element
glo::NEXT = returns next element
glo::PREVIOUS = returns previous element

Returns: A return < 0 indicates an error. A return == ERR_RANGE indicates the end of the AllSet.

Attention: If prRetVal is valid, this object must be removed from memory by the calling instance. It is recommended to use the method of the same name with a std::shared_ptr.

Referenced by get().

◆ getStaticGloClassID()

template<class T>

static unsigned long glo::TPointerSet< T >::getStaticGloClassID ( )

inlinestatic

Returns the template class ID.

Returns: The class ID

◆ getTypeAsString()

template<class T>

int glo::TPointerSet< T >::getTypeAsString ( std::string & rsTypeName )

overridevirtual

Returns the type of the template set, i.e. the class name as string when connected to the database.

Parameters

[in,out] rsTypeName The type name.

Returns: If return value < 0, an error has occurred.

Reimplemented from glo::BaseLot.

◆ insert() [1/2]

template<class T>

int glo::TPointerSet< T >::insert ( std::shared_ptr< T > spNewObj )

virtual

Inserts the passed persistent object into the set.

If the set is locked, the object to be inserted is locked with the lock mode of the set.

If the set is monitored, the object to be inserted is also monitored with the monitoring mode of the set.

Parameters

[in] spNewObj The persistent object to be inserted in a std::shared_ptr.

Returns: A return value < 0 indicates an error.

Attention: The internal iterator m_poObjSetIterator points to the inserted element if the insertion is successful.

◆ insert() [2/2]

template<class T>

int glo::TPointerSet< T >::insert ( T * pNewObj )

virtual

Inserts the passed persistent object into the set.

If the set is locked, the object to be inserted is locked with the lock mode of the set.

If the set is monitored, the object to be inserted is also monitored with the monitoring mode of the set.

Parameters

[in] pNewObj The persistent object to be inserted. If no error, the linkcounter is incremented by pNewObj.

Returns: A return value < 0 indicates an error.

Attention: The internal iterator m_poObjSetIterator points to the inserted element if the insertion is successful.

◆ operator=()

template<class T>

TPointerSet< T > & glo::TPointerSet< T >::operator= ( const TPointerSet< T > & )

private

The assignment operator is not available.

References TPointerSet().

◆ remove() [1/2]

template<class T>

int glo::TPointerSet< T >::remove ( std::shared_ptr< T > spObject )

virtual

Removes the passed persistent object from the set.

If the set is locked, the object to be removed is released with the lock mode of the set.

If the set is monitored, the monitoring of the object to be removed is ended with the monitoring mode of the set.

Parameters

[in] spObject The persistent object to be removed in a std::shared_ptr.

Returns: A return value < 0 indicates an error.

Attention: The internal iterator m_poObjSetIterator points to the element following the removed one if the deletion was successful. If there is no subsequent element, the internal iterator m_poObjSetIterator points to the container end.

◆ remove() [2/2]

template<class T>

int glo::TPointerSet< T >::remove ( T * pObject )

virtual

Removes the passed persistent object from the set.

If the set is locked, the object to be removed is released with the lock mode of the set.

If the set is monitored, the monitoring of the object to be removed is ended with the monitoring mode of the set.

Parameters

[in] pObject The persistent object to be removed. The linkcounter of pObj is decremented, if in set.

Returns: A return value < 0 indicates an error.

Attention: The internal iterator m_poObjSetIterator points to the element following the removed one if the deletion was successful. If there is no subsequent element, the internal iterator m_poObjSetIterator points to the container end.

The documentation for this class was generated from the following file:

GloTPointerSet.h
