Superclass of LocalThread, ClientThread and ServerThread, because they can act as senders and receivers (communicators) of requests and inherit a send and receive method for this. More...

#include <GloCommunicator.h>

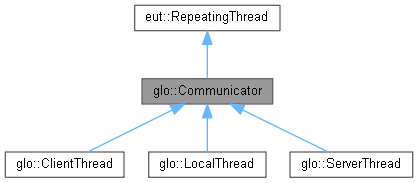

Inheritance diagram for glo::Communicator:

[legend]

Public Member Functions
	Communicator ()

virtual	~Communicator ()

virtual int	assignDBManager (OrderMsg *pOrderMsg)

std::string	getClientName () const

const std::string &	getClientNameAsRef ()

unsigned int	getCommunicatorID () const

virtual void	setClientName (const std::string &rstrClientName)

virtual void	setCommunicatorID (unsigned int uiID)

virtual int	takeOverResult (OrderMsg *pOrderMsg)


bool	operator== (const Communicator &rT) const

bool	operator!= (const Communicator &rT) const

Public Member Functions inherited from eut::RepeatingThread
	RepeatingThread ()

virtual	~RepeatingThread ()

virtual void	cancel ()

virtual void	finishBreak ()

int	getBreakCounter ()

bool	isInExclusiveAccess () const

void	setExclusiveAccess ()

void	signalInput ()

virtual int	start ()

RepeatingThread::STATUS	status () const

virtual void	takeABreak ()

bool	testCancel ()

void	unsetExclusiveAccess ()

void	waitForInput ()

Protected Member Functions
virtual void	processServerMsg (OrderMsg *pOrderMsg) const

virtual int	sendToDBManager (OrderMsg *pOrderMsg) const =0

virtual void	work () override

Protected Member Functions inherited from eut::RepeatingThread
ORDER	getOrder ()

STATUS	getStatus ()

void	setStatus (STATUS eStatus)

void	threadWork ()

void	toOrder (ORDER eOrder)

Protected Attributes
unsigned int	m_uiOrderCounter

Private Member Functions
	Communicator (const Communicator &)

Communicator &	operator= (const Communicator &)

Private Attributes
std::queue< OrderMsg * >	m_MsgQueue

std::string	m_sClientName

unsigned int	m_uiID

Additional Inherited Members
Public Types inherited from eut::RepeatingThread
enum	EuTHREADERROR { EuTHREAD_ERR_NO_THREAD = -10301 , EuTHREAD_ERR_THREAD_ALREADY_WORKING = -10302 , EuTHREAD_ERR_THREAD_BREAK_COUNT_LESS_THAN_ZERO = -10303 , EuTHREAD_ERR_UNKNOWN = -10400 }
	Error range = -10301 to -10400 More...

enum	ORDER { eUNDEFINED , eDO_WORK , eEXIT }

enum	STATUS { eAT_THE_START , eWORKING , ePAUSING , eENDING , eCOMPLETED }

Public Attributes inherited from eut::RepeatingThread
std::string	m_strDebugInfo

Detailed Description

Superclass of LocalThread, ClientThread and ServerThread, because they can act as senders and receivers (communicators) of requests and inherit a send and receive method for this.

To allow parallel access to the database, this class is designed as a thread (derived from EuEndlessPThread).

Copyright: © 2010 Helmut Jakoby

Author: Helmut Jakoby

Constructor & Destructor Documentation

◆ Communicator() [1/2]

glo::Communicator::Communicator ( )

Standard constructor.

◆ ~Communicator()

virtual glo::Communicator::~Communicator ( )

virtual

Destructor.

◆ Communicator() [2/2]

glo::Communicator::Communicator ( const Communicator & )

private

The copy constructor is not available.

Member Function Documentation

◆ assignDBManager()

virtual int glo::Communicator::assignDBManager ( OrderMsg * pOrderMsg )

virtual

Sends a job to the Manager and waits for response.

Parameters

[in] pOrderMsg The order for the Manager.

Returns: A return value < 0 indicates an error.

Reimplemented in glo::ClientThread, glo::LocalThread, and glo::ServerThread.

◆ getClientName()

std::string glo::Communicator::getClientName ( ) const

Returns the name of the communicator.

Returns: The name of the communicator.

◆ getClientNameAsRef()

const std::string & glo::Communicator::getClientNameAsRef ( )

Returns the name of the communicator as reference.

Returns: The name of the communicator.

◆ getCommunicatorID()

unsigned int glo::Communicator::getCommunicatorID ( ) const

Returns the unique ID of the communicator.

Returns: The unique ID of the communicator.

◆ operator!=()

bool glo::Communicator::operator!= ( const Communicator & rT ) const

Comparison operator.

Parameters

[in] rT The object to be compared with this one.

◆ operator=()

Communicator & glo::Communicator::operator= ( const Communicator & )

private

The assignment operator is not available.

◆ operator==()

bool glo::Communicator::operator== ( const Communicator & rT ) const

Comparison operator.

Parameters

[in] rT The object to be compared with this one.

◆ processServerMsg()

virtual void glo::Communicator::processServerMsg ( OrderMsg * pOrderMsg ) const

protectedvirtual

Processes only one notification order here (Orderstayp == OrderMsg::eNOTIFY_CLIENT).

Each order is removed from memory here, so it must be called by the overwritten methods in the subclasses.

Parameters

[in] pOrderMsg The order.

Reimplemented in glo::ServerThread.

◆ sendToDBManager()

virtual int glo::Communicator::sendToDBManager ( OrderMsg * pOrderMsg ) const

protectedpure virtual

Sends an order in subclasses (received via assignDBManager() ) to the Manager. In the subclasses directly or via TCP/IP.

Parameters

[in] pOrderMsg The order for the Manager.

Returns: A return value < 0 indicates an error.

Implemented in glo::ClientThread, glo::LocalThread, and glo::ServerThread.

◆ setClientName()

virtual void glo::Communicator::setClientName ( const std::string & rstrClientName )

virtual

Sets the name of the communicator.

Parameters

[in] rstrClientName The name of the communicator.

◆ setCommunicatorID()

virtual void glo::Communicator::setCommunicatorID ( unsigned int uiID )

virtual

Parameters

[in] uiID The unique ID of the communicator.

Attention: The calling instance must ensure that the ID is unique.

◆ takeOverResult()

virtual int glo::Communicator::takeOverResult ( OrderMsg * pOrderMsg )

virtual

Adopts a message into its message queue for processing.

Parameters

[in] pOrderMsg The message to be processed.

Returns: A return value < 0 indicates an error.

See also: signalInput()

Reimplemented in glo::ServerThread.

◆ work()

virtual void glo::Communicator::work ( )

overrideprotectedvirtual

This method is executed as a thread. The message queue is queried for requests and replies to its own requests (the system 'sleeps' until a message is placed in the queue).

See also: waitForInput()

Implements eut::RepeatingThread.

Member Data Documentation

◆ m_MsgQueue

std::queue<OrderMsg *> glo::Communicator::m_MsgQueue

private

The notification queue; notifications such as information from monitored objects are set.

◆ m_sClientName

std::string glo::Communicator::m_sClientName

private

Every communicator can have a name.

◆ m_uiID

unsigned int glo::Communicator::m_uiID

private

A unique ID of the (derived) communicator.

◆ m_uiOrderCounter

unsigned int glo::Communicator::m_uiOrderCounter

protected

Orders to the Manager get a unique order number. The answers from the Manager are referenced by this order number, so they can be assigned to an order.

The documentation for this class was generated from the following file:

GloCommunicator.h
