IndexPool is the base class for the RealIndexPool and the TransactionIndexPool for the individual transactions. More...

#include <GloIndexPool.h>

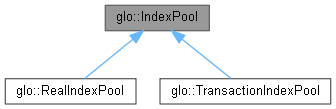

Inheritance diagram for glo::IndexPool:

[legend]

Classes
class	DeletedObjIdTuple
	Class to manage deleted objects in the IndexPool::SchemaIndex. More...

struct	IndexComparisionFilter
	Filters can be assigned to objects of the type ObjectStrIndexIterator, which control the iteration by an ObjectStrIndex. With this structure, a filter can be defined using "<", "<=", ">", ">=", "==" and "!=". For example, if m_sIndexFilterValue has the value "123" and m_eComparisionOperator has the value GREATER_EQUAL, only all objects with an index greater than or equal to "123" will be filtered out. More...

struct	IndexFilter
	Filters can be assigned to objects of the type ObjectStrIndexIterator, which control the iteration by an ObjectStrIndex. This filter has an index filter expression in m_sIndexFilterValue. More...

struct	IndexRangeFilter
	Filters can be assigned to objects of the type ObjectStrIndexIterator, which control the iteration by an ObjectStrIndex. With this structure a filter can be defined by means of a range specification. For example, if m_sIndexFilterValue has the value "123" and m_sIndexFilterEndValue has the value "155", all Objects with an index lower than "123" and higher than "155" will be filtered out. Thus, only all objects with an index greater than/equal to "123" and less than/equal to "155" will be delivered in case of a query. More...

class	ObjectStrIndex
	Manages the individual string indices of a class. If this is a unique index, the ObjStrIdTuple are in a map, otherwise in a MultiMap. Then indexes in a MultiMap can be inserted as reserved, this is taken into account when inserting further. More...

class	ObjectStrIndexIterator
	Has a pointer to an ObjectStrIndex and allows iteration through this index. Is instantiated e.g. for AllSets so that they can iterate independently through StringIndexes. More...

class	ObjIdPosTuple
	Class to manage objects in the IndexPool::TableObjIdIndex. More...

class	ObjStrIdTuple
	Class to manage objects in the IndexPool::ObjectStrIndex. More...

class	SchemaIndex
	Is the index manager class for a schema resp. a database. More...

class	TableObjIdIndex
	Manages the object IDs (used and released) with their position in the respective tables. More...

class	TableObjIdIndexIterator
	Has a pointer to a TableObjIdIndex and allows to iterate through this index. Is instantiated e.g. for AllSets so that they can iterate through indexes independently. More...

Public Member Functions
	IndexPool ()

	IndexPool (const IndexPool &rT)

virtual	~IndexPool ()

void	deleteAllSchemaIndexValues ()

virtual int	getObjectStrIndexIterator (ObjectStrIndexIterator *&prObjectStrIndexIterators, const std::string &rsSchemaName, unsigned long ulClassID, const std::string &rsIndexName) const

virtual int	getObjIdPosTuple (ObjIdPosTuple *&prRetVal, const std::string &rsSchemaName, unsigned long ulClassID, const ObjID &rObjID) const

virtual int	getTableObjIdIndexIterator (TableObjIdIndexIterator *&prTableIterators, const std::string &rsSchemaName, unsigned long ulClassID) const

virtual int	insertDeletedObjID (const std::string &rsSchemaName, const ObjID &rDeletedObjId)

virtual int	insertObjIdPosTuple (const std::string &rsSchemaName, unsigned long ulClassID, const ObjIdPosTuple &rIndexTuple)

virtual int	insertObjStrIdTuple (const std::string &rsSchemaName, unsigned long ulClassID, const std::string &rsIndexName, const ObjStrIdTuple &rIndexTuple)

virtual int	isIndexFree (const std::string &rsSchemaName, unsigned long ulClassID, const ObjID &rObjID, const std::string &rsIndexName, const std::string &rsIndex) const

virtual bool	isObjIdDeleted (const std::string &rsSchemaName, const ObjID &rObjID) const

virtual int	isObjIdFree (const std::string &rsSchemaName, const ObjID &rObjID) const

IndexPool &	operator= (const IndexPool &rT)

int	releaseAllCommunicatorObjStrIdTuples (const std::string &rsSchemaName, const NUM_PTR ipReservingComunicator)

int	releaseObjStrIdTuple (const std::string &rsSchemaName, unsigned long ulClassID, const std::string &rsIndexName, const NUM_PTR ipReservingComunicatorTrx)

virtual int	removeObjId (const std::string &rsSchemaName, unsigned long ulClassID, const ObjID &rObjID)

virtual int	removeObjStrIdTuple (const std::string &rsSchemaName, unsigned long ulClassID, const std::string &rsIndexName, const ObjID &rObjID, NUM_PTR ipReservingComunicatorTrx=0)

int	reserveObjStrIdTuple (const std::string &rsSchemaName, unsigned long ulClassID, const std::string &rsIndexName, const ObjStrIdTuple &rIndexTuple)

Protected Member Functions
void	_deleteAllSchemaIndexValues ()

virtual bool	_existsSchemaIndex (const std::string &rsSchemaName) const

virtual int	_getFreeObjIDPos (std::streampos &rPos, const std::string &rsSchemaName, unsigned long ulClassID) const

virtual int	_getObjectStrIndex (ObjectStrIndex *&prRetVal, const std::string &rsSchemaName, unsigned long ulClassID, const std::string &rsIndexName) const

virtual int	_getObjectStrIndexIterator (ObjectStrIndexIterator *&prObjStrIterators, const std::string &rsSchemaName, unsigned long ulClassID, const std::string &rsIndexName) const

virtual int	_getObjIdPosTuple (ObjIdPosTuple *&prRetVal, const std::string &rsSchemaName, unsigned long ulClassID, const ObjID &rObjID) const

virtual int	_getSchemaIndex (SchemaIndex *&prRetVal, const std::string &rsSchemaName) const

virtual int	_getTableObjIdIndex (TableObjIdIndex *&prRetVal, const std::string &rsSchemaName, unsigned long ulClassID) const

virtual int	_getTableObjIdIndexIterator (TableObjIdIndexIterator *&prTableIterators, const std::string &rsSchemaName, unsigned long ulClassID) const

virtual int	_insertDeletedObjID (const std::string &rsSchemaName, const ObjID &rDeletedObjId)

virtual int	_insertFreeObjIDPos (const std::string &rsSchemaName, unsigned long ulClassID, std::streampos Pos)

virtual int	_insertObjIdPosTuple (const std::string &rsSchemaName, unsigned long ulClassID, const ObjIdPosTuple &rIndexTuple)

virtual int	_insertObjStrIdTuple (const std::string &rsSchemaName, unsigned long ulClassID, const std::string &rsIndexName, const ObjStrIdTuple &rIndexTuple)

virtual bool	_isObjIdDeleted (const std::string &rsSchemaName, const ObjID &rObjID) const

virtual int	_isObjIdFree (const std::string &rsSchemaName, unsigned long ulClassID, const ObjID &rObjID) const

virtual int	_makeObjectStrIndex (const std::string &rsSchemaName, const std::string &rsTablePathName, unsigned long ulClassID, const std::string &rsIndexName, bool bUnique)

virtual int	_makeTableObjIdIndex (const std::string &rsSchemaName, const std::string &rsTablePathName, unsigned long ulClassID)

virtual int	_removeFreeObjIDPos (const std::string &rsSchemaName, unsigned long ulClassID, std::streampos Pos)

int	_removeSchemaIndex (const std::string &rsSchemaName)

void	copyMapFrom (const IndexPool &rT)

Protected Attributes
eut::CriticalSection	m_LocalCriticalSection

std::map< std::string, SchemaIndex *, std::less< std::string > >	m_SchemaIndexMap

Detailed Description

IndexPool is the base class for the RealIndexPool and the TransactionIndexPool for the individual transactions.

To speed up the search for records in the tables, the object ID is indexed with the table position in a TableObjIdIndex. Additionally an index of table positions of deleted data records is maintained. These two indexes are loaded into a RealIndexPool when a database is opened and are saved again when it is closed.

The RealIndexPool is the index from the database, i.e. real. Changes in the database that affect any index are documented in the RealIndexPool.

When a transaction is started, a TransactionIndexPool is created as a copy of the RealIndexPool and is validly administered for the respective transaction.

This means:
If an object is inserted, changed or deleted in the transaction and the TableObjIdIndex is affected, the index is only changed in the TransactionIndexPool.

If outside of a transaction an object is changed or deleted, the respective TransactionIndexPool is adjusted in all transactions, if the object is NOT in the transaction.

If an object is inserted outside a transaction, the respective objects of type TransactionIndexPool are adjusted in all transactions.

When a client asks for an object, the system first checks whether the client is in a transaction. Then the TransactionIndexPool is asked there; otherwise the RealIndexPool.

See also: SchemaIndex, TableObjIdIndex, ObjectStrIndex und ClassInfoIndex

Structure:
A SchemaIndex is built for each schema, which builds the index from the tables using the information from this schema.

Schematic structure:

             IndexPool
                 |
           |----------|
           |          |
           |          |
  SchemaIndex1   SchemaIndex2
   |        |     |        |
                  |        |
                  |        |
         TableObjIdIndex  ObjectStrIndex
           |      |               |
           |      |               |
   ObjIDIndex   DelObjIDPos    IndexStr1/ObjId1
    |              |           IndexStr2/ObjId2
    |              |
ObjId1/Pos1        |
ObjId2/Pos2        |
                 Pos3
                 Pos4

Copyright: © 2010 Helmut Jakoby

Author: Helmut Jakoby

Constructor & Destructor Documentation

◆ IndexPool() [1/2]

glo::IndexPool::IndexPool ( )

Standard constructor.

◆ IndexPool() [2/2]

glo::IndexPool::IndexPool ( const IndexPool & rT )

Copy constructor.

Parameters

[in] rT The data is copied from this object.

◆ ~IndexPool()

virtual glo::IndexPool::~IndexPool ( )

virtual

Destructor.

Member Function Documentation

◆ _deleteAllSchemaIndexValues()

void glo::IndexPool::_deleteAllSchemaIndexValues ( )

protected

Removes all objects from m_SchemaIndexMap and from memory

◆ _existsSchemaIndex()

virtual bool glo::IndexPool::_existsSchemaIndex ( const std::string & rsSchemaName ) const

protectedvirtual

Checks if a SchemaIndex with a specific name exists in the m_SchemaIndexMap.

Parameters

[in] rsSchemaName The schema name (e.g. "MyGloBase") of the SchemaIndex to be checked.

Returns: Returns true, if a SchemaIndex with the passed name exists in m_SchemaIndexMap.

◆ _getFreeObjIDPos()

virtual int glo::IndexPool::_getFreeObjIDPos	(	std::streampos &	rPos,
		const std::string &	rsSchemaName,
		unsigned long	ulClassID ) const

protectedvirtual

Returns a free table position in a TableObjIdIndex with passed class ID in a SchemaIndex.

Parameters

[in,out]	rPos	The free table position, if one was available.
[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	ulClassID	The class ID to identify the TableObjIdIndex.

Returns: A return value < 0 indicates an error.

◆ _getObjectStrIndex()

virtual int glo::IndexPool::_getObjectStrIndex	(	ObjectStrIndex *&	prRetVal,
		const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		const std::string &	rsIndexName ) const

protectedvirtual

Returns an ObjectStrIndex of a specified class with a specified name from a specified SchemaIndex

Parameters

[in,out]	prRetVal	The StringIndex, if available.
[in]	rsSchemaName	The schema name (e.g. "MyGloBase") of the returning SchemaIndex.
[in]	ulClassID	The class ID.
[in]	rsIndexName	The index name. E.g., if "[MyClassName.Index.IDX_MyIndexName]" in the schema, then "IDX_MyIndexName".

Returns: A return value < 0 indicates an error.

Attention: The calling instance must not remove the returned object from memory, it only lives as long as this object.

◆ _getObjectStrIndexIterator()

virtual int glo::IndexPool::_getObjectStrIndexIterator	(	ObjectStrIndexIterator *&	prObjStrIterators,
		const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		const std::string &	rsIndexName ) const

protectedvirtual

Returns the ObjectStrIndexIterator of a specific ObjectStrIndex of a specific database.

Parameters

[in,out]	prObjStrIterators	The IndexIterator, if available.
[in]	rsSchemaName	The schema name (e.g. "MyGloBase") of the schemaIndex to be delivered.
[in]	ulClassID	The class ID of the TableObjIdIndex.
[in]	rsIndexName	The index name. E.g., if "[MyClassName.Index.IDX_MyIndexName]" in the schema, then "IDX_MyIndexName".

Returns: A return value < 0 indicates an error.

Attention: The calling instance must remove the returned object from memory.

◆ _getObjIdPosTuple()

virtual int glo::IndexPool::_getObjIdPosTuple	(	ObjIdPosTuple *&	prRetVal,
		const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		const ObjID &	rObjID ) const

protectedvirtual

Returns an object ID with its table position from the TableObjIdIndex with passed class ID in a SchemaIndex with a specific object ID.

Parameters

[in,out]	prRetVal	If present, a pointer to a copy of the object ID with the table position.
[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	ulClassID	The class ID to identify the TableObjIdIndex.
[in]	rObjID	The object ID of the entry to be delivered.

Returns: A return value < 0 indicates an error.

Attention: The calling instance must remove the returned object from memory.

◆ _getSchemaIndex()

virtual int glo::IndexPool::_getSchemaIndex	(	SchemaIndex *&	prRetVal,
		const std::string &	rsSchemaName ) const

protectedvirtual

Returns a SchemaIndex with a specific name from the m_SchemaIndexMap.

Parameters

[in,out]	prRetVal	The SchemaIndex, if available.
[in]	rsSchemaName	The schema name (e.g. "MyGloBase") of the SchemaIndex to be returned.

Returns: A return < 0 indicates an error.

Attention: The calling instance must not remove the supplied object not from memory.

◆ _getTableObjIdIndex()

virtual int glo::IndexPool::_getTableObjIdIndex	(	TableObjIdIndex *&	prRetVal,
		const std::string &	rsSchemaName,
		unsigned long	ulClassID ) const

protectedvirtual

Returns a TableObjIdIndex of a certain class from a certain SchemaIndex.

Parameters

[in,out]	prRetVal	The index, if available.
[in]	rsSchemaName	The schema name (e.g. "MyGloBase") of the returning SchemaIndex.
[in]	ulClassID	The class ID.

Returns: A return value < 0 indicates an error.

Attention: . The calling instance may not remove the returned object from memory, it only lives as long as this object.

◆ _getTableObjIdIndexIterator()

virtual int glo::IndexPool::_getTableObjIdIndexIterator	(	TableObjIdIndexIterator *&	prTableIterators,
		const std::string &	rsSchemaName,
		unsigned long	ulClassID ) const

protectedvirtual

Returns the TableObjIdIndexIterator of a specified TableObjIdIndex of a specified database.

Parameters

[in,out]	prTableIterators	The IndexIterator, if present.
[in]	rsSchemaName	The schema name (e.g. "MyGloBase") of the schemaIndex to be returned.
[in]	ulClassID	The class ID of the TableObjIdIndex.

Returns: A return value < 0 indicates an error.

Attention: The calling instance must remove the returned object from memory.

◆ _insertDeletedObjID()

virtual int glo::IndexPool::_insertDeletedObjID	(	const std::string &	rsSchemaName,
		const ObjID &	rDeletedObjId )

protectedvirtual

Registers the passed object ID for a SchemaIndex as deleted.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	rDeletedObjId	The object ID to register as deleted.

Returns: A return value < 0 indicates an error.

◆ _insertFreeObjIDPos()

virtual int glo::IndexPool::_insertFreeObjIDPos	(	const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		std::streampos	Pos )

protectedvirtual

Registers a free table position in a TableObjIdIndex with passed class ID in a SchemaIndex.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	ulClassID	The class ID to identify the TableObjIdIndex.
[in]	Pos	The table position to be registered as 'free'.

Returns: A return value < 0 indicates an error.

◆ _insertObjIdPosTuple()

virtual int glo::IndexPool::_insertObjIdPosTuple	(	const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		const ObjIdPosTuple &	rIndexTuple )

protectedvirtual

Inserts an object ID with the table position into a TableObjIdIndex in a SchemaIndex.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	ulClassID	The class ID to identify the TableObjIdIndex.
[in]	rIndexTuple	The object ID to be inserted with the table position.

Returns: A return value < 0 indicates an error.

Attention: The SchemaIndex and the TableIndex must be created before (see: IndexPool::_makeTableObjIdIndex (...) ).

◆ _insertObjStrIdTuple()

virtual int glo::IndexPool::_insertObjStrIdTuple	(	const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		const std::string &	rsIndexName,
		const ObjStrIdTuple &	rIndexTuple )

protectedvirtual

Inserts a StringIndex into an ObjectStrIndex in a SchemaIndex.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") around the SchemaIndex.
[in]	ulClassID	The class ID to identify the ObjectStrIndex. identify.
[in]	rsIndexName	The name of the ObjectStrIndex. If e.g. in Scheme "[MyClassName.Index.IDX_MyIndexName]", then "IDX_MyIndexName".
[in]	rIndexTuple	The index to be inserted.

Returns: A return value < 0 indicates an error.

Attention: The SchemaIndex and the Object-StringIndex must be created before (see: IndexPool::_makeObjectStrIndex (...) ).

◆ _isObjIdDeleted()

virtual bool glo::IndexPool::_isObjIdDeleted	(	const std::string &	rsSchemaName,
		const ObjID &	rObjID ) const

protectedvirtual

Checks if an object ID in a schema index is marked as deleted.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	rObjID	The object ID to be checked.

Returns: Returns true if the passed object ID is marked as deleted, otherwise false.

◆ _isObjIdFree()

virtual int glo::IndexPool::_isObjIdFree	(	const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		const ObjID &	rObjID ) const

protectedvirtual

Checks an object ID whether it is already managed in a TableObjIdIndex in a SchemaIndex.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	ulClassID	The class ID to identify the TableObjIdIndex.
[in]	rObjID	The object ID to be checked.

Returns: Returns 1, if rObjID is not managed, otherwise 0.
. A return value < 0 indicates an error.

◆ _makeObjectStrIndex()

virtual int glo::IndexPool::_makeObjectStrIndex	(	const std::string &	rsSchemaName,
		const std::string &	rsTablePathName,
		unsigned long	ulClassID,
		const std::string &	rsIndexName,
		bool	bUnique )

protectedvirtual

Generates an ObjectStrIndex with a name, for a class with a certain class ID for a certain schema index. If the SchemaIndex does not exist yet, it will be generated too.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase").
[in]	rsTablePathName	The complete directory name necessary for the ObjectStrIndex in which the tables can be found, e.g. "C:/Path/Data/".
[in]	ulClassID	The class ID of the managed indexes.
[in]	rsIndexName	The index name. E.g., if "[MyClassName.Index.IDX_MyIndexName]" in the schema, then "IDX_MyIndexName".
[in]	bUnique	If true, then this is a unique index (each entry can only exist once), otherwise several identical entries are possible.

Returns: A return value < 0 indicates an error.

◆ _makeTableObjIdIndex()

virtual int glo::IndexPool::_makeTableObjIdIndex	(	const std::string &	rsSchemaName,
		const std::string &	rsTablePathName,
		unsigned long	ulClassID )

protectedvirtual

Generates a TableObjIdIndex for a class with a certain class ID for a certain schema index. If the SchemaIndex does not exist yet, it will be generated too.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase").
[in]	rsTablePathName	The complete directory name necessary for the TableObjIdIndex in which the tables can be found, e.g. "C:/Path/Data/".
[in]	ulClassID	The class ID of the managed indexes.

Returns: A return value < 0 indicates an error.

◆ _removeFreeObjIDPos()

virtual int glo::IndexPool::_removeFreeObjIDPos	(	const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		std::streampos	Pos )

protectedvirtual

Removes a free table position in a TableObjIdIndex with passed class ID in a SchemaIndex.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	ulClassID	The class ID to identify the TableObjIdIndex.
[in]	Pos	The remote table position.

Returns: A return value < 0 indicates an error.

◆ _removeSchemaIndex()

int glo::IndexPool::_removeSchemaIndex ( const std::string & rsSchemaName )

protected

Removes the SchemaIndex with passed schema name from m_SchemaIndexMap.

Parameters

[in] rsSchemaName The schema name (e.g. "MyGloBase") of the schema index to be removed.

Returns: A return value < 0 indicates an error.

◆ copyMapFrom()

void glo::IndexPool::copyMapFrom ( const IndexPool & rT )

protected

Removes all objects from m_SchemaIndexMap and from memory. Then all elements of the same list of the passed IndexPool are copied.
Is used by the operator=.

Parameters

[in] rT The IndexPool whose indexes are to be copied.

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

◆ deleteAllSchemaIndexValues()

void glo::IndexPool::deleteAllSchemaIndexValues ( )

Removes all objects from m_SchemaIndexMap and from memory

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

◆ getObjectStrIndexIterator()

virtual int glo::IndexPool::getObjectStrIndexIterator	(	ObjectStrIndexIterator *&	prObjectStrIndexIterators,
		const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		const std::string &	rsIndexName ) const

virtual

Returns the ObjectStrIndexIterator of a specific ObjectStrIndex of a specific database.

Parameters

[in,out]	prObjectStrIndexIterators	The iterator, if available.
[in]	rsSchemaName	The schema name (e.g. "MyGloBase") of the schemaIndex to be returned.
[in]	ulClassID	The class ID of the TableObjIdIndex.
[in]	rsIndexName	The name of the index to be checked. E.g., if "[MyClassName.Index.IDX_MyIndexName]" in the schema, then "IDX_MyIndexName".

Returns: A return value < 0 indicates an error.

Attention: The calling instance must remove the returned object from memory.

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

◆ getObjIdPosTuple()

virtual int glo::IndexPool::getObjIdPosTuple	(	ObjIdPosTuple *&	prRetVal,
		const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		const ObjID &	rObjID ) const

virtual

Returns an object ID with its table position from the TableObjIdIndex with passed class ID in a SchemaIndex with a specific object ID.

Parameters

[in,out]	prRetVal	If present, a pointer to a copy of the object ID with the table position.
[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	ulClassID	The class ID to identify the TableObjIdIndex.
[in]	rObjID	The object ID of the entry to be delivered.

Returns: A return value < 0 indicates an error.

Attention: The calling instance must remove the returned object from memory.

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

◆ getTableObjIdIndexIterator()

virtual int glo::IndexPool::getTableObjIdIndexIterator	(	TableObjIdIndexIterator *&	prTableIterators,
		const std::string &	rsSchemaName,
		unsigned long	ulClassID ) const

virtual

Returns the TableObjIdIndexIterator of a specified TableObjIdIndex of a specified database.

Parameters

[in,out]	prTableIterators	The iterator, if present.
[in]	rsSchemaName	The schema name (e.g. "MyGloBase") of the schemaIndex to be returned.
[in]	ulClassID	The class ID of the TableObjIdIndex.

Returns: A return value < 0 indicates an error.

Attention: The calling instance must remove the returned object from memory.

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

◆ insertDeletedObjID()

virtual int glo::IndexPool::insertDeletedObjID	(	const std::string &	rsSchemaName,
		const ObjID &	rDeletedObjId )

virtual

Registers the passed object ID for a SchemaIndex as deleted.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	rDeletedObjId	The object ID to register as deleted.

Returns: A return value < 0 indicates an error.

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

◆ insertObjIdPosTuple()

virtual int glo::IndexPool::insertObjIdPosTuple	(	const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		const ObjIdPosTuple &	rIndexTuple )

virtual

Inserts an object ID with the table position into a TableObjIdIndex in a SchemaIndex.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	ulClassID	The class ID to identify the TableObjIdIndex.
[in]	rIndexTuple	The object ID to be inserted with the table position.

Returns: A return value < 0 indicates an error.

Attention: The SchemaIndex and the TableIndex must be created before (see: IndexPool::_makeTableObjIdIndex (...) ).

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

◆ insertObjStrIdTuple()

virtual int glo::IndexPool::insertObjStrIdTuple	(	const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		const std::string &	rsIndexName,
		const ObjStrIdTuple &	rIndexTuple )

virtual

Inserts a StringIndex into an ObjectStrIndex in a SchemaIndex.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") around the SchemaIndex.
[in]	ulClassID	The class ID to identify the ObjectStrIndex. identify.
[in]	rsIndexName	The name of the ObjectStrIndex. If e.g. in Scheme "[MyClassName.Index.IDX_MyIndexName]", then "IDX_MyIndexName".
[in]	rIndexTuple	The index to be inserted.

Returns: A return value < 0 indicates an error.

Attention: The SchemaIndex and the Object-StringIndex must be created before (see: IndexPool::_makeObjectStrIndex (...) ).

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

◆ isIndexFree()

virtual int glo::IndexPool::isIndexFree	(	const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		const ObjID &	rObjID,
		const std::string &	rsIndexName,
		const std::string &	rsIndex ) const

virtual

Checks if an IndexString is still free for a certain ObjectStrIndex in a SchemaIndex.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	ulClassID	The class ID to identify the ObjectStrIndex.
[in]	rObjID	The object ID to identify the ObjectStrIndex.
[in]	rsIndexName	The name of the index to be checked. For example, if in the schema "[MyClassName.Index.IDX_MyIndexName]", then "IDX_MyIndexName".
[in]	rsIndex	The index to be checked.

Returns: Returns 1 if not assigned or 0 if already assigned.
A return value < 0 indicates an error.

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

◆ isObjIdDeleted()

virtual bool glo::IndexPool::isObjIdDeleted	(	const std::string &	rsSchemaName,
		const ObjID &	rObjID ) const

virtual

Checks if an object ID in a schema index is marked as deleted.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	rObjID	The object ID to be checked.

Returns: Returns true if the passed object ID is marked as deleted, otherwise false.

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

◆ isObjIdFree()

virtual int glo::IndexPool::isObjIdFree	(	const std::string &	rsSchemaName,
		const ObjID &	rObjID ) const

virtual

Checks an object ID whether it is already managed in a TableObjIdIndex in a SchemaIndex.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	rObjID	The object ID to be checked.

Returns: Returns 1, if rObjID is not managed, otherwise 0.
. A return value < 0 indicates an error.

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

◆ operator=()

IndexPool & glo::IndexPool::operator= ( const IndexPool & rT )

Assignment operator.

Parameters

[in] rT The data is transferred from this object.

◆ releaseAllCommunicatorObjStrIdTuples()

int glo::IndexPool::releaseAllCommunicatorObjStrIdTuples	(	const std::string &	rsSchemaName,
		const NUM_PTR	ipReservingComunicator )

Releases all unique string indexes in an ObjectStrIndex in a SchemaIndex that were rereserved by the passed communicator.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	ipReservingComunicator	The address of the communicator that reserved the index, cast to NUM_PTR.

Returns: A return < 0 indicates an error.

Exceptions

eut::ErrorNException If ipReservingComunicator == 0, an exception is thrown.

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

See also: IndexPool::reserveObjStrIdTuple (...)

◆ releaseObjStrIdTuple()

int glo::IndexPool::releaseObjStrIdTuple	(	const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		const std::string &	rsIndexName,
		const NUM_PTR	ipReservingComunicatorTrx )

Releases a StringIndex into an ObjectStrIndex in a SchemaIndex if it is a unique index.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	ulClassID	The class ID to identify the ObjectStrIndex.
[in]	rsIndexName	The name of the ObjectStrIndex. For example, if in the schema "[MyClassName.Index.IDX_MyIndexName]", then "IDX_MyIndexName".
[in]	ipReservingComunicatorTrx	The transaction step for which the reservation was requested.

Returns: A return < 0 indicates an error.

Exceptions

eut::ErrorNException If ipReservingComunicatorTrx == 0, an exception is thrown.

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

See also: IndexPool::reserveObjStrIdTuple (...)

◆ removeObjId()

virtual int glo::IndexPool::removeObjId	(	const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		const ObjID &	rObjID )

virtual

Removes the entry with passed object ID from the TableObjIdIndex with passed class ID in a SchemaIndex.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	ulClassID	The class ID to identify the TableObjIdIndex.
[in]	rObjID	The object ID to be removed.

Returns: A return value < 0 indicates an error.

Attention: The SchemaIndex and the TableObjIdIndex must be created before (see: IndexPool::_makeTableObjIdIndex (...) ).

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

◆ removeObjStrIdTuple()

virtual int glo::IndexPool::removeObjStrIdTuple	(	const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		const std::string &	rsIndexName,
		const ObjID &	rObjID,
		NUM_PTR	ipReservingComunicatorTrx = 0 )

virtual

Removes string index of an object with passed name from the ObjectStrIndex with passed class ID in a SchemaIndex

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	ulClassID	The class ID to identify the ObjectStrIndex.
[in]	rsIndexName	The name of the ObjectStrIndex. For example, if in the schema "[MyClassName.Index.IDX_MyIndexName]", then "IDX_MyIndexName".
[in]	rObjID	The object ID of the index to be removed.
[in]	ipReservingComunicatorTrx	The address, casted to NUM_PTR, of a Communicator in whose transaction the index was reserved, if applicable. If this is set, only a reserved index is deleted.

Returns: A return value < 0 indicates an error.

Attention: The SchemaIndex and the Object-StringIndex must be created before (see: IndexPool::_makeObjectStrIndex (...) ).

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

◆ reserveObjStrIdTuple()

int glo::IndexPool::reserveObjStrIdTuple	(	const std::string &	rsSchemaName,
		unsigned long	ulClassID,
		const std::string &	rsIndexName,
		const ObjStrIdTuple &	rIndexTuple )

Reserves a StringIndex into an ObjectStrIndex in a SchemaIndex if it is a unique index.

Parameters

[in]	rsSchemaName	The schema name (e.g. "MyGloBase") to identify the SchemaIndex.
[in]	ulClassID	The class ID to identify the ObjectStrIndex.
[in]	rsIndexName	The name of the ObjectStrIndex. For example, if in the schema "[MyClassName.Index.IDX_MyIndexName]", then "IDX_MyIndexName".
[in]	rIndexTuple	The index to be reserved.

Returns: A return value < 0 indicates an error.

Exceptions

eut::ErrorNException If ObjStrIdTuple::m_ipReservingComunicatorTrx is not set in the parameter rIndexTuple, an exception is thrown.

Note: This method locks further calls of methods of this class, which are protected with m_LocalCriticalSection.

See also: IndexPool::releaseObjStrIdTuple (...)

Member Data Documentation

◆ m_LocalCriticalSection

eut::CriticalSection glo::IndexPool::m_LocalCriticalSection

protected

To ensure thread-safe access to the elements of the IndexPool and subclasses, access is synchronized via this local CriticalSection.

◆ m_SchemaIndexMap

std::map< std::string, SchemaIndex * , std::less< std::string > > glo::IndexPool::m_SchemaIndexMap

protected

For each open database there is a SchemaIndex.

The documentation for this class was generated from the following file:

GloIndexPool.h

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ IndexPool() [1/2]

◆ IndexPool() [2/2]

◆ ~IndexPool()

Member Function Documentation

◆ _deleteAllSchemaIndexValues()

◆ _existsSchemaIndex()

◆ _getFreeObjIDPos()

◆ _getObjectStrIndex()

◆ _getObjectStrIndexIterator()

◆ _getObjIdPosTuple()

◆ _getSchemaIndex()

◆ _getTableObjIdIndex()

◆ _getTableObjIdIndexIterator()

◆ _insertDeletedObjID()

◆ _insertFreeObjIDPos()

◆ _insertObjIdPosTuple()

◆ _insertObjStrIdTuple()

◆ _isObjIdDeleted()

◆ _isObjIdFree()

◆ _makeObjectStrIndex()

◆ _makeTableObjIdIndex()

◆ _removeFreeObjIDPos()

◆ _removeSchemaIndex()

◆ copyMapFrom()

◆ deleteAllSchemaIndexValues()

◆ getObjectStrIndexIterator()

◆ getObjIdPosTuple()

◆ getTableObjIdIndexIterator()

◆ insertDeletedObjID()

◆ insertObjIdPosTuple()

◆ insertObjStrIdTuple()

◆ isIndexFree()

◆ isObjIdDeleted()

◆ isObjIdFree()

◆ operator=()

◆ releaseAllCommunicatorObjStrIdTuples()

◆ releaseObjStrIdTuple()

◆ removeObjId()

◆ removeObjStrIdTuple()

◆ reserveObjStrIdTuple()

Member Data Documentation

◆ m_LocalCriticalSection

◆ m_SchemaIndexMap
