Is the abstract base class of pointer sets and lists. More...

#include <GloPointerLot.h>

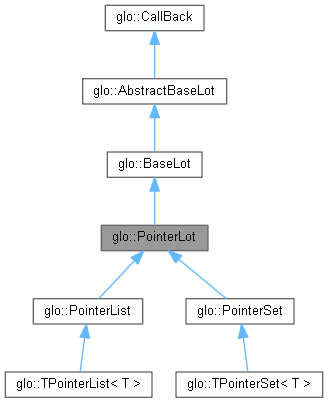

Inheritance diagram for glo::PointerLot:

[legend]

Public Member Functions
	PointerLot ()

	PointerLot (Base &rBase)

virtual	~PointerLot ()

virtual Base *	getBase () const override

virtual int	getObjID (ObjID &rObjID, EnSeekMode eMode) override

virtual int	getPers (BasePersistent *&prRetVal, EnSeekMode eMode) override=0

virtual int	insertPersBefore (BasePersistent pNewObj, const BasePersistent pObject) override

virtual int	removePers (BasePersistent *pObject) override=0

virtual int	setBase (Base *pBase) override


virtual bool	inLot (const ObjID &object) const override=0
	Checks if passed object is referenced in the container.

virtual bool	inLot (const BasePersistent &object) const override
	Checks if passed object is referenced in the container.

virtual bool	inLot (const std::shared_ptr< BasePersistent > object) const override
	Checks if passed object is referenced in the container.

Public Member Functions inherited from glo::BaseLot
	BaseLot ()

virtual	~BaseLot ()

virtual int	appendPers (BasePersistent *pNewObj)

virtual int	appendPers (std::shared_ptr< BasePersistent > spNewObj)

virtual void	clear ()=0

virtual int	getPers (std::shared_ptr< BasePersistent > &rRetVal, EnSeekMode eMode)

virtual int	getTypeAsString (std::string &rsTypeName) override

virtual int	insertPers (BasePersistent *pNewObj)

virtual int	insertPers (std::shared_ptr< BasePersistent > spNewObj)

virtual int	insertPersBefore (std::shared_ptr< BasePersistent > spNewObj, const std::shared_ptr< BasePersistent > spObject)

virtual int	lock (const LockSpecification &rLockSpecification)

virtual int	lock (EnLockMode eLockMode=LK_DELETEvWRITE, EnDeepMode eDeepMode=DM_SHALLOW)

virtual int	removePers (std::shared_ptr< BasePersistent > spObject)

virtual int	setWatch (const WatchSpecification &rWatchSpec)

virtual int	setWatch (TdWatchNotifyMode ulWatchMode, EnDeepMode eDeepMode, CallBack *pCallBack=0)

virtual int	unlock (const LockSpecification &rLockSpecification)

virtual int	unlock (EnLockMode eLockMode=LK_DELETEvWRITE, EnDeepMode eDeepMode=DM_SHALLOW)

virtual int	unsetWatch (const WatchSpecification &rWatchSpec)

virtual int	unsetWatch (TdWatchNotifyMode ulWatchMode, EnDeepMode eDeepMode, CallBack *pCallBack=0)

Public Member Functions inherited from glo::AbstractBaseLot
	AbstractBaseLot ()

virtual	~AbstractBaseLot ()

virtual int	getPersistent (BasePersistent *&prRetVal, const ObjID &prObjID)=0

virtual int	getPersistent (std::shared_ptr< BasePersistent > &rRetVal, const ObjID &rObjID)

virtual int	setCurrentObject (const BasePersistent &rObject)

virtual int	setCurrentObject (const ObjID &rObjID)=0

virtual int	setPosition (std::size_t nPosition)=0

virtual std::size_t	size () const =0

Public Member Functions inherited from glo::CallBack
	CallBack ()

virtual	~CallBack ()

virtual void	notify (NotifyNote &rNote)

CallBack &	operator= (const CallBack &rT)

bool	operator== (const CallBack &rT) const
	Comparison operator, all attributes are compared.

bool	operator!= (const CallBack &rT) const
	Comparison operator, all attributes are compared.

Private Member Functions
	PointerLot (const PointerLot &)

PointerLot &	operator= (const PointerLot &)

Private Attributes
Base *	m_pBase

Additional Inherited Members
Public Attributes inherited from glo::CallBack
std::string	m_strDebugInfo

Protected Member Functions inherited from glo::BaseLot
int	lockObjID (const ObjID &rObjID)

int	setWatchObjID (const ObjID &rObjID)

int	takeOverBase (const BasePersistent *pObj)

int	takeOverBase (const Reference *pRef)

int	unlockObjID (const ObjID &rObjID)

int	unsetWatchObjID (const ObjID &rObjID)

Protected Member Functions inherited from glo::CallBack
	CallBack (const CallBack &rT)

void	deinit ()

void	init ()

Protected Attributes inherited from glo::BaseLot
unsigned long	m_ulClassID

Detailed Description

Is the abstract base class of pointer sets and lists.

Copyright: © 2010 Helmut Jakoby

Author: Helmut Jakoby

Constructor & Destructor Documentation

◆ PointerLot() [1/3]

glo::PointerLot::PointerLot ( )

Standard constructor.

Referenced by PointerLot(), and operator=().

◆ PointerLot() [2/3]

glo::PointerLot::PointerLot ( Base & rBase )

Constructor with parameter passing.

Parameters

[in] rBase The database is passed.

◆ ~PointerLot()

virtual glo::PointerLot::~PointerLot ( )

virtual

Destructor.

◆ PointerLot() [3/3]

glo::PointerLot::PointerLot ( const PointerLot & )

private

The copy constructor is not available.

References PointerLot().

Member Function Documentation

◆ getBase()

virtual Base * glo::PointerLot::getBase ( ) const

overridevirtual

Returns: Returns pointers to the database.

Attention: The object returned must not be removed from memory by the calling instance.

See also: setBase(Base*)

Implements glo::BaseLot.

◆ getObjID()

virtual int glo::PointerLot::getObjID	(	ObjID &	rObjID,
		EnSeekMode	eMode )

overridevirtual

Returns an object id from the container in relation to eMode.

Parameters

[in,out]	rObjID	The object ID if found.
[in]	eMode	The seek mode.

Parameter examples:

glo::START = returns first element
glo::END = returns last element
glo::CURRENT = returns current element
glo::NEXT = returns next element
glo::PREVIOUS = returns previous element

Returns: A return < 0 indicates an error. A return == ERR_RANGE indicates the end of the AllSet.

Implements glo::BaseLot.

◆ getPers()

virtual int glo::PointerLot::getPers	(	BasePersistent *&	prRetVal,
		EnSeekMode	eMode )

overridepure virtual

Returns an object from the container in relation to eMode.

Parameters

[in,out]	prRetVal	If no error, the fetched object.
[in]	eMode	The seek mode.

Parameter examples:

glo::START = returns first element
glo::END = returns last element
glo::CURRENT = returns current element
glo::NEXT = returns next element
glo::PREVIOUS = returns previous element

Returns: A return < 0 indicates an error. A return == ERR_RANGE indicates the end of the AllSet.

Attention: If prRetVal is valid, this object must be removed from memory by the calling instance.

Implements glo::BaseLot.

Implemented in glo::PointerList, and glo::PointerSet.

◆ inLot() [1/3]

virtual bool glo::PointerLot::inLot ( const BasePersistent & object ) const

overridevirtual

Checks if passed object is referenced in the container.

Parameters

[in] object The object to check.

Returns: If true, the passed object will be referenced in the container.

Reimplemented from glo::BaseLot.

Reimplemented in glo::PointerList, and glo::PointerSet.

◆ inLot() [2/3]

virtual bool glo::PointerLot::inLot ( const ObjID & object ) const

overridepure virtual

Checks if passed object is referenced in the container.

Parameters

[in] object The object to check.

Returns: If true, the passed object will be referenced in the container.

Implements glo::BaseLot.

Implemented in glo::PointerList, and glo::PointerSet.

◆ inLot() [3/3]

virtual bool glo::PointerLot::inLot ( const std::shared_ptr< BasePersistent > object ) const

overridevirtual

Checks if passed object is referenced in the container.

Parameters

[in] object The object to check.

Returns: If true, the passed object will be referenced in the container.

Reimplemented from glo::BaseLot.

Reimplemented in glo::PointerList, and glo::PointerSet.

◆ insertPersBefore()

virtual int glo::PointerLot::insertPersBefore	(	BasePersistent *	pNewObj,
		const BasePersistent *	pObject )

overridevirtual

Inserts a persistent object before another object in the container.

If the container is locked, the object to be inserted is locked with the lock mode of the container.

If the container is monitored, the object to be inserted is also monitored with the monitoring mode of the container.

Parameters

[in]	pNewObj	The persistent object to be inserted.
[in]	pObject	The subsequent persistent object.

Returns: A return value < 0 indicates an error.

Reimplemented from glo::BaseLot.

Reimplemented in glo::PointerSet.

◆ operator=()

PointerLot & glo::PointerLot::operator= ( const PointerLot & )

inlineprivate

The assignment operator is not available.

References PointerLot().

◆ removePers()

virtual int glo::PointerLot::removePers ( BasePersistent * pObject )

overridepure virtual

Removes persistent object from the container.

If the container is locked, the object to be removed is released with the lock mode of the container.

If the container is monitored, the monitoring of the object to be removed is ended with the monitoring mode of the container.

Parameters

[in] pObject The persistent object to be removed.

Returns: A return value < 0 indicates an error.

Implements glo::BaseLot.

Implemented in glo::PointerList, and glo::PointerSet.

◆ setBase()

virtual int glo::PointerLot::setBase ( Base * pBase )

overridevirtual

Sets the database in which the container objects are stored. If a database is already referenced and it does not match the database passed, a eut::ErrorNException is thrown.

Parameters

[in] pBase The database.

Returns: If return value < 0, then an error has occurred.

Attention: The database remains the responsibility of the calling entity. For example, if the database is removed from memory before Allset, for whatever reason, this method must first be called with nullptr.

Implements glo::BaseLot.

Member Data Documentation

◆ m_pBase

Base* glo::PointerLot::m_pBase

private

Pointer container belong to a database.

The documentation for this class was generated from the following file:

GloPointerLot.h
