Class that communicates with a Server via a SOCKET and delivers its receive result of type Message to its "owner", which must be a Client. You can use the method ClientReceiver::acceptMessage(AbstractMessage * pTcpMessage) to change the delivery to the "owner" in subclasses by overwriting the method. More...

#include <TcpClientReceiver.h>

Inheritance diagram for tcp::ClientReceiver:

[legend]

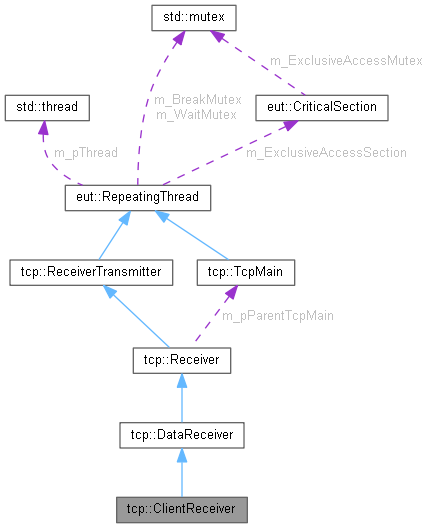

Collaboration diagram for tcp::ClientReceiver:

[legend]

Public Member Functions
	ClientReceiver (Client *pParent, SOCKET Socket, unsigned int uiDataSize)

virtual	~ClientReceiver ()

virtual void	cancel () override

bool	connected () const

Public Member Functions inherited from tcp::DataReceiver
	DataReceiver (TcpMain *pParent, SOCKET Socket, unsigned int uiDataSize)

virtual	~DataReceiver ()

void	setDataSize (unsigned int uiDataSize)

unsigned int	getDataSize () const

Public Member Functions inherited from tcp::Receiver
	Receiver (TcpMain *pParent, SOCKET Socket)

virtual	~Receiver ()

Public Member Functions inherited from tcp::ReceiverTransmitter
	ReceiverTransmitter (SOCKET Socket)

virtual	~ReceiverTransmitter ()

virtual void	takeABreak () override

virtual void	finishBreak () override

int	getPeerName (std::string &rstrIPAdress, unsigned int &ruiPort) const

SOCKET	Socket () const

Public Member Functions inherited from eut::RepeatingThread
	RepeatingThread ()

virtual	~RepeatingThread ()

virtual int	start ()

bool	testCancel ()

RepeatingThread::STATUS	status () const

bool	isInExclusiveAccess () const

void	setExclusiveAccess ()

void	unsetExclusiveAccess ()

int	getBreakCounter ()

void	waitForInput ()

void	signalInput ()

Protected Member Functions
	ClientReceiver ()

	ClientReceiver (SOCKET)

	ClientReceiver (TcpMain *, SOCKET)

	ClientReceiver (TcpMain *, SOCKET, unsigned int)

virtual void	work () override

virtual int	acceptMessage (AbstractMessage *pTcpMessage) override

virtual void	generateNewTcpMessage (AbstractMessage &prTcpMessage, char pszTransmitData, unsigned int uiTransmitDataSize) const override

virtual void	generateNewTcpMessage (AbstractMessage &prTcpMessage, char pszRawMsg, unsigned int uiRawMsgSize, unsigned int uiMessageID, int iActionCode, const std::string &rstrInfo) const override

Protected Member Functions inherited from tcp::DataReceiver
	DataReceiver ()

	DataReceiver (SOCKET)

	DataReceiver (TcpMain *, SOCKET)

void	initStreamData ()

int	processReceivedData (char *pszSentBuffer, unsigned int t_uiSentBufferSize)

Protected Member Functions inherited from tcp::Receiver
	Receiver ()

	Receiver (SOCKET Socket)

Protected Member Functions inherited from tcp::ReceiverTransmitter
	ReceiverTransmitter ()

Protected Member Functions inherited from eut::RepeatingThread
void	threadWork ()

void	setStatus (STATUS eStatus)

STATUS	getStatus ()

void	toOrder (ORDER eOrder)

ORDER	getOrder ()

Private Member Functions
	ClientReceiver (const ClientReceiver &)

ClientReceiver &	operator= (const ClientReceiver &)

Private Attributes
bool	m_bHaveConnection

Additional Inherited Members
Public Types inherited from eut::RepeatingThread
enum	EuTHREADERROR { EuTHREAD_ERR_NO_THREAD = -10301 , EuTHREAD_ERR_THREAD_ALREADY_WORKING = -10302 , EuTHREAD_ERR_THREAD_BREAK_COUNT_LESS_THAN_ZERO = -10303 , EuTHREAD_ERR_UNKNOWN = -10400 }
	Error range = -10301 to -10400 More...

enum	STATUS { eAT_THE_START , eWORKING , ePAUSING , eENDING , eCOMPLETED }

enum	ORDER { eUNDEFINED , eDO_WORK , eEXIT }

Protected Attributes inherited from tcp::DataReceiver
unsigned int	m_uiDataSize

unsigned int	m_uiStreamSize

unsigned int	m_uiStreamPosistion

char *	m_szStreamBuffer

char *	m_pszSentBuffer

Protected Attributes inherited from tcp::Receiver
TcpMain *	m_pParentTcpMain

Protected Attributes inherited from tcp::ReceiverTransmitter
SOCKET	m_Socket

Detailed Description

Class that communicates with a Server via a SOCKET and delivers its receive result of type Message to its "owner", which must be a Client. You can use the method ClientReceiver::acceptMessage(AbstractMessage * pTcpMessage) to change the delivery to the "owner" in subclasses by overwriting the method.

Copyright: © 2010 Helmut Jakoby

Author: Helmut Jakoby

Constructor & Destructor Documentation

◆ ClientReceiver() [1/6]

tcp::ClientReceiver::ClientReceiver ( )

protected

This constructor is not available.

◆ ClientReceiver() [2/6]

tcp::ClientReceiver::ClientReceiver ( SOCKET )

protected

This constructor is not available.

◆ ClientReceiver() [3/6]

tcp::ClientReceiver::ClientReceiver	(	TcpMain *	,
		SOCKET	)

protected

This constructor is not available.

◆ ClientReceiver() [4/6]

tcp::ClientReceiver::ClientReceiver	(	TcpMain *	,
		SOCKET	,
		unsigned int	)

protected

This constructor is not available.

◆ ClientReceiver() [5/6]

tcp::ClientReceiver::ClientReceiver	(	Client *	pParent,
		SOCKET	Socket,
		unsigned int	uiDataSize )

Constructor with parameter passing.

Parameters

[in]	pParent	The owning parent object.
[in]	Socket	The socket through which communication takes place.
[in]	uiDataSize	The package size.

Exceptions

eut::ErrorNException An exception is thrown if an error occurs.

◆ ~ClientReceiver()

virtual tcp::ClientReceiver::~ClientReceiver ( )

virtual

Destructor.

◆ ClientReceiver() [6/6]

tcp::ClientReceiver::ClientReceiver ( const ClientReceiver & )

private

The copy constructor is not available.

Member Function Documentation

◆ acceptMessage()

virtual int tcp::ClientReceiver::acceptMessage ( AbstractMessage * pTcpMessage )

overrideprotectedvirtual

Forwards the transferred message to its Client, which also deletes the message after processing.
The Client can then process these further in subclasses if necessary. If processing in a subclass of ClientReceiver is required, this method can also be overwritten.

Parameters

[in] pTcpMessage The received message.

Returns: A return < 0 indicates an error.

Attention: The passed object must not be removed from memory by the calling instance.

See also: Message

Implements tcp::DataReceiver.

◆ cancel()

virtual void tcp::ClientReceiver::cancel ( )

overridevirtual

Terminates the thread.

Reimplemented from eut::RepeatingThread.

◆ connected()

bool tcp::ClientReceiver::connected ( ) const

Is connected?

Returns: If true, the client Receiver has a SOCKET.

◆ generateNewTcpMessage() [1/2]

virtual void tcp::ClientReceiver::generateNewTcpMessage	(	AbstractMessage *&	prTcpMessage,
		char *	pszRawMsg,
		unsigned int	uiRawMsgSize,
		unsigned int	uiMessageID,
		int	iActionCode,
		const std::string &	rstrInfo ) const

overrideprotectedvirtual

Generates a Message from transferred parameters.

Parameters

[in,out]	prTcpMessage	Pointer to newly generated Message. This object takes over the removal of the pszRawMsg from the memory.
[in]	pszRawMsg	The message data.
[in]	uiRawMsgSize	The size or length of the message data.
[in]	uiMessageID	A unique ID.
[in]	iActionCode	The ActionCode.
[in]	rstrInfo	An additional text info

Attention: The supplied object must be removed from memory by the calling instance.

Exceptions

eut::ErrorNException If no Message can be instantiated from the parameters, an exception is thrown.

See also: Message

Implements tcp::DataReceiver.

◆ generateNewTcpMessage() [2/2]

virtual void tcp::ClientReceiver::generateNewTcpMessage	(	AbstractMessage *&	prTcpMessage,
		char *	pszTransmitData,
		unsigned int	uiTransmitDataSize ) const

overrideprotectedvirtual

Generates a Message from the transferred data buffer and its size.

Parameters

[in,out]	prTcpMessage	Pointer to newly generated Message. This object takes care of removing the pszTransmitData from the memory.
[in]	pszTransmitData	The data buffer including all required information.
[in]	uiTransmitDataSize	The size or length of the data buffer to be sent.

Attention: The supplied object must be removed from memory by the calling instance.

Exceptions

eut::ErrorNException If no Message can be instantiated from the data (because, for example, the header is incorrect), an exception is thrown.

See also: Message

Implements tcp::DataReceiver.

◆ operator=()

ClientReceiver & tcp::ClientReceiver::operator= ( const ClientReceiver & )

private

The assignment operator is not available.

◆ work()

virtual void tcp::ClientReceiver::work ( )

overrideprotectedvirtual

Accepts streams from its socket (is blocked until received), turns the data into a Message which is further processed in ClientReceiver::acceptMessage(AbstractMessage * pTcpMessage).

Implements eut::RepeatingThread.

Member Data Documentation

◆ m_bHaveConnection

bool tcp::ClientReceiver::m_bHaveConnection

private

Auxiliary variable to indicate whether a connection is already established.

The documentation for this class was generated from the following file:

TcpClientReceiver.h
