Superclass for all TcpReceiver that communicate via a SOCKET and deliver their receive result, a type derived from AbstractMessage, to their "owner".
Since a message can be composed (it is a stream, which may be delivered in chunks), a buffer is created here, which contains data as long as the stream is not complete. More...

#include <TcpDataReceiver.h>

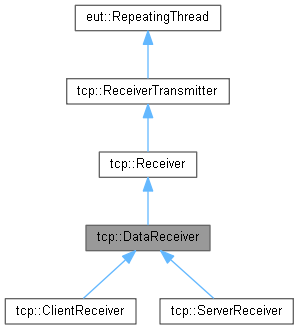

Inheritance diagram for tcp::DataReceiver:

[legend]

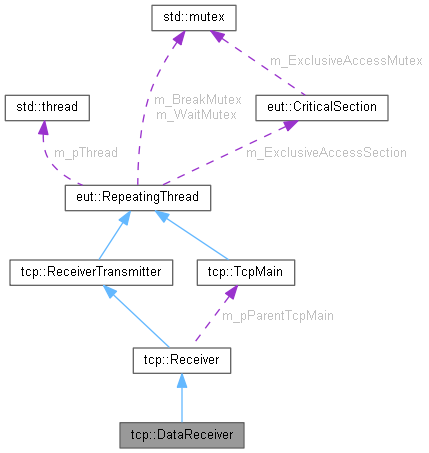

Collaboration diagram for tcp::DataReceiver:

[legend]

Public Member Functions
	DataReceiver (TcpMain *pParent, SOCKET Socket, unsigned int uiDataSize)

virtual	~DataReceiver ()

void	setDataSize (unsigned int uiDataSize)

unsigned int	getDataSize () const

Public Member Functions inherited from tcp::Receiver
	Receiver (TcpMain *pParent, SOCKET Socket)

virtual	~Receiver ()

Public Member Functions inherited from tcp::ReceiverTransmitter
	ReceiverTransmitter (SOCKET Socket)

virtual	~ReceiverTransmitter ()

virtual void	takeABreak () override

virtual void	finishBreak () override

int	getPeerName (std::string &rstrIPAdress, unsigned int &ruiPort) const

SOCKET	Socket () const

Public Member Functions inherited from eut::RepeatingThread
	RepeatingThread ()

virtual	~RepeatingThread ()

virtual int	start ()

virtual void	cancel ()

bool	testCancel ()

RepeatingThread::STATUS	status () const

bool	isInExclusiveAccess () const

void	setExclusiveAccess ()

void	unsetExclusiveAccess ()

int	getBreakCounter ()

void	waitForInput ()

void	signalInput ()

Protected Member Functions
	DataReceiver ()

	DataReceiver (SOCKET)

	DataReceiver (TcpMain *, SOCKET)

void	initStreamData ()

int	processReceivedData (char *pszSentBuffer, unsigned int t_uiSentBufferSize)

virtual int	acceptMessage (AbstractMessage *)=0

virtual void	generateNewTcpMessage (AbstractMessage &prTcpAbstractMessage, char pszTransmitData, unsigned int uiTransmitDataSize) const =0

virtual void	generateNewTcpMessage (AbstractMessage &prTcpAbstractMessage, char pszRawMsg, unsigned int uiRawMsgSize, unsigned int uiMessageID, int iActionCode, const std::string &rstrInfo) const =0

Protected Member Functions inherited from tcp::Receiver
	Receiver ()

	Receiver (SOCKET Socket)

Protected Member Functions inherited from tcp::ReceiverTransmitter
	ReceiverTransmitter ()

Protected Member Functions inherited from eut::RepeatingThread
void	threadWork ()

void	setStatus (STATUS eStatus)

STATUS	getStatus ()

void	toOrder (ORDER eOrder)

ORDER	getOrder ()

virtual void	work ()=0

Protected Attributes
unsigned int	m_uiDataSize

unsigned int	m_uiStreamSize

unsigned int	m_uiStreamPosistion

char *	m_szStreamBuffer

char *	m_pszSentBuffer

Protected Attributes inherited from tcp::Receiver
TcpMain *	m_pParentTcpMain

Protected Attributes inherited from tcp::ReceiverTransmitter
SOCKET	m_Socket

Private Member Functions
	DataReceiver (const DataReceiver &)

DataReceiver &	operator= (const DataReceiver &)

Additional Inherited Members
Public Types inherited from eut::RepeatingThread
enum	EuTHREADERROR { EuTHREAD_ERR_NO_THREAD = -10301 , EuTHREAD_ERR_THREAD_ALREADY_WORKING = -10302 , EuTHREAD_ERR_THREAD_BREAK_COUNT_LESS_THAN_ZERO = -10303 , EuTHREAD_ERR_UNKNOWN = -10400 }
	Error range = -10301 to -10400 More...

enum	STATUS { eAT_THE_START , eWORKING , ePAUSING , eENDING , eCOMPLETED }

enum	ORDER { eUNDEFINED , eDO_WORK , eEXIT }

Detailed Description

Superclass for all TcpReceiver that communicate via a SOCKET and deliver their receive result, a type derived from AbstractMessage, to their "owner".
Since a message can be composed (it is a stream, which may be delivered in chunks), a buffer is created here, which contains data as long as the stream is not complete.

Copyright: © 2010 Helmut Jakoby

Author: Helmut Jakoby

Constructor & Destructor Documentation

◆ DataReceiver() [1/5]

tcp::DataReceiver::DataReceiver ( )

protected

This constructor is not available.

◆ DataReceiver() [2/5]

tcp::DataReceiver::DataReceiver ( SOCKET )

protected

This constructor is not available.

◆ DataReceiver() [3/5]

tcp::DataReceiver::DataReceiver	(	TcpMain *	,
		SOCKET	)

protected

This constructor is not available.

◆ DataReceiver() [4/5]

tcp::DataReceiver::DataReceiver	(	TcpMain *	pParent,
		SOCKET	Socket,
		unsigned int	uiDataSize )

Constructor with parameter passing.

Parameters

[in]	pParent	The owning parent object.
[in]	Socket	The socket through which communication takes place.
[in]	uiDataSize	The package size.

Exceptions

eut::ErrorNException An exception is thrown if an error occurs.

◆ ~DataReceiver()

virtual tcp::DataReceiver::~DataReceiver ( )

virtual

Destructor. It cleans up the individual buffers.

◆ DataReceiver() [5/5]

tcp::DataReceiver::DataReceiver ( const DataReceiver & )

private

The copy constructor is not available.

Member Function Documentation

◆ acceptMessage()

virtual int tcp::DataReceiver::acceptMessage ( AbstractMessage * )

protectedpure virtual

In subclasses, forwards the passed message to its "owner" or edits it itself. The message must be deleted in any case.

Returns: A return < 0 indicates an error.

Attention: The passed object must not be removed from memory by the calling instance.

See also: AbstractMessage, Message, ServerAcceptMessage, ServerMessage

Implemented in tcp::ClientReceiver, and tcp::ServerReceiver.

◆ generateNewTcpMessage() [1/2]

virtual void tcp::DataReceiver::generateNewTcpMessage	(	AbstractMessage *&	prTcpAbstractMessage,
		char *	pszRawMsg,
		unsigned int	uiRawMsgSize,
		unsigned int	uiMessageID,
		int	iActionCode,
		const std::string &	rstrInfo ) const

protectedpure virtual

Generates in subclasses a message derived from AbstractMessage from passed parameters.

Parameters

[in,out]	prTcpAbstractMessage	Pointer to newly generated Message. This object takes over the removal of the pszRawMsg from the memory.
[in]	pszRawMsg	The message data.
[in]	uiRawMsgSize	The size or length of the message data.
[in]	uiMessageID	A unique ID.
[in]	iActionCode	The ActionCode.
[in]	rstrInfo	An additional text info

Attention: The supplied object must be removed from memory by the calling instance.

See also: AbstractMessage, Message, ServerAcceptMessage, ServerMessage

Implemented in tcp::ClientReceiver, and tcp::ServerReceiver.

◆ generateNewTcpMessage() [2/2]

virtual void tcp::DataReceiver::generateNewTcpMessage	(	AbstractMessage *&	prTcpAbstractMessage,
		char *	pszTransmitData,
		unsigned int	uiTransmitDataSize ) const

protectedpure virtual

Generates in subclasses a message derived from AbstractMessage from the passed data buffer and its size.

Parameters

[in,out]	prTcpAbstractMessage	Pointer to newly generated Message. This object takes care of removing the pszTransmitData from the memory.
[in]	pszTransmitData	The data buffer including all required information.
[in]	uiTransmitDataSize	The size or length of the data buffer to be sent.

Attention: The supplied object must be removed from memory by the calling instance.

See also: AbstractMessage, Message, ServerAcceptMessage, ServerMessage

Implemented in tcp::ClientReceiver, and tcp::ServerReceiver.

◆ getDataSize()

unsigned int tcp::DataReceiver::getDataSize ( ) const

Returns the packet size.

Returns: , see above.

◆ initStreamData()

void tcp::DataReceiver::initStreamData ( )

protected

Initializes the stream data (sets everything to zero).

◆ operator=()

DataReceiver & tcp::DataReceiver::operator= ( const DataReceiver & )

private

The assignment operator is not available.

◆ processReceivedData()

int tcp::DataReceiver::processReceivedData	(	char *	pszSentBuffer,
		unsigned int	t_uiSentBufferSize )

protected

Processes the received data and constructs a message from it (derived from AbstractMessage by calling the method generateNewTcpMessage (...) ) and passes it on to its owner via acceptMessage (...) .

Parameters

[in]	pszSentBuffer	The received buffer
[in]	t_uiSentBufferSize	The size of the buffer received

Returns: A return < 0 indicates an error.

◆ setDataSize()

void tcp::DataReceiver::setDataSize ( unsigned int uiDataSize )

Sets the packet size.

Parameters

[in] uiDataSize The package size.

Member Data Documentation

◆ m_pszSentBuffer

char* tcp::DataReceiver::m_pszSentBuffer

protected

The received buffer in one receive step. Is transferred to the m_szStreamBuffer. If the size of the expected data packet is not yet reached, the next received buffer is appended to m_szStreamBuffer.

◆ m_szStreamBuffer

char* tcp::DataReceiver::m_szStreamBuffer

protected

The received buffer, possibly composed of several sent m_pszSentBuffer.

See also: m_pszSentBuffer

◆ m_uiDataSize

unsigned int tcp::DataReceiver::m_uiDataSize

protected

The data packet size.

◆ m_uiStreamPosistion

unsigned int tcp::DataReceiver::m_uiStreamPosistion

protected

The current stream position.

◆ m_uiStreamSize

unsigned int tcp::DataReceiver::m_uiStreamSize

protected

The stream size (from the header).

The documentation for this class was generated from the following file:

TcpDataReceiver.h
