A simple TCP client class, which should learn its know-how in the derived classes. More...

#include <TcpClient.h>

Inheritance diagram for tcp::Client:

[legend]

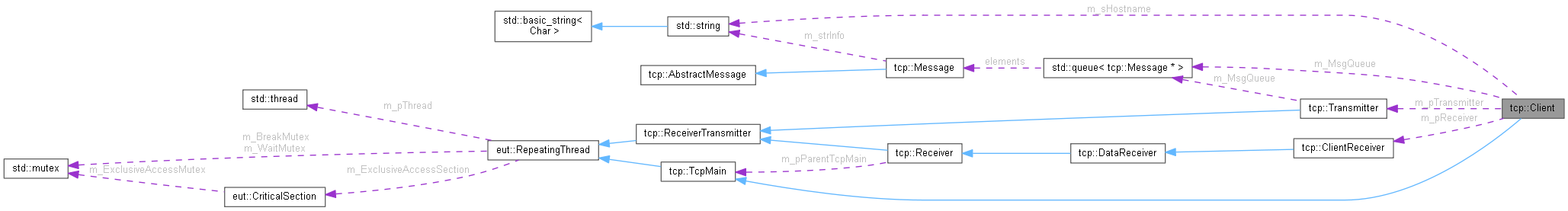

Collaboration diagram for tcp::Client:

[legend]

Public Member Functions
	Client (const std::string &rsHostname, unsigned int uiPort, int iAdressFamily, int iSocketType, int iProtocol, int iSecTimeOut)

	Client (const std::string &rsHostname, unsigned int uiPort, int iAdressFamily, int iSocketType, int iProtocol, unsigned int uiDataSize, int iSecTimeOut)

virtual	~Client ()

virtual void	cancel () override

virtual void	setDataSize (unsigned int uiDataSize) override

int	connectServer ()

virtual int	disconnectServer ()

bool	isServerConnected () const

virtual int	send (char *pszRawMsg, unsigned int uiRawMsgSize, unsigned int uiMessageID=0, int iActionCode=0, const std::string &rsInfo="")

virtual int	send (Message *pTcpMessage) override

int	acceptServerMessage (Message *pTcpServerMessage)

int	getSocketAdrFromString (SOCKADDR_IN *Socketadress, const std::string &rsHostnameOrIp) const

std::string	getHostName () const

int	getPeerName (std::string &rsIPAdress, unsigned int &ruiPort) const

ActionCode	getWaitingServerMsgActionCode () const

Public Member Functions inherited from tcp::TcpMain
	TcpMain (unsigned int uiPort, int iAdressFamily, int iSocketType, int iProtocol, int iSecTimeOut)

	TcpMain (unsigned int uiPort, int iAdressFamily, int iSocketType, int iProtocol, unsigned int uiDataSize, int iSecTimeOut)

virtual	~TcpMain ()

unsigned int	getPortNum () const

unsigned int	getDataSize () const

SOCKET	getMainSocket () const

void	setTimeOutSec (int iSecTimeOut)

int	TimeOutSec ()

Public Member Functions inherited from eut::RepeatingThread
	RepeatingThread ()

virtual	~RepeatingThread ()

virtual int	start ()

bool	testCancel ()

RepeatingThread::STATUS	status () const

bool	isInExclusiveAccess () const

void	setExclusiveAccess ()

void	unsetExclusiveAccess ()

int	getBreakCounter ()

virtual void	takeABreak ()

virtual void	finishBreak ()

void	waitForInput ()

void	signalInput ()

Protected Member Functions
	Client ()

	Client (unsigned int, int, int, int, int)

virtual void	work () override

virtual Transmitter *	generateNewTransmitter ()

virtual ClientReceiver *	generateNewReceiver ()

virtual void	processServerMessage (Message *pTcpMessage)

virtual int	syncDataSize ()

Protected Member Functions inherited from tcp::TcpMain
	TcpMain ()

void	setWSACleanup () const

int	startWinsock () const

Protected Member Functions inherited from eut::RepeatingThread
void	threadWork ()

void	setStatus (STATUS eStatus)

STATUS	getStatus ()

void	toOrder (ORDER eOrder)

ORDER	getOrder ()

Protected Attributes
ClientReceiver *	m_pReceiver

Transmitter *	m_pTransmitter

Protected Attributes inherited from tcp::TcpMain
int	m_iSecTimeOut

unsigned int	m_uiServerPort

unsigned int	m_uiDataSize

int	m_iAdressFamily

int	m_iSocketType

int	m_iProtocol

SOCKET	m_MainSocket

Private Member Functions
	Client (const Client &)

Client &	operator= (const Client &)

Private Attributes
SOCKADDR_IN	m_Socketadress

std::string	m_sHostname

std::queue< Message * >	m_MsgQueue

ActionCode	m_eToWaitingForServer

Additional Inherited Members
Public Types inherited from eut::RepeatingThread
enum	EuTHREADERROR { EuTHREAD_ERR_NO_THREAD = -10301 , EuTHREAD_ERR_THREAD_ALREADY_WORKING = -10302 , EuTHREAD_ERR_THREAD_BREAK_COUNT_LESS_THAN_ZERO = -10303 , EuTHREAD_ERR_UNKNOWN = -10400 }
	Error range = -10301 to -10400 More...

enum	STATUS { eAT_THE_START , eWORKING , ePAUSING , eENDING , eCOMPLETED }

enum	ORDER { eUNDEFINED , eDO_WORK , eEXIT }

Detailed Description

A simple TCP client class, which should learn its know-how in the derived classes.

Client runs as a thread that can connect to a socket server.

Client has as superclass attributes the port, the data size which is sent, the address family, the socket type, the protocol type and a MainSocket (here the connection socket to the server).

Additional attributes are a ClientReceiver, which processes the data from the server as a thread, a Transmitter, which sends data to the server, the socket address, the host name and a MsgQueue, which receives the individual messages of the ClientReceiver.

Starting the client:

During instantiation with transfer of host name, port, address family, socket type, protocol and optionally the data size, the socket address is first determined using the transferred host name and the own thread is started.

Connection to the server:

An attempt is made to contact the server using the client method Client::connectServer() If this succeeds, the ClientReceiver and Transmitter are instantiated and started (these are also threads).

The Client waits in Client::work() for data from the server (listens blockingly).

Termination of the connection by the server:

The socket is released in the ClientReceiver in ClientReceiver::work(). If error < 0, then the connection is broken.

Processing data from the server:

A tcp::Message or derived message is created via ClientReceiver::generateNewTcpMessage (...) and forwarded to ClientReceiver::acceptMessage(AbstractMessage*).
This method can be overwritten; the ClientReceiver simply forwards the message to its parent (Client or subclass) Client::acceptServerMessage(). There, the message is inserted into the MsgQueue of the client and processed further in Client::work() and forwarded to the client method Client::processServerMessage(Message *), which then deletes the message here; this method can also be overwritten.

Sending to the server:

Sending is done via Client::send (...) (can be overwritten in subclasses) which packs the data here into a tcp::Message and passes it to Transmitter::acceptOrder (...) for further processing, which then sends this data to the server.

Terminating the connection to the server:

Via Client::disconnectServer() the connection to the server is terminated. The ClientReceiver and Transmitter are removed. A new connect is possible.

See also: MyTestClient

Copyright: © 2010 Helmut Jakoby

Author: Helmut Jakoby

Constructor & Destructor Documentation

◆ Client() [1/5]

tcp::Client::Client ( )

protected

This constructor is not available.

◆ Client() [2/5]

tcp::Client::Client	(	unsigned int	,
		int	,
		int	,
		int	,
		int	)

protected

This constructor is not available.

◆ Client() [3/5]

tcp::Client::Client	(	const std::string &	rsHostname,
		unsigned int	uiPort,
		int	iAdressFamily,
		int	iSocketType,
		int	iProtocol,
		int	iSecTimeOut )

The constructor starts the client, but is not yet connected to the server from rsHostname.

Parameters

[in]	rsHostname	The host name or IP address (e.g. "LOCALHOST" or "192.168.2.102").
[in]	uiPort	The port of the server.
[in]	iAdressFamily	The socket address family to instantiate a socket (usually AF_INET).
[in]	iSocketType	The socket type (usually SOCK_STREAM).
[in]	iProtocol	The socket protocol (usually 0).
[in]	iSecTimeOut	The time until waiting for a connection or waiting for data is aborted.

Exceptions

eut::ErrorNException An exception is thrown if an error occurs.

◆ Client() [4/5]

tcp::Client::Client	(	const std::string &	rsHostname,
		unsigned int	uiPort,
		int	iAdressFamily,
		int	iSocketType,
		int	iProtocol,
		unsigned int	uiDataSize,
		int	iSecTimeOut )

The constructor starts the client, but is not yet connected to the server from rsHostname.

Parameters

[in]	rsHostname	The host name or IP address (e.g. "LOCALHOST" or "192.168.2.102").
[in]	uiPort	The port of the server.
[in]	iAdressFamily	The socket address family to instantiate a socket (usually AF_INET).
[in]	iSocketType	The socket type (usually SOCK_STREAM).
[in]	iProtocol	The socket protocol (usually 0).
[in]	uiDataSize	The packet size.
[in]	iSecTimeOut	The time until waiting for a connection or waiting for data is aborted.

Exceptions

eut::ErrorNException An exception is thrown if an error occurs.

◆ ~Client()

virtual tcp::Client::~Client ( )

virtual

In the destructor the connection to the server is terminated if not already done.

◆ Client() [5/5]

tcp::Client::Client ( const Client & )

private

The copy constructor is not available.

Member Function Documentation

◆ acceptServerMessage()

int tcp::Client::acceptServerMessage ( Message * pTcpServerMessage )

The transferred Message is inserted into the MsgQueue, usually by the server via the ClientReceiver, and thus processed.

Parameters

[in] pTcpServerMessage The message received from the server.

Returns: A return < 0 indicates an error.

◆ cancel()

virtual void tcp::Client::cancel ( )

overridevirtual

When the thread ends, this virtual method is called. The MsgQueue is cleaned up here.

Reimplemented from eut::RepeatingThread.

◆ connectServer()

int tcp::Client::connectServer ( )

Connects to the server.

Returns: A return < 0 indicates an error.

◆ disconnectServer()

virtual int tcp::Client::disconnectServer ( )

virtual

Terminates the connection with the server.

Returns: A return < 0 indicates an error.

◆ generateNewReceiver()

virtual ClientReceiver * tcp::Client::generateNewReceiver ( )

protectedvirtual

Returns a ClientReceiver here; can be overwritten in subclasses to provide a derived type of ClientReceiver if necessary.

Returns: Pointer to the Receiver to be used (which receives data from a Server) for this client

Attention: This method is used internally and the object instantiated on the heap is also internally removed from memory.

◆ generateNewTransmitter()

virtual Transmitter * tcp::Client::generateNewTransmitter ( )

protectedvirtual

Returns a Transmitter here; can be overwritten in subclasses to provide a derived type of Transmitter if necessary.

Returns: Pointer to the Transmitter to use (which sends data to a Server) for this client.

Attention: This method is used internally and the object instantiated on the heap is also internally removed from memory.

◆ getHostName()

std::string tcp::Client::getHostName ( ) const

Returns the host name or IP address (for example, "LOCALHOST" or "192.168.2.102") from m_sHostname.

Returns: See above.

◆ getPeerName()

int tcp::Client::getPeerName	(	std::string &	rsIPAdress,
		unsigned int &	ruiPort ) const

Returns the IP address and the port.

Parameters

[in,out]	rsIPAdress	The IP address (e.g. "192.168.2.102").
[in,out]	ruiPort	The port which is addressed.

Returns: A return value < 0 indicates an error.

◆ getSocketAdrFromString()

int tcp::Client::getSocketAdrFromString	(	SOCKADDR_IN *	Socketadress,
		const std::string &	rsHostnameOrIp ) const

Returns the hostname as IP address.

Parameters

[in,out]	Socketadress	The IP address is supplied in this structure.
[in]	rsHostnameOrIp	The host name (e.g. "LOCALHOST").

Returns: A return value < 0 indicates an error.

◆ getWaitingServerMsgActionCode()

ActionCode tcp::Client::getWaitingServerMsgActionCode ( ) const

Returns the ActionCode of the Message being waited for.

Returns: see above.

◆ isServerConnected()

bool tcp::Client::isServerConnected ( ) const

Indicates whether the server is connected.

Returns: If true, there is a connection.

◆ operator=()

Client & tcp::Client::operator= ( const Client & )

private

The assignment operator is not available.

◆ processServerMessage()

virtual void tcp::Client::processServerMessage ( Message * pTcpMessage )

protectedvirtual

Should process the message from the server in subclasses. In the overwritten methods, always this method must be called, because among other things the passed Message is removed here from the memory.

Parameters

[in] pTcpMessage The message to be processed from the server.

Reimplemented in MyTestClient.

◆ send() [1/2]

virtual int tcp::Client::send	(	char *	pszRawMsg,
		unsigned int	uiRawMsgSize,
		unsigned int	uiMessageID = 0,
		int	iActionCode = 0,
		const std::string &	rsInfo = "" )

virtual

Sends the transferred data in a Message via its Transmitter to the server.

Parameters

[in]	pszRawMsg	Pointer to the data to be sent.
[in]	uiRawMsgSize	The size of the data to be sent.
[in]	uiMessageID	A MessageID can be passed.
[in]	iActionCode	A ActionCode can be passed.
[in]	rsInfo	A free info can be passed.

Returns: A return value < 0 indicates an error.

Attention: The data in pszRawMsg is internally removed from memory; the calling instance may no longer use the data to be sent or remove it from memory.

◆ send() [2/2]

virtual int tcp::Client::send ( Message * pTcpMessage )

overridevirtual

Sends passed Message to the server via its Transmitter.

Parameters

[in] pTcpMessage The message packet to be sent.

Returns: A return < 0 indicates an error.

Attention: The passed Message must not be removed from memory by the calling instance! Since the Message is given to the Transmitter for further processing, and the Transmitter decides when to send. Therefore, the Transmitter will also remove the Message from memory.

Implements tcp::TcpMain.

◆ setDataSize()

virtual void tcp::Client::setDataSize ( unsigned int uiDataSize )

overridevirtual

Sets the packet size.

Parameters

[in] uiDataSize The package size.

Reimplemented from tcp::TcpMain.

◆ syncDataSize()

virtual int tcp::Client::syncDataSize ( )

protectedvirtual

Synchronizes the data size with the server.

Returns: A return value < 0 indicates an error.

◆ work()

virtual void tcp::Client::work ( )

overrideprotectedvirtual

Work of the thread. A received Message is forwarded to method Client::processServerMessage(Message * pTcpMessage).

Implements eut::RepeatingThread.

Member Data Documentation

◆ m_eToWaitingForServer

ActionCode tcp::Client::m_eToWaitingForServer

private

If this value is not equal to ACTION_UNDEF, then in Client::work() any Message that does not have this action code will be appended back to the MsgQueue. Thus, Client::work() waits for the Message with this ActionCode.

When the message with this action code arrives in Client::work(), m_eToWaitingForServer is set to ACTION_UNDEF again and the message is forwarded to Client::processServerMessage (...) for further processing.

◆ m_MsgQueue

std::queue<Message *> tcp::Client::m_MsgQueue

private

The queue with the data received from the server.

◆ m_pReceiver

ClientReceiver* tcp::Client::m_pReceiver

protected

The Receiver receives data from a Server for this client.

See also: ClientReceiver

◆ m_pTransmitter

Transmitter* tcp::Client::m_pTransmitter

protected

The Transmitter sends data to a Server for this client.

See also: Transmitter

◆ m_sHostname

std::string tcp::Client::m_sHostname

private

The host name or IP address (for example, "LOCALHOST" or "192.168.2.102").

◆ m_Socketadress

SOCKADDR_IN tcp::Client::m_Socketadress

private

The address structure.

The documentation for this class was generated from the following file:

TcpClient.h

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Starting the client:

Connection to the server:

Termination of the connection by the server:

Processing data from the server:

Sending to the server:

Terminating the connection to the server:

Constructor & Destructor Documentation

◆ Client() [1/5]

◆ Client() [2/5]

◆ Client() [3/5]

◆ Client() [4/5]

◆ ~Client()

◆ Client() [5/5]

Member Function Documentation

◆ acceptServerMessage()

◆ cancel()

◆ connectServer()

◆ disconnectServer()

◆ generateNewReceiver()

◆ generateNewTransmitter()

◆ getHostName()

◆ getPeerName()

◆ getSocketAdrFromString()

◆ getWaitingServerMsgActionCode()

◆ isServerConnected()

◆ operator=()

◆ processServerMessage()

◆ send() [1/2]

◆ send() [2/2]

◆ setDataSize()

◆ syncDataSize()

◆ work()

Member Data Documentation

◆ m_eToWaitingForServer

◆ m_MsgQueue

◆ m_pReceiver

◆ m_pTransmitter

◆ m_sHostname

◆ m_Socketadress
