MyTestServer Class Reference

An example class for a simple server derived from Server. More...

#include <MyTestServer.h>

Inheritance diagram for MyTestServer:

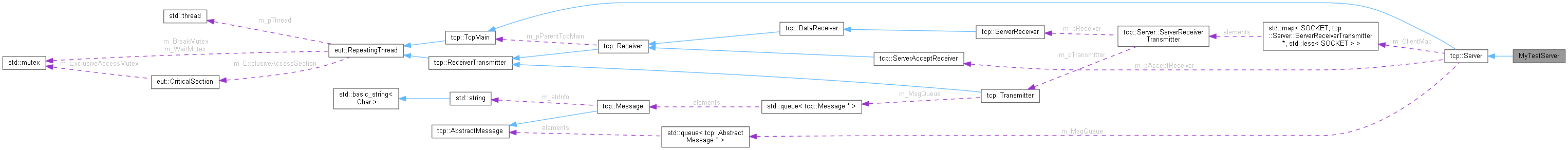

Collaboration diagram for MyTestServer:

Public Member Functions
	MyTestServer (unsigned int uiPort, int iAdressFamily, int iSocketType, int iProtocol, unsigned int uiDataSize, unsigned long ulMaxClients, int iSecTimeOut)
virtual	~MyTestServer ()
virtual void	processClientMessage (tcp::AbstractMessage *pTcpMessage)
int	sendToAllClients (std::string strMsg)
Public Member Functions inherited from tcp::Server
	Server (unsigned int uiPort, int iAdressFamily, int iSocketType, int iProtocol, unsigned int uiDataSize, unsigned long ulMaxClients, int iSecTimeOut)
virtual	~Server ()
virtual void	cancel () override
int	acceptClientMessage (AbstractMessage *pTcpMessage)
Public Member Functions inherited from tcp::TcpMain
	TcpMain (unsigned int uiPort, int iAdressFamily, int iSocketType, int iProtocol, int iSecTimeOut)
	TcpMain (unsigned int uiPort, int iAdressFamily, int iSocketType, int iProtocol, unsigned int uiDataSize, int iSecTimeOut)
virtual	~TcpMain ()
unsigned int	getPortNum () const
virtual void	setDataSize (unsigned int uiDataSize)
unsigned int	getDataSize () const
SOCKET	getMainSocket () const
void	setTimeOutSec (int iSecTimeOut)
int	TimeOutSec ()
Public Member Functions inherited from eut::RepeatingThread
	RepeatingThread ()
virtual	~RepeatingThread ()
virtual int	start ()
bool	testCancel ()
RepeatingThread::STATUS	status () const
bool	isInExclusiveAccess () const
void	setExclusiveAccess ()
void	unsetExclusiveAccess ()
int	getBreakCounter ()
virtual void	takeABreak ()
virtual void	finishBreak ()
void	waitForInput ()
void	signalInput ()

Protected Member Functions
	MyTestServer ()
	MyTestServer (unsigned int, int, int, int, int)
	MyTestServer (unsigned int, int, int, int, unsigned int, int)
virtual void	insertNewClient (Server::ServerReceiverTransmitter *pNewServerReceiverTransmitter)
Protected Member Functions inherited from tcp::Server
	Server ()
	Server (unsigned int, int, int, int, int)
	Server (unsigned int, int, int, int, unsigned int, int)
virtual void	work () override
virtual void	insertNewClient (Server::ServerReceiverTransmitter *pNewServerReceiverTransmitter)
Server::ServerReceiverTransmitter *	getClient (SOCKET Socket)
virtual int	removeClient (SOCKET Socket)
virtual Server::ServerReceiverTransmitter *	generateNewServerReceiverTransmitter (Server *pParent, SOCKET Socket, unsigned int iDataSize) const
void	setClientMapReceiverValid (bool bValid)
void	clearClientMap ()
unsigned long	getMaxClients () const
virtual int	send (SOCKET ClientSocket, char *pszRawMsg, unsigned int uiRawMsgSize, unsigned int uiMessageID=0, int iActionCode=0, const std::string &rstrInfo="")
virtual int	send (Message *pTcpMessage) override
Protected Member Functions inherited from tcp::TcpMain
	TcpMain ()
void	setWSACleanup () const
int	startWinsock () const
Protected Member Functions inherited from eut::RepeatingThread
void	threadWork ()
void	setStatus (STATUS eStatus)
STATUS	getStatus ()
void	toOrder (ORDER eOrder)
ORDER	getOrder ()

Private Member Functions
	MyTestServer (const MyTestServer &)
MyTestServer &	operator= (const MyTestServer &)

Additional Inherited Members
Public Types inherited from eut::RepeatingThread
enum	EuTHREADERROR { EuTHREAD_ERR_NO_THREAD = -10301 , EuTHREAD_ERR_THREAD_ALREADY_WORKING = -10302 , EuTHREAD_ERR_THREAD_BREAK_COUNT_LESS_THAN_ZERO = -10303 , EuTHREAD_ERR_UNKNOWN = -10400 }
	Error range = -10301 to -10400 More...
enum	STATUS {   eAT_THE_START , eWORKING , ePAUSING , eENDING ,   eCOMPLETED }
enum	ORDER { eUNDEFINED , eDO_WORK , eEXIT }
Protected Attributes inherited from tcp::Server
ServerAcceptReceiver *	m_pAcceptReceiver
std::map< SOCKET, ServerReceiverTransmitter *, std::less< SOCKET > >	m_ClientMap
Protected Attributes inherited from tcp::TcpMain
int	m_iSecTimeOut
unsigned int	m_uiServerPort
unsigned int	m_uiDataSize
int	m_iAdressFamily
int	m_iSocketType
int	m_iProtocol
SOCKET	m_MainSocket

Detailed Description

An example class for a simple server derived from Server.

Messages from connected clients are output. Additionally, MyTestServer can send messages to all clients.

Implementation of MyTestServer:

MyTestServer.cpp

//-----------------------------------------------------------------------------
//-----------------------------------------------------------------------------
#include "MyTestServer.h"
#include <iostream>
//-----------------------------------------------------------------------------
#define SUPER Server
//-----------------------------------------------------------------------------
MyTestServer::MyTestServer()
: SUPER()
{
}
//-----------------------------------------------------------------------------
MyTestServer::MyTestServer( unsigned int uiPort,
                            int iAdressFamily,
                            int iSocketType,
                            int iProtocol,
                            int iSecTimeOut )
: SUPER( uiPort, iAdressFamily, iSocketType, iProtocol, iSecTimeOut )
{
}
//-----------------------------------------------------------------------------
MyTestServer::MyTestServer( unsigned int uiPort,
                            int iAdressFamily,
                            int iSocketType,
                            int iProtocol,
                            unsigned int uiDataSize,
                            int iSecTimeOut )
: SUPER( uiPort, iAdressFamily, iSocketType, iProtocol, uiDataSize, iSecTimeOut )
{
}
//-----------------------------------------------------------------------------
MyTestServer::MyTestServer( unsigned int uiPort,
                            int iAdressFamily,
                            int iSocketType,
                            int iProtocol,
                            unsigned int uiDataSize,
                            unsigned long ulMaxClients,
                            int iSecTimeOut )
: SUPER( uiPort, iAdressFamily, iSocketType, iProtocol, uiDataSize, ulMaxClients, iSecTimeOut )
{
}
//-----------------------------------------------------------------------------
MyTestServer::~MyTestServer()
{
}
//-----------------------------------------------------------------------------
void MyTestServer::processClientMessage( tcp::AbstractMessage * pTcpMessage )
{
  tcp::Message             * t_pTcpMessage = dynamic_cast<tcp::Message*>( pTcpMessage );
  tcp::ServerMessage       * t_pTcpServerMessage = dynamic_cast<tcp::ServerMessage*>( pTcpMessage );
  tcp::ServerAcceptMessage * t_pTcpServerAcceptMessage = dynamic_cast<tcp::ServerAcceptMessage*>( pTcpMessage );

  if ( t_pTcpServerMessage )
  {
    if ( t_pTcpServerMessage->getActionCode() < 0 )
    {
      std::cout << "server get error-msg from client[" <<  t_pTcpServerMessage->getSocket() <<"] with code [" << t_pTcpServerMessage->getActionCode() << "]" << std::endl;
    }
    else
    {
      std::cout << "server get client-msg from client[" << t_pTcpServerMessage->getSocket() << "] with code [" << t_pTcpServerMessage->getActionCode() << "]";
      if ( t_pTcpServerMessage->getRawMsgSize() )
      {
        std::cout << " - " << t_pTcpServerMessage->getRawMsgPt();
      }
      std::cout << std::endl;
    }
  }
  else if ( t_pTcpServerAcceptMessage )
  {
    std::cout << "new client:" << t_pTcpServerAcceptMessage->getSocket() << std::endl;
  }
  else if ( t_pTcpMessage )
  {
    std::cout << "Err! No message!" << std::endl;
  }
  if ( pTcpMessage ) SUPER::processClientMessage( pTcpMessage );
}
//-----------------------------------------------------------------------------
int MyTestServer::sendToAllClients( std::string strMsg )
{
  int                                                         t_iErr = 0;
  std::map< SOCKET, ServerReceiverTransmitter * >::iterator   m_ClientMapIterator;
  char                                                      * t_pchBuffer = 0;
  tcp::Message                                              * t_pTcpMessage = 0;

  if ( m_ClientMap.size() > 0 )
  {
    for ( m_ClientMapIterator = m_ClientMap.begin();
          m_ClientMapIterator != m_ClientMap.end();
          m_ClientMapIterator++ )
    {
      t_pchBuffer = new char[ strlen( strMsg.c_str() ) + 1 ];
      strcpy(t_pchBuffer, strMsg.c_str());
      t_pchBuffer[ strlen( strMsg.c_str() ) ] = '\x00';
      t_pTcpMessage = new tcp::Message( t_pchBuffer, strlen( strMsg.c_str() ) + 1, 0, 0, "" );
      // int acceptOrder( Message * pTcpMessage  );
      t_iErr = (*m_ClientMapIterator).second->send( t_pTcpMessage );
    }
  }
  return t_iErr;
}
//-----------------------------------------------------------------------------
void MyTestServer::insertNewClient( Server::ServerReceiverTransmitter * pNewServerReceiverTransmitter )
{
  int              t_iErr(0);
  std::string      t_sIPAdress;
  unsigned int    t_uiPort(0);

  SUPER::insertNewClient( pNewServerReceiverTransmitter );
  t_iErr = pNewServerReceiverTransmitter->getPeerName( t_sIPAdress, t_uiPort );
  std::cout << "new client ip:" << t_sIPAdress << " port:" << t_uiPort << " err:" << t_iErr << std::endl;

}
//-----------------------------------------------------------------------------
#undef SUPER
//-----------------------------------------------------------------------------

The MyTestServer class can be tried out as follows:

ServerMain.cpp

#ifdef _MSC_VER
  #ifdef _DEBUG
    // detect Memory-Leaks
    #include <crtdbg.h>
    #define _CRTDBG_MAP_ALLOC
  #endif
#endif
#ifdef _DEBUG_MEMORY_SPY
  #include <MliForMain.h>
#endif
#include "MyTestServer.h"
#include <EuException.h>
#include <iostream>
#if defined(_MSC_VER) || defined(__MINGW32__)
  #include <conio.h>
#elif defined(__GNUC__)
  #include <unistd.h>
  #include <termios.h>
  #include <stdio.h>
  #include <string.h>
  //---------------------------------------------------------------------------
  int _getche()
  {
    char            ch = 0;
    struct termios  tOld;

    fflush( stdout );
    if ( tcgetattr( 0, & tOld ) < 0 )
    {
      perror("tcgetattr");
    }
    tOld.c_lflag &= ~ICANON;
    tOld.c_lflag &= ~ECHO;
    tOld.c_cc[VMIN] = 1;
    tOld.c_cc[VTIME] = 0;
    if ( tcsetattr( 0, TCSANOW, & tOld ) < 0 )
    {
      perror("tcsetattr ICANON");
    }
    if ( read( 0, & ch, 1 ) < 0 )
    {
      perror("read");
    }
    tOld.c_lflag |= ICANON;
    tOld.c_lflag |= ECHO;
    if ( tcsetattr( 0, TCSADRAIN, & tOld ) < 0 )
    {
      perror("tcsetattr ~ICANON");
    }
    return ch;
  }
  //---------------------------------------------------------------------------
  int _kbhit( void )
  {
    static  int     ch = 0,
                    fd = 0;
    struct termios  tNew,
                    tOld;

    tcgetattr( fd, & tOld );
    memcpy( & tNew, & tOld, sizeof( tNew ) );
    tNew.c_lflag = tNew.c_lflag & ( ! ICANON );
    tNew.c_cc[VMIN] = 0;
    tNew.c_cc[VTIME] = 1;
    tcsetattr( fd, TCSANOW, & tOld );
    if ( ch != -1 ) ungetc( ch, stdin );
    return ( ( ch != -1 ) ? 1 : 0 );
  }
  //---------------------------------------------------------------------------
#endif
//-----------------------------------------------------------------------------

int main(int argc, char *argv[])
{
  #ifdef _MSC_VER
    #ifdef _DEBUG
      // Display the memory leaks if any are present...
      _CrtSetDbgFlag ( _CRTDBG_ALLOC_MEM_DF | _CRTDBG_LEAK_CHECK_DF );
      // Next line with the memory address from "{ } ({56} normal block at 0x00D01C78, 10 bytes long.)".
      //_crtBreakAlloc = 1149;
    #endif
  #endif
  #ifdef _DEBUG_MEMORY_SPY
    MemSpy::activateMemoryMonitoring();
  #endif

  MyTestServer  * t_pServer(0);
  int             t_iErr = 0;
  std::string     t_sServerOutput;
  char            t_Key;
  unsigned long   t_ulMaxClients = 2;

  try
  {
    // Server starten
    t_pServer = new MyTestServer( 12345, PF_INET, SOCK_STREAM, 0, 150, t_ulMaxClients, 5 );
  }
  catch( eut::ErrorNException ERR )
  {
    std::cout << "new MyTestServer Err: " << ERR.error() << std::endl;
    std::cout << "press key";
    t_Key = _getche();
    return ERR.error();
  }
  std::cout << "Server started -> max clients="<< t_ulMaxClients << std::endl;
  do
  {
    std::cout << "Input for all clients or 'q' for exit:" << std::endl;
    std::cin >> t_sServerOutput;
    t_iErr = t_pServer->sendToAllClients( t_sServerOutput );
  } while ( ! t_iErr && t_sServerOutput != "q" );
  t_pServer->cancel();
  delete t_pServer;
  #ifdef _DEBUG_MEMORY_SPY
    // Display memory leaks
    MemSpy::finishMemoryMonitoring( MemSpy::OUTPUT_TRACE | MemSpy::OUTPUT_CONSOLE );
  #endif
  std::cout << "press key";
  t_Key = _getche();
  return t_iErr;
}

Copyright

© 2010 Helmut Jakoby

Author

Helmut Jakoby

Constructor & Destructor Documentation

MyTestServer() [1/5]

MyTestServer::MyTestServer ( )

protected

This constructor is not available.

MyTestServer() [2/5]

MyTestServer::MyTestServer ( unsigned int , int , int , int , int  )

protected

This constructor is not available.

MyTestServer() [3/5]

MyTestServer::MyTestServer ( unsigned int , int , int , int , unsigned int , int  )

protected

This constructor is not available.

MyTestServer() [4/5]

MyTestServer::MyTestServer	(	unsigned int	uiPort,
		int	iAdressFamily,
		int	iSocketType,
		int	iProtocol,
		unsigned int	uiDataSize,
		unsigned long	ulMaxClients,
		int	iSecTimeOut )

The constructor starts the server.

Parameters

[in]	uiPort	The port of the server.
[in]	iAdressFamily	The socket address family to instantiate a socket (usually AF_INET ).
[in]	iSocketType	The socket type (usually SOCK_STREAM ).
[in]	iProtocol	The socket protocol (usually 0).
[in]	uiDataSize	The packet size.
[in]	ulMaxClients	The maximum number of clients allowed to connect.
[in]	iSecTimeOut	The time until waiting for a connection or waiting for data is aborted.

Exceptions

eut::ErrorNException

An exception is thrown if an error occurs.

~MyTestServer()

virtual MyTestServer::~MyTestServer ( )

virtual

Destructor.

MyTestServer() [5/5]

MyTestServer::MyTestServer ( const MyTestServer & )

private

The copy constructor is not available.

Member Function Documentation

insertNewClient()

virtual void MyTestServer::insertNewClient ( Server::ServerReceiverTransmitter * pNewServerReceiverTransmitter )

protectedvirtual

Inserts a new client as 'ServerReceiverTransmitter' in its m_ClientMap. After the same call in the superclass, displays the client here via std::cout.

Parameters

[in]

pNewServerReceiverTransmitter

The client is in this object.

operator=()

MyTestServer & MyTestServer::operator= ( const MyTestServer & )

private

The assignment operator is not available.

processClientMessage()

virtual void MyTestServer::processClientMessage ( tcp::AbstractMessage * pTcpMessage )

virtual

Outputs a message from a connected client via std::cout.

Parameters

[in]

pTcpMessage

The message to be processed from the server.

Reimplemented from tcp::Server.

sendToAllClients()

int MyTestServer::sendToAllClients

(

std::string

strMsg

)

Sends a text message to all connected clients.

Parameters

[in]

strMsg

The message to be sent.

Returns

A return < 0 indicates an error.

---

The documentation for this class was generated from the following file:

• MyTestServer.h
