tcp::ReceiverTransmitter Class Reference

Superclass for all Receiver and Transmitter, which communicate via a SOCKET. More...

#include <TcpReceiverTransmitter.h>

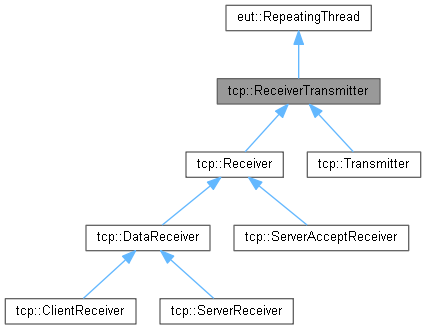

Inheritance diagram for tcp::ReceiverTransmitter:

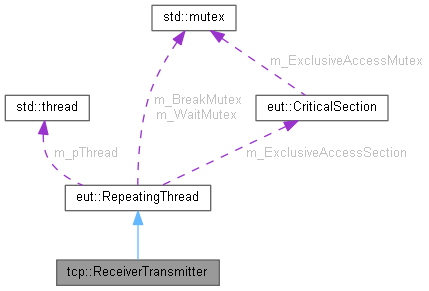

Collaboration diagram for tcp::ReceiverTransmitter:

Public Member Functions
	ReceiverTransmitter (SOCKET Socket)
virtual	~ReceiverTransmitter ()
virtual void	takeABreak () override
virtual void	finishBreak () override
int	getPeerName (std::string &rstrIPAdress, unsigned int &ruiPort) const
SOCKET	Socket () const
Public Member Functions inherited from eut::RepeatingThread
	RepeatingThread ()
virtual	~RepeatingThread ()
virtual int	start ()
virtual void	cancel ()
bool	testCancel ()
RepeatingThread::STATUS	status () const
bool	isInExclusiveAccess () const
void	setExclusiveAccess ()
void	unsetExclusiveAccess ()
int	getBreakCounter ()
void	waitForInput ()
void	signalInput ()

Protected Member Functions
	ReceiverTransmitter ()
Protected Member Functions inherited from eut::RepeatingThread
void	threadWork ()
void	setStatus (STATUS eStatus)
STATUS	getStatus ()
void	toOrder (ORDER eOrder)
ORDER	getOrder ()
virtual void	work ()=0

Protected Attributes
SOCKET	m_Socket

Private Member Functions
	ReceiverTransmitter (const ReceiverTransmitter &)
ReceiverTransmitter &	operator= (const ReceiverTransmitter &)

Additional Inherited Members
Public Types inherited from eut::RepeatingThread
enum	EuTHREADERROR { EuTHREAD_ERR_NO_THREAD = -10301 , EuTHREAD_ERR_THREAD_ALREADY_WORKING = -10302 , EuTHREAD_ERR_THREAD_BREAK_COUNT_LESS_THAN_ZERO = -10303 , EuTHREAD_ERR_UNKNOWN = -10400 }
	Error range = -10301 to -10400 More...
enum	STATUS {   eAT_THE_START , eWORKING , ePAUSING , eENDING ,   eCOMPLETED }
enum	ORDER { eUNDEFINED , eDO_WORK , eEXIT }

Detailed Description

Superclass for all Receiver and Transmitter, which communicate via a SOCKET.

Copyright

© 2010 Helmut Jakoby

Author

Helmut Jakoby

Constructor & Destructor Documentation

ReceiverTransmitter() [1/3]

tcp::ReceiverTransmitter::ReceiverTransmitter ( )

protected

This constructor is not available.

ReceiverTransmitter() [2/3]

tcp::ReceiverTransmitter::ReceiverTransmitter

(

SOCKET

Socket

)

Constructor with parameter passing.

Parameters

[in]

Socket

The socket via which communication takes place.

Exceptions

eut::ErrorNException

An exception is thrown if an error occurs.

~ReceiverTransmitter()

virtual tcp::ReceiverTransmitter::~ReceiverTransmitter ( )

virtual

Destructor. The socked is closed.

ReceiverTransmitter() [3/3]

tcp::ReceiverTransmitter::ReceiverTransmitter ( const ReceiverTransmitter & )

private

The copy constructor is not available.

Member Function Documentation

finishBreak()

virtual void tcp::ReceiverTransmitter::finishBreak ( )

overridevirtual

These threads must not pause because they themselves are blocking!

Exceptions

eut::ErrorNException

An exception is thrown when called.

Reimplemented from eut::RepeatingThread.

getPeerName()

int tcp::ReceiverTransmitter::getPeerName	(	std::string &	rstrIPAdress,
		unsigned int &	ruiPort ) const

Returns the IP address and the port.

Parameters

[in,out]	rstrIPAdress	The IP address (e.g. "LOCALHOST" or "192.168.2.102").
[in,out]	ruiPort	The port which is addressed.

Returns

A return value < 0 indicates an error.

operator=()

ReceiverTransmitter & tcp::ReceiverTransmitter::operator= ( const ReceiverTransmitter & )

private

The assignment operator is not available.

Socket()

SOCKET tcp::ReceiverTransmitter::Socket

(

)

const

Returns the socket.

takeABreak()

virtual void tcp::ReceiverTransmitter::takeABreak ( )

overridevirtual

These threads must not pause because they themselves are blocking!

Exceptions

eut::ErrorNException

An exception is thrown when called.

Reimplemented from eut::RepeatingThread.

Member Data Documentation

m_Socket

SOCKET tcp::ReceiverTransmitter::m_Socket

protected

All derived classes communicate via a socket.

---

The documentation for this class was generated from the following file:

• TcpReceiverTransmitter.h
