The base class of a reference attribute from persistent objects to other persistent objects in the database. More...

#include <GloReference.h>

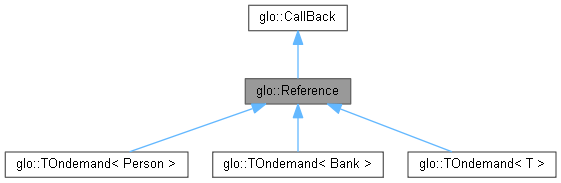

Inheritance diagram for glo::Reference:

[legend]

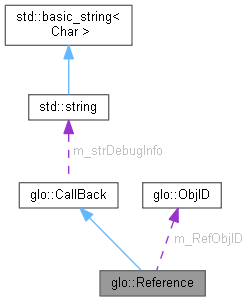

Collaboration diagram for glo::Reference:

[legend]

Public Member Functions
	Reference ()

	Reference (const ObjID &rObjID)

	Reference (Base &rBase)

	Reference (unsigned long ulDatabaseID)

	Reference (const ObjID &rObjID, Base &rBase)

	Reference (const ObjID &rObjID, unsigned long ulDatabaseID)

	Reference (const Reference &rT)

virtual	~Reference ()

virtual int	setBase (Base *pBase) override

virtual Base *	getBase () const override

virtual int	getTypeAsString (std::string &rsTypeName) override

bool	isNULL () const

void	setNULL ()

ObjID	getObjID () const

const ObjID *	getObjIDAsPointer () const

virtual int	setReference (const ObjID &rObjID)

int	setReference (const BasePersistent *pObj)

int	setReference (const BasePersistent &rObj)

int	getReference (BasePersistent *&prRetVal)

int	getReference (std::shared_ptr< BasePersistent > &sprRetVal)

virtual int	deleteInBase (EnDeepMode eDeepMode=DM_SHALLOW)

virtual int	lock (EnLockMode eLockMode=LK_DELETEvWRITE, EnDeepMode eDeepMode=DM_SHALLOW) const

virtual int	lock (const LockSpecification &rLockSpecification) const

virtual int	unlock (EnLockMode eLockMode=LK_DELETEvWRITE, EnDeepMode eDeepMode=DM_SHALLOW) const

virtual int	unlock (const LockSpecification &rLockSpecification) const

virtual int	isLocked (EnLockMode eLockMode=LK_DELETEvWRITE, EnDeepMode eDeepMode=DM_SHALLOW) const

virtual int	isLocked (const LockSpecification &rLockSpecification) const

virtual int	isPossible (bool bRead, bool bWrite, bool bDelete, EnDeepMode eDeepMode=DM_SHALLOW) const

virtual int	isPossible (const LockPossibleSpecification &rLockPossibleSpec, EnDeepMode eDeepMode=DM_SHALLOW) const

virtual int	setWatch (TdWatchNotifyMode ulWatchMode, EnDeepMode eDeepMode, CallBack *pCallBack=0) const

virtual int	setWatch (const WatchSpecification &rWatchSpec) const

virtual int	unsetWatch (TdWatchNotifyMode ulWatchMode, EnDeepMode eDeepMode, CallBack *pCallBack) const

virtual int	unsetWatch (const WatchSpecification &rWatchSpec) const

Reference &	operator= (const Reference &rT)


bool	operator== (const Reference &rT) const
	Comparison operator.

bool	operator!= (const Reference &rT) const
	Comparison operator.

Public Member Functions inherited from glo::CallBack
	CallBack ()

virtual	~CallBack ()

virtual void	notify (NotifyNote &rNote)

CallBack &	operator= (const CallBack &rT)

bool	operator== (const CallBack &rT) const
	Comparison operator, all attributes are compared.

bool	operator!= (const CallBack &rT) const
	Comparison operator, all attributes are compared.

Private Attributes
unsigned long	m_ulDatabaseID

ObjID	m_RefObjID

Friends
class	ObjectMaker

class	OndemandLot

class	OndemandList

class	OndemandSet

class	TableReaderInterface

class	BaseAllSet

class	Base

class	OdRefRecordAttribute

Additional Inherited Members
Public Attributes inherited from glo::CallBack
std::string	m_strDebugInfo

Protected Member Functions inherited from glo::CallBack
	CallBack (const CallBack &rT)

void	init ()

void	deinit ()

Detailed Description

The base class of a reference attribute from persistent objects to other persistent objects in the database.

Copyright: © 2010 Helmut Jakoby

Author: Helmut Jakoby

Constructor & Destructor Documentation

◆ Reference() [1/7]

glo::Reference::Reference ( )

Standard constructor.

◆ Reference() [2/7]

glo::Reference::Reference ( const ObjID & rObjID )

Constructor with parameter passing.

Parameters

[in] rObjID The object ID of the object to be referenced can be specified during creation.

◆ Reference() [3/7]

glo::Reference::Reference ( Base & rBase )

Constructor with parameter passing.

Parameters

[in] rBase The authoritative database can be specified during the creation.

◆ Reference() [4/7]

glo::Reference::Reference ( unsigned long ulDatabaseID )

Constructor with parameter passing.

Parameters

[in] ulDatabaseID The authoritative database id can be specified during the creation.

◆ Reference() [5/7]

glo::Reference::Reference	(	const ObjID &	rObjID,
		Base &	rBase )

Constructor with parameter passing.

Parameters

[in]	rObjID	The object ID of the object to be referenced and...
[in]	rBase	...the relevant database can be specified during creation.

Exceptions

eut::ErrorNException If the database IDs of the passed object ID and the database do not match, an exception is thrown.

◆ Reference() [6/7]

glo::Reference::Reference	(	const ObjID &	rObjID,
		unsigned long	ulDatabaseID )

Constructor with parameter passing.

Parameters

[in]	rObjID	The object ID of the object to be referenced and...
[in]	ulDatabaseID	...the relevant database id can be specified during creation.

Exceptions

eut::ErrorNException If the database IDs of the passed object ID and the database do not match, an exception is thrown.

◆ Reference() [7/7]

glo::Reference::Reference ( const Reference & rT )

Copy constructor.

Parameters

[in] rT The data is copied from this object.

◆ ~Reference()

virtual glo::Reference::~Reference ( )

virtual

Destructor.

Member Function Documentation

◆ deleteInBase()

virtual int glo::Reference::deleteInBase ( EnDeepMode eDeepMode = DM_SHALLOW )

virtual

Referenced object is deleted from the database.

Parameters

[in] eDeepMode The Deep Mode

Returns: A return < 0 indicates an error.

◆ getBase()

virtual Base * glo::Reference::getBase ( ) const

overridevirtual

Returns: Returns pointers to the database.

Attention: The object returned must not be removed from memory by the calling instance.

See also: setBase(Base*)

Reimplemented from glo::CallBack.

◆ getObjID()

ObjID glo::Reference::getObjID ( ) const

Returns the object ID of the reference.

Returns: See above.

◆ getObjIDAsPointer()

const ObjID * glo::Reference::getObjIDAsPointer ( ) const

Returns the object ID of the reference as pointer.

Returns: See above.

◆ getReference() [1/2]

int glo::Reference::getReference ( BasePersistent *& prRetVal )

Returns the referenced object from the database (or from memory if already loaded).

Parameters

[in,out] prRetVal The referenced object.

Returns: A return value < 0 indicates an error.

Attention: The returned object must be removed from memory by the calling instance using BasePersistent::forget().

Note: It is recommended, if possible, to consider using std::shared_ptr and to use the method getReference(std::shared_ptr<BasePersistent>&).

◆ getReference() [2/2]

int glo::Reference::getReference ( std::shared_ptr< BasePersistent > & sprRetVal )

Returns the referenced object from the database (or from memory if already loaded).

Parameters

[in,out] sprRetVal The referenced object.

Returns: A return value < 0 indicates an error.

◆ getTypeAsString()

virtual int glo::Reference::getTypeAsString ( std::string & rsTypeName )

overridevirtual

Returns the type of the reference, i.e. the class name as string when connected to the database.

Parameters

[in,out] rsTypeName The type name.

Returns: If return value < 0, then an error has occurred.

Reimplemented from glo::CallBack.

◆ isLocked() [1/2]

virtual int glo::Reference::isLocked ( const LockSpecification & rLockSpecification ) const

virtual

Checks if referenced object is locked in the database with the passed parameters.

Parameters

[in] rLockSpecification The lock and lock depth mode.

Returns: If > 0, the object is locked in the database. A return value < 0 indicates an error.

See also: Check object for locks or access possibilities.

◆ isLocked() [2/2]

virtual int glo::Reference::isLocked	(	EnLockMode	eLockMode = LK_DELETEvWRITE,
		EnDeepMode	eDeepMode = DM_SHALLOW ) const

virtual

Checks if referenced object is locked in the database with the passed parameters.

Parameters

[in]	eLockMode	The lock mode.
[in]	eDeepMode	The lock depth mode.

Returns: If > 0, the object is locked in the database. A return value < 0 indicates an error.

See also: Check object for locks or access possibilities.

◆ isNULL()

bool glo::Reference::isNULL ( ) const

Checks if the reference is formally valid.

Returns: Returns true if the reference is formally invalid.

◆ isPossible() [1/2]

virtual int glo::Reference::isPossible	(	bool	bRead,
		bool	bWrite,
		bool	bDelete,
		EnDeepMode	eDeepMode = DM_SHALLOW ) const

virtual

Checks the allowed actions for the referenced object in the database.

Parameters

[in]	bRead	If true, the read permission is checked.
[in]	bWrite	If true, the write permission is checked.
[in]	bDelete	If true, a check is made for delete permissions.
[in]	eDeepMode	The depth mode for which it is checked.

Returns: . If return == 0, the respective action is allowed. A return < 0 indicates an error.

See also: Check object for locks or access possibilities.

◆ isPossible() [2/2]

virtual int glo::Reference::isPossible	(	const LockPossibleSpecification &	rLockPossibleSpec,
		EnDeepMode	eDeepMode = DM_SHALLOW ) const

virtual

Checks the allowed actions for the referenced object in the database.

Parameters

[in]	rLockPossibleSpec	The possibility request.
[in]	eDeepMode	The depth mode for which it is checked.

Returns: . If return == 0, the respective action is allowed. A return < 0 indicates an error.

See also: Check object for locks or access possibilities.

◆ lock() [1/2]

virtual int glo::Reference::lock ( const LockSpecification & rLockSpecification ) const

virtual

The referenced object is locked in the database for other clients.

Parameters

[in] rLockSpecification The lock- and lock depth mode.

Returns: A return value < 0 indicates an error.

Note: To unlock the lock, the corresponding method unlock(const LockSpecification&) const with the same parameter value must be used.

See also: Locking a persistent object.

◆ lock() [2/2]

virtual int glo::Reference::lock	(	EnLockMode	eLockMode = LK_DELETEvWRITE,
		EnDeepMode	eDeepMode = DM_SHALLOW ) const

virtual

The referenced object is locked in the database for other clients.

Parameters

[in]	eLockMode	The lock mode.
[in]	eDeepMode	The lock depth mode.

Returns: A return value < 0 indicates an error.

Note: To unlock the lock, the corresponding method unlock(EnLockMode, EnDeepMode) const with the same parameter values must be used.

See also: Locking a persistent object.

◆ operator!=()

bool glo::Reference::operator!= ( const Reference & rT ) const

Comparison operator.

Parameters

[in] rT The object to be compared with this one.

◆ operator=()

Reference & glo::Reference::operator= ( const Reference & rT )

Assignment operator.

Parameters

[in] rT The data is transferred from this object.

◆ operator==()

bool glo::Reference::operator== ( const Reference & rT ) const

Comparison operator.

Parameters

[in] rT The object to be compared with this one.

◆ setBase()

virtual int glo::Reference::setBase ( Base * pBase )

overridevirtual

Sets the pointer to the database.

Parameters

[in] pBase Pointer to the database.

Returns: If return value < 0, then an error has occurred.

Attention: The database remains the responsibility of the calling instance. If, for example, the database is removed from memory, setBase(Base*) must first be called with nullptr or removeBase().

Reimplemented from glo::CallBack.

◆ setNULL()

void glo::Reference::setNULL ( )

Sets the reference to formally invalid.

◆ setReference() [1/3]

int glo::Reference::setReference ( const BasePersistent & rObj )

Adopts the object ID of the passed object as reference. Both objects, this and the object to be referenced must be logged on to the same database.

Parameters

[in] rObj The object ID of the object to be referenced.

Returns: A return value < 0 indicates an error.

◆ setReference() [2/3]

int glo::Reference::setReference ( const BasePersistent * pObj )

Adopts the object ID of the passed object as reference. Both objects, this and the object to be referenced must be logged on to the same database.

Parameters

[in] pObj The object ID of the object to be referenced.

Returns: A return value < 0 indicates an error.

◆ setReference() [3/3]

virtual int glo::Reference::setReference ( const ObjID & rObjID )

virtual

Adopts the object ID.

Parameters

[in] rObjID The object ID of the object to be referenced.

Returns: A return value < 0 indicates an error.

Reimplemented in glo::TOndemand< T >.

◆ setWatch() [1/2]

virtual int glo::Reference::setWatch ( const WatchSpecification & rWatchSpec ) const

virtual

The referenced object is monitored in the database.

Parameters

[in] rWatchSpec The monitoring specification.

Returns: A return < 0 indicates an error.

Note: To cancel the monitoring, the corresponding method unsetWatch(const WatchSpecification&) const must be used with the same parameter values.

See also: Watch and notify.

◆ setWatch() [2/2]

virtual int glo::Reference::setWatch	(	TdWatchNotifyMode	ulWatchMode,
		EnDeepMode	eDeepMode,
		CallBack *	pCallBack = 0 ) const

virtual

The referenced object is monitored in the database.

Parameters

[in]	ulWatchMode	The watch mode. Allowed watch modes: ::WNM_WRITE = writing is reported ::WNM_WRITE_TRANSACTION = like ::WNM_WRITE, but triggered in a transaction ::WNM_DELETE = delete is reported ::WNM_DELETE_TRANSACTION = like ::WNM_DELETE, but triggered in a transaction ::WNM_LOCK = lock is reported ::WNM_UNLOCK = release is reported
[in]	eDeepMode	The watching depth mode.
[in]	pCallBack	The CallBack object that is notified via its method CallBack::notify(NotifyNote&). If no CallBack is passed, notify(NotifyNote&) is taken from this; in this case the method notify(NotifyNote&) should be overwritten in the respective derived class.

Returns: A return value < 0 indicates an error.

Note: To remove the monitoring, the corresponding method unsetWatchObject(TdWatchNotifyMode, EnDeepMode, CallBack*) const with same parameter values can be used.

Attention: Basically pCallBack must not be destroyed before the monitoring has been cancelled!

See also: Watch and notify.

◆ unlock() [1/2]

virtual int glo::Reference::unlock ( const LockSpecification & rLockSpecification ) const

virtual

The referenced object is released in the database. A lock release must be called with the same parameters as the previous lock call.

Parameters

[in] rLockSpecification The original lock and lock depth mode.

Returns: A return value < 0 indicates an error.

Note: Removes the lock initiated by the corresponding method lock(const LockSpecification&) const if the parameter has the same values.

See also: Locking a persistent object.

◆ unlock() [2/2]

virtual int glo::Reference::unlock	(	EnLockMode	eLockMode = LK_DELETEvWRITE,
		EnDeepMode	eDeepMode = DM_SHALLOW ) const

virtual

The referenced object is released in the database. A lock release must be called with the same parameters as the previous lock call.

Parameters

[in]	eLockMode	The original lock mode.
[in]	eDeepMode	The original lock depth mode.

Returns: A return < 0 indicates an error.

Note: Removes the lock initiated by the corresponding method lock(EnLockMode, EnDeepMode) const if the parameters have the same values.

See also: Locking a persistent object.

◆ unsetWatch() [1/2]

virtual int glo::Reference::unsetWatch ( const WatchSpecification & rWatchSpec ) const

virtual

The monitoring of the referenced object in the database is terminated. A monitoring termination must be called with the same parameters as the previous monitoring.

Parameters

[in] rWatchSpec The original monitoring specification.

Returns: A return < 0 indicates an error.

Note: Clears the monitoring initiated by the corresponding method setWatch(const WatchSpecification&) const if the parameters have the same values.

See also: Watch and notify.

◆ unsetWatch() [2/2]

virtual int glo::Reference::unsetWatch	(	TdWatchNotifyMode	ulWatchMode,
		EnDeepMode	eDeepMode,
		CallBack *	pCallBack ) const

virtual

The monitoring of the referenced object in the database is terminated. A monitoring termination must be called with the same parameters as the previous monitoring.

Parameters

[in]	ulWatchMode	The original watch mode. Allowed watch modes: ::WNM_WRITE = writing is reported ::WNM_WRITE_TRANSACTION = like ::WNM_WRITE, but triggered in a transaction ::WNM_DELETE = delete is reported ::WNM_DELETE_TRANSACTION = like ::WNM_DELETE, but triggered in a transaction ::WNM_LOCK = lock is reported ::WNM_UNLOCK = release is reported
[in]	eDeepMode	The original monitoring depth mode.
[in]	pCallBack	The CallBack object that is notified via its method CallBack::notify(NotifyNote&). If no CallBack is passed, notify(NotifyNote&) is taken from this; in this case the method notify(NotifyNote&) should be overwritten in the respective derived class.

Returns: A return value < 0 indicates an error.

Note: Clears the monitoring initiated by the corresponding method setWatchObject(TdWatchNotifyMode, EnDeepMode, CallBack*) const if the parameters have the same values.

See also: Watch and notify.

Friends And Related Symbol Documentation

◆ Base

friend class Base

friend

◆ BaseAllSet

friend class BaseAllSet

friend

◆ ObjectMaker

friend class ObjectMaker

friend

◆ OdRefRecordAttribute

friend class OdRefRecordAttribute

friend

◆ OndemandList

friend class OndemandList

friend

◆ OndemandLot

friend class OndemandLot

friend

◆ OndemandSet

friend class OndemandSet

friend

◆ TableReaderInterface

friend class TableReaderInterface

friend

Member Data Documentation

◆ m_RefObjID

ObjID glo::Reference::m_RefObjID

private

The reference to a persistent object as object ID.

◆ m_ulDatabaseID

unsigned long glo::Reference::m_ulDatabaseID

private

The reference to a database via the database ID.

The documentation for this class was generated from the following file:

GloReference.h

Public Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Reference() [1/7]

◆ Reference() [2/7]

◆ Reference() [3/7]

◆ Reference() [4/7]

◆ Reference() [5/7]

◆ Reference() [6/7]

◆ Reference() [7/7]

◆ ~Reference()

Member Function Documentation

◆ deleteInBase()

◆ getBase()

◆ getObjID()

◆ getObjIDAsPointer()

◆ getReference() [1/2]

◆ getReference() [2/2]

◆ getTypeAsString()

◆ isLocked() [1/2]

◆ isLocked() [2/2]

◆ isNULL()

◆ isPossible() [1/2]

◆ isPossible() [2/2]

◆ lock() [1/2]

◆ lock() [2/2]

◆ operator!=()

◆ operator=()

◆ operator==()

◆ setBase()

◆ setNULL()

◆ setReference() [1/3]

◆ setReference() [2/3]

◆ setReference() [3/3]

◆ setWatch() [1/2]

◆ setWatch() [2/2]

◆ unlock() [1/2]

◆ unlock() [2/2]

◆ unsetWatch() [1/2]

◆ unsetWatch() [2/2]

Friends And Related Symbol Documentation

◆ Base

◆ BaseAllSet

◆ ObjectMaker

◆ OdRefRecordAttribute

◆ OndemandList

◆ OndemandLot

◆ OndemandSet

◆ TableReaderInterface

Member Data Documentation

◆ m_RefObjID

◆ m_ulDatabaseID
