The base class of the persistent classes. All persistent classes must be derived from this class to be able to process their objects in the database. More...

#include <GloPersistent.h>

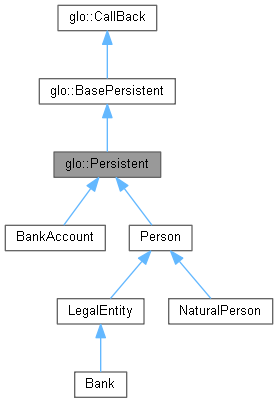

Inheritance diagram for glo::Persistent:

[legend]

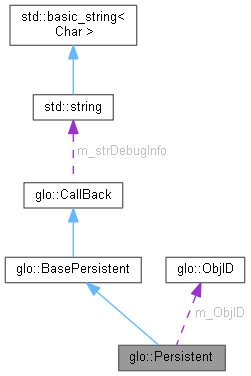

Collaboration diagram for glo::Persistent:

[legend]

Public Member Functions
	Persistent ()

	Persistent (const Persistent &rT)

virtual void	activate ()

virtual int	assign (Base &rBase) override

virtual void	removeBase () override

virtual ObjID	getObjID () const override

virtual std::time_t	getCreateDate () const override

virtual std::time_t	getLastChangeDate () const override

virtual void	takeOverRecord (Record *pRecord) override

virtual int	preStore (EnDeepMode eDeepMode, void *&prData)

virtual int	store (EnDeepMode eDeepMode=DM_SHALLOW) override

virtual void	postStore (int iStoreErr, EnDeepMode eDeepMode, void *pData)

virtual int	preDeleteInBase (EnDeepMode eDeepMode, void *&prData)

virtual int	deleteInBase (EnDeepMode eDeepMode=DM_SHALLOW) override

virtual void	postDeleteInBase (int iDeleteErr, EnDeepMode eDeepMode, void *pData)

virtual int	preRefresh (void *&prData)

virtual int	refresh () override

virtual void	postRefresh (int iRefreshErr, void *pData)

virtual int	preLock (EnLockMode eLockMode, EnDeepMode eDeepMode, void *&prData)

virtual int	lock (EnLockMode eLockMode=LK_DELETEvWRITE, EnDeepMode eDeepMode=DM_SHALLOW) override

virtual void	postLock (int iLockErr, EnLockMode eLockMode, EnDeepMode eDeepMode, void *pData)

virtual int	preRelock (EnLockMode eLockMode, EnDeepMode eDeepMode, void *&prData)

virtual int	relock (EnLockMode eLockMode=LK_DELETEvWRITE, EnDeepMode eDeepMode=DM_SHALLOW) override

virtual void	postRelock (int iLockErr, EnLockMode eLockMode, EnDeepMode eDeepMode, void *pData)

virtual int	preUnlock (EnLockMode eLockMode, EnDeepMode eDeepMode, void *&prData)

virtual int	unlock (EnLockMode eLockMode=LK_DELETEvWRITE, EnDeepMode eDeepMode=DM_SHALLOW) override

virtual void	postUnlock (int iUnlockErr, EnLockMode eLockMode, EnDeepMode eDeepMode, void *pData)

virtual int	preSetWatch (TdWatchNotifyMode ulWatchMode, EnDeepMode eDeepMode, CallBack pCallBack, void &prData)

virtual int	setWatch (TdWatchNotifyMode ulWatchMode, EnDeepMode eDeepMode, CallBack *pCallBack=0) override

virtual void	postSetWatch (int iSetWatchErr, TdWatchNotifyMode ulWatchMode, EnDeepMode eDeepMode, CallBack pCallBack, void pData)

virtual int	preUnsetWatch (TdWatchNotifyMode ulWatchMode, EnDeepMode eDeepMode, CallBack pCallBack, void &prData)

virtual int	unsetWatch (TdWatchNotifyMode ulWatchMode, EnDeepMode eDeepMode, CallBack *pCallBack=0) override

virtual void	postUnsetWatch (int iUnsetWatchErr, TdWatchNotifyMode ulWatchMode, EnDeepMode eDeepMode, CallBack pCallBack, void pData)

virtual unsigned long	getGloClassID () const override

virtual int	getTypeAsString (std::string &rsTypeName) override

virtual int	setGloAttribute (const AttributeID &rAttributeID, void *pPara)

virtual void *	getGloAttribute (const AttributeID &rAttributeID)

virtual int	setGloAttribute (const std::string &rstrAttributName, void *pPara)

virtual void *	getGloAttribute (const std::string &rstrAttributName)


virtual bool	isSameOrSuperClassFrom (const glo::Persistent *pPersistent) const
	Checks if passed object can be cast to this.

virtual bool	isSameOrSuperClassFrom (const std::shared_ptr< glo::Persistent > pPersistent) const
	Checks if passed object can be cast to this.

Public Member Functions inherited from glo::BasePersistent
	BasePersistent ()

	BasePersistent (const BasePersistent &rT)

virtual int	setBase (Base *pBase) override

virtual Base *	getBase () const override

virtual int	getClassInfo (ClassInfo *&prClassInfo)

virtual unsigned int	remember ()

virtual unsigned int	forget ()

virtual bool	isAssigned () const

unsigned int	getLinkCount () const

int	getRecord (Record *&prRecord) const

int	getRecord (std::shared_ptr< Record > &rRetVal) const

int	getAllPersAttributeNames (std::list< std::string > &rRetValList, const std::vector< unsigned long > *pClassIdVector=0) const

int	getAllPersAttributeNamesSortByID (std::map< AttributeID, std::string > &rRetValMap, const std::vector< unsigned long > *pClassIdVector=0) const

int	getPersAttribute (BaseRecordAttribute *&prRetVal, const std::string &sName) const

int	getPersAttribute (std::shared_ptr< BaseRecordAttribute > &rRetVal, const std::string &sName) const

int	getPersAttribute (BaseRecordAttribute *&prRetVal, const AttributeID &rAttributeID) const

int	getPersAttribute (std::shared_ptr< BaseRecordAttribute > &rRetVal, const AttributeID &rAttributeID) const

int	getAllPersAttributes (std::list< BaseRecordAttribute * > &rRetValList, const std::vector< unsigned long > *pClassIdVector=0) const

int	getAllPersAttributes (std::list< std::shared_ptr< BaseRecordAttribute > > &rRetValList, const std::vector< unsigned long > *pClassIdVector=0) const

int	getAllPersAttributesSortByName (std::map< std::string, BaseRecordAttribute , std::less< std::string > > &rRetValMap, const std::vector< unsigned long > pClassIdVector=0) const

int	getAllPersAttributesSortByName (std::map< std::string, std::shared_ptr< BaseRecordAttribute >, std::less< std::string > > &rRetValMap, const std::vector< unsigned long > *pClassIdVector=0) const

int	getAllPersAttributesSortByID (std::map< AttributeID, BaseRecordAttribute , std::less< AttributeID > > &rRetValMap, const std::vector< unsigned long > pClassIdVector=0) const

int	getAllPersAttributesSortByID (std::map< AttributeID, std::shared_ptr< BaseRecordAttribute >, std::less< AttributeID > > &rRetValMap, const std::vector< unsigned long > *pClassIdVector=0) const

virtual bool	isStored ()

virtual bool	isDeletedInBase ()

virtual int	lock (const LockSpecification &rLockSpecification)

virtual int	relock (const LockSpecification &rLockSpecification)

virtual int	unlock (const LockSpecification &rLockSpecification)

virtual int	isLocked (EnLockMode eLockMode=LK_DELETEvWRITE, EnDeepMode eDeepMode=DM_SHALLOW) const

virtual int	isLocked (const LockSpecification &rLockSpecification) const

virtual int	isPossible (bool bRead, bool bWrite, bool bDelete, EnDeepMode eDeepMode=DM_SHALLOW) const

virtual int	isPossible (const LockPossibleSpecification &rLockPossibleSpec, EnDeepMode eDeepMode=DM_SHALLOW) const

virtual int	getProcessingPossibilities (LockPossibleSpecification &rLockPossibleSpec, EnDeepMode eDeepMode=DM_SHALLOW) const

virtual int	setWatch (const WatchSpecification &rWatchSpec)

virtual int	unsetWatch (const WatchSpecification &rWatchSpec)

BasePersistent &	operator= (const BasePersistent &rT)

bool	operator== (const BasePersistent &rT) const
	Comparison operator, all attributes are compared.

bool	operator!= (const BasePersistent &rT) const
	Comparison operator, all attributes are compared.

Public Member Functions inherited from glo::CallBack
	CallBack ()

virtual	~CallBack ()

virtual void	notify (NotifyNote &rNote)

CallBack &	operator= (const CallBack &rT)

bool	operator== (const CallBack &rT) const
	Comparison operator, all attributes are compared.

bool	operator!= (const CallBack &rT) const
	Comparison operator, all attributes are compared.

Protected Member Functions
virtual	~Persistent ()

virtual void	insertInObjectSpy () const override

virtual void	removeInObjectSpy () const override

virtual void	setCreateDate () override

virtual void	_postAssign (Base &rBase)

Persistent &	operator= (const Persistent &rT)


bool	operator== (const Persistent &rT) const
	Comparison operator.

bool	operator!= (const Persistent &rT) const
	Comparison operator.

Protected Member Functions inherited from glo::BasePersistent
virtual	~BasePersistent ()

void	setSpyaction (bool bSpyaction)

Protected Member Functions inherited from glo::CallBack
	CallBack (const CallBack &rT)

void	init ()

void	deinit ()

Private Attributes
ObjID	m_ObjID

std::time_t	m_dtCreateDate

std::time_t	m_dtLastChange

Additional Inherited Members
Public Attributes inherited from glo::CallBack
std::string	m_strDebugInfo

Protected Attributes inherited from glo::BasePersistent
Base *	m_pBase

unsigned int	m_uiReferenceCount

eut::CriticalSection	m_LocalCriticalSection

Record *	m_pRecord

bool	m_bSpyaction

Detailed Description

The base class of the persistent classes. All persistent classes must be derived from this class to be able to process their objects in the database.

Objects of this type have a reference counter and must not be removed from memory using the destructor.
Objects with reference counters may only be instantiated once. When passing to another instance, the reference counter must be incremented using Persistent::remember().
If the owning instance no longer needs the object, the reference counter is decremented via Persistent::forget().
When the reference counter runs to 0, the destructor is called automatically.
This error-prone method can be avoided by using the std::shared_ptr if the Forgetter is passed when instantiating a persistent object.

Example (PersClass is the persistent class):

std::shared_ptr<PersClass> t_NewPersObject( new PersClass(), glo::Forgetter<PersClass>() );

Copyright: © 2010 Helmut Jakoby

Author: Helmut Jakoby

Constructor & Destructor Documentation

◆ Persistent() [1/2]

glo::Persistent::Persistent ( )

Standard constructor.

◆ ~Persistent()

virtual glo::Persistent::~Persistent ( )

protectedvirtual

Destructor, the object removes itself from the PersObjectSpy if inside.
The destructor is not available. The object may only be removed from memory using forget().

◆ Persistent() [2/2]

glo::Persistent::Persistent ( const Persistent & rT )

Copy constructor. No attributes of this class are copied!

m_dtCreateDate (0)
m_dtLastChange (0)

Member Function Documentation

◆ _postAssign()

virtual void glo::Persistent::_postAssign ( Base & rBase )

protectedvirtual

Called in BasePersistent::assign( Base & rBase ) if not error there. Used in derived classes to supply attributes of type glo::TOndemand and derived glo::BaseLot with the database.

Parameters

[in] rBase The database in wich the object is stored.

Attention: This method is used by GlobalObjects and extended in persistent subclasses. Ergo, this method must not be overwritten by the developer.

◆ activate()

virtual void glo::Persistent::activate ( )

virtual

Is always called after the fetch from the database.
In derived classes, you can, for example, set pointers to nullptr, set 'non-persistent' variables and/or perform other initializations.

◆ assign()

virtual int glo::Persistent::assign ( Base & rBase )

overridevirtual

By means of this method, an object of this class is made known to the database and (if successful) receives a unique ObjID (if not already registered).
Only after this method has been called can an object be saved. A persistent object only needs to be logged on to the database once, before it is saved for the first time. Afterwards it keeps its unique ObjID.

Parameters

[in] rBase The database in which the object is to be stored.

Returns: A return value < 0 indicates an error.

Note: The transferred database must be open.

Reimplemented from glo::BasePersistent.

◆ deleteInBase()

virtual int glo::Persistent::deleteInBase ( EnDeepMode eDeepMode = DM_SHALLOW )

overridevirtual

The object respectively its persistent attributes are deleted in the database.
Before deleting in the database, the method Persistent::preDeleteInBase(EnDeepMode,void*&) is called, which is given a pointer reference (which can be set in Persistent::preDeleteInBase(EnDeepMode,void*&)) in addition to the glo::EnDeepMode. After deleting or even if not successful. the method Persistent::postDeleteInBase(int,EnDeepMode,void*) is called.
If necessary, Persistent::preDeleteInBase(EnDeepMode,void*&) and Persistent::postDeleteInBase(int,EnDeepMode,void*) can be overwritten.

Parameters

[in] eDeepMode The deleting depth mode.

Returns: A return < 0 indicates an error.

Reimplemented from glo::BasePersistent.

◆ getCreateDate()

virtual std::time_t glo::Persistent::getCreateDate ( ) const

overridevirtual

Returns the date of creation in the database.

Returns: The creation date.

Implements glo::BasePersistent.

◆ getGloAttribute() [1/2]

virtual void * glo::Persistent::getGloAttribute ( const AttributeID & rAttributeID )

virtual

Returns a pointer to a persistent attribute.

Parameters

[in] rAttributeID The attribute ID of the attribute to be returned.

Returns: The void pointer to the persistent attribute.

Exceptions

eut::ErrorNException If attribute is not found, an exception is thrown.

Attention: This method must be overwritten in the subclasses that have at least one persistent attribute.

Note: This function is required by ObjectMaker.

◆ getGloAttribute() [2/2]

virtual void * glo::Persistent::getGloAttribute ( const std::string & rstrAttributName )

virtual

Returns a pointer to a persistent attribute.

Parameters

[in] rstrAttributName The name of the attribute to be set (e.g. "ClassName.AttributName").

Returns: The void pointer to the persistent attribute.

Exceptions

eut::ErrorNException If attribute is not found, an exception is thrown.

Attention: This method must be overwritten in the subclasses that have at least one persistent attribute.

◆ getGloClassID()

virtual unsigned long glo::Persistent::getGloClassID ( ) const

overridevirtual

Returns the own class ID.

Returns: The class ID

Attention: Must be overwritten in each subclass and return the respective class ID that matches the schema!

Implements glo::BasePersistent.

◆ getLastChangeDate()

virtual std::time_t glo::Persistent::getLastChangeDate ( ) const

overridevirtual

Returns the date of the last change in the database.

Returns: The change date.

Implements glo::BasePersistent.

◆ getObjID()

virtual ObjID glo::Persistent::getObjID ( ) const

overridevirtual

Returns: Returns the unique ObjID.

Reimplemented from glo::BasePersistent.

◆ getTypeAsString()

virtual int glo::Persistent::getTypeAsString ( std::string & rsTypeName )

overridevirtual

Returns the class name.

Parameters

[in,out] rsTypeName The type name.

Returns: If return value < 0, an error has occurred.

Reimplemented from glo::BasePersistent.

◆ insertInObjectSpy()

virtual void glo::Persistent::insertInObjectSpy ( ) const

overrideprotectedvirtual

Pastes the object into its ObjectSpy.

Implements glo::BasePersistent.

◆ isSameOrSuperClassFrom() [1/2]

virtual bool glo::Persistent::isSameOrSuperClassFrom ( const glo::Persistent * pPersistent ) const

virtual

Checks if passed object can be cast to this.

Parameters

[in] pPersistent Pointer to the object to be checked.

Returns: If true, the passed object is of the same type or a subclass of the object of this class..

◆ isSameOrSuperClassFrom() [2/2]

virtual bool glo::Persistent::isSameOrSuperClassFrom ( const std::shared_ptr< glo::Persistent > pPersistent ) const

virtual

Checks if passed object can be cast to this.

Parameters

[in] pPersistent Pointer to the object to be checked.

Returns: If true, the passed object is of the same type or a subclass of the object of this class..

◆ lock()

virtual int glo::Persistent::lock	(	EnLockMode	eLockMode = LK_DELETEvWRITE,
		EnDeepMode	eDeepMode = DM_SHALLOW )

overridevirtual

The object is locked in the database for other clients.
Before locking, the Persistent::preLock(EnLockMode,EnDeepMode,void*&) method is called, which is given a pointer reference (which can be set in Persistent::preLock(EnLockMode,EnDeepMode,void*&)). After locking, or even if it fails, the Persistent::postLock(int,EnLockMode,EnDeepMode,void*) method is called.
If necessary, Persistent::preLock(EnLockMode,EnDeepMode,void*&) and Persistent::postLock(int,EnLockMode,EnDeepMode,void*) can be overwritten.

Parameters

[in]	eLockMode	The lock mode.
[in]	eDeepMode	The lock depth mode.

Returns: A return value < 0 indicates an error.

Note: To unlock the lock, the corresponding method Persistent::unlock(EnLockMode, EnDeepMode) const with the same parameter values must be used.

See also: Locking a persistent object.

Reimplemented from glo::BasePersistent.

◆ operator!=()

bool glo::Persistent::operator!= ( const Persistent & rT ) const

protected

Comparison operator.

Parameters

[in] rT The object to be compared with this one.

◆ operator=()

Persistent & glo::Persistent::operator= ( const Persistent & rT )

protected

Assignment operator.

Parameters

[in] rT The data is transferred from this object.

◆ operator==()

bool glo::Persistent::operator== ( const Persistent & rT ) const

protected

Comparison operator.

Parameters

[in] rT The object to be compared with this one.

◆ postDeleteInBase()

virtual void glo::Persistent::postDeleteInBase	(	int	iDeleteErr,
		EnDeepMode	eDeepMode,
		void *	pData )

virtual

Is called in Persistent::deleteInBase(EnDeepMode) after deletion in the database or if deletion fails.

Parameters

[in]	iDeleteErr	Possibly a deleting error, if != 0 the deleteing in Persistent::deleteInBase(EnDeepMode) was not performed.
[in]	eDeepMode	The deleting depth mode.
[in]	pData	Data that may ben set in Persistent::preDeleteInBase(EnDeepMode,void**).

Attention: Care must be taken to avoid problems with circular calls.

◆ postLock()

virtual void glo::Persistent::postLock	(	int	iLockErr,
		EnLockMode	eLockMode,
		EnDeepMode	eDeepMode,
		void *	pData )

virtual

Called in Persistent::lock(EnLockMode,EnDeepMode) after attempting to lock the object.

Parameters

[in]	iLockErr	Possibly an error during locking. If !=0 the lock in Persistent::lock(EnLockMode,EnDeepMode) was not performed.
[in]	eLockMode	The lock mode.
[in]	eDeepMode	The lock depth mode.
[in]	pData	Data that may ben set in Persistent::preLock(EnLockMode,EnDeepMode,void**).

Attention: Care must be taken to avoid problems with circular calls.

◆ postRefresh()

virtual void glo::Persistent::postRefresh	(	int	iRefreshErr,
		void *	pData )

virtual

This method is called in Persistent::refresh() after the attempt to reread the persistent attributes of the object.

Parameters

[in]	iRefreshErr	Possibly an error during the refresh. If !=0 the refresh in Persistent::refresh() was not performed.
[in]	pData	Data that may ben set in Persistent::preRefresh(void**).

Attention: Care must be taken to avoid problems with circular calls.

◆ postRelock()

virtual void glo::Persistent::postRelock	(	int	iLockErr,
		EnLockMode	eLockMode,
		EnDeepMode	eDeepMode,
		void *	pData )

virtual

Called in Persistent::lock(EnLockMode,EnDeepMode) after attempting to lock the object.

Parameters

[in]	iLockErr	Possibly an error during locking. If !=0 the lock in Persistent::lock(EnLockMode,EnDeepMode) was not performed.
[in]	eLockMode	The lock mode.
[in]	eDeepMode	The lock depth mode.
[in]	pData	Data that may ben set in Persistent::preRelock(EnLockMode,EnDeepMode,void**).

Attention: Care must be taken to avoid problems with circular calls.

◆ postSetWatch()

virtual void glo::Persistent::postSetWatch	(	int	iSetWatchErr,
		TdWatchNotifyMode	ulWatchMode,
		EnDeepMode	eDeepMode,
		CallBack *	pCallBack,
		void *	pData )

virtual

Is called in Persistent::setWatch(TdWatchNotifyMode,EnDeepMode,CallBack*) after setting the watching.

Parameters

[in]	iSetWatchErr	Possibly an error when setting the watching. If !=0 the setting of the watching in Persistent::setWatch(TdWatchNotifyMode,EnDeepMode,CallBack*) was not performed.
[in]	ulWatchMode	The watch mode.
[in]	eDeepMode	The watching depth mode.
[in]	pCallBack	The CallBack object that is notified via its method CallBack::notify(NotifyNote&).
[in]	pData	Data that may ben set in Persistent::preUnlock(EnLockMode,EnDeepMode,void**).

Attention: Care must be taken to avoid problems with circular calls.

◆ postStore()

virtual void glo::Persistent::postStore	(	int	iStoreErr,
		EnDeepMode	eDeepMode,
		void *	pData )

virtual

Is called in Persistent::store(EnDeepMode) after storing.

Parameters

[in]	iStoreErr	Possibly a storage error, if != 0 the storing in Persistent::store(EnDeepMode) was not performed.
[in]	eDeepMode	The storage depth mode.
[in]	pData	Data that may ben set in Persistent::preStore(EnDeepMode,void**).

Attention: Care must be taken to avoid problems with circular calls.

◆ postUnlock()

virtual void glo::Persistent::postUnlock	(	int	iUnlockErr,
		EnLockMode	eLockMode,
		EnDeepMode	eDeepMode,
		void *	pData )

virtual

Called in Persistent::unlock(EnLockMode,EnDeepMode) after attempting to unlock the object.

Parameters

[in]	iUnlockErr	Possibly an error during unlocking. If !=0 the unlocking in Persistent::unlock(EnLockMode,EnDeepMode) was not performed.
[in]	eLockMode	The lock mode.
[in]	eDeepMode	The lock depth mode.
[in]	pData	Data that may ben set in Persistent::preUnlock(EnLockMode,EnDeepMode,void**).

Attention: Care must be taken to avoid problems with circular calls.

◆ postUnsetWatch()

virtual void glo::Persistent::postUnsetWatch	(	int	iUnsetWatchErr,
		TdWatchNotifyMode	ulWatchMode,
		EnDeepMode	eDeepMode,
		CallBack *	pCallBack,
		void *	pData )

virtual

Called in Persistent::unsetWatch(TdWatchNotifyMode,EnDeepMode,CallBack*) after watching is stopped.

Parameters

[in]	iUnsetWatchErr	Possibly an error when stopping the watching. If !=0 the watching was not stopped in Persistent::unsetWatch(TdWatchNotifyMode,EnDeepMode,CallBack*).
[in]	ulWatchMode	The original watch mode.
[in]	eDeepMode	The original watching depth mode.
[in]	pCallBack	The CallBack object that was notified via its method CallBack::notify(NotifyNote&).
[in]	pData	Data that may ben set in Persistent::preUnlock(EnLockMode,EnDeepMode,void**).

Attention: Care must be taken to avoid problems with circular calls.

◆ preDeleteInBase()

virtual int glo::Persistent::preDeleteInBase	(	EnDeepMode	eDeepMode,
		void *&	prData )

virtual

Is called in Persistent::deleteInBase(EnDeepMode) before deleting in the database.

Parameters

[in]	eDeepMode	The deleting depth mode.
[in]	prData	This reference can be used to pass data instantiated in this method to Persistent::postDeleteInBase(int,EnDeepMode,void), which then has to be removed from memory in Persistent::postDeleteInBase(int,EnDeepMode,void).

Returns: A return < 0 indicates an error.

Note: If an error is returned, the deleting in Persistent::deleteInBase(EnDeepMode) is not performed and returns the error returned here.

Attention: If this method is overridden, do not call this in it, because this method always returns 0 as error.; Care must be taken to avoid problems with circular calls.

◆ preLock()

virtual int glo::Persistent::preLock	(	EnLockMode	eLockMode,
		EnDeepMode	eDeepMode,
		void *&	prData )

virtual

Is called in Persistent::lock(EnLockMode,EnDeepMode) before the object is locked in the database for other clients.

Parameters

[in]	eLockMode	The lock mode.
[in]	eDeepMode	The lock depth mode.
[in]	prData	This reference can be used to pass data instantiated in this method to Persistent::postLock(int,EnLockMode,EnDeepMode,void), which then has to be removed from memory in Persistent::postLock(int,EnLockMode,EnDeepMode,void).

Returns: A return < 0 indicates an error.

Note: If an error is returned, the locking in Persistent::lock(EnLockMode,EnDeepMode) is not performed and itself returns the error that occurred here.

Attention: If this method is overridden, do not call this in it, because this method always returns 0 as error.; Care must be taken to avoid problems with circular calls.

◆ preRefresh()

virtual int glo::Persistent::preRefresh ( void *& prData )

virtual

Is called in Persistent::refresh() before all persistent attributes of the object are re-read from the database.

Parameters

[in] prData This reference can be used to pass data instantiated in this method to Persistent::postRefresh(int,void*), which then has to be removed from memory in Persistent::postRefresh(int,void*).

Returns: A return < 0 indicates an error.

Note: If an error is returned, the reread in Persistent::refresh() is not performed and returns the error encountered here.

Attention: If this method is overridden, do not call this in it, because this method always returns 0 as error.; Care must be taken to avoid problems with circular calls.

◆ preRelock()

virtual int glo::Persistent::preRelock	(	EnLockMode	eLockMode,
		EnDeepMode	eDeepMode,
		void *&	prData )

virtual

Is called in Persistent::relock(EnLockMode,EnDeepMode) before the object is relocked in the database for other clients.

Parameters

[in]	eLockMode	The lock mode.
[in]	eDeepMode	The lock depth mode.
[in]	prData	This reference can be used to pass data instantiated in this method to Persistent::postRelock(int,EnLockMode,EnDeepMode,void), which then has to be removed from memory in Persistent::postRelock(int,EnLockMode,EnDeepMode,void).

Returns: A return < 0 indicates an error.

Note: If an error is returned, the locking in Persistent::lock(EnLockMode,EnDeepMode) is not performed and itself returns the error that occurred here.

Attention: If this method is overridden, do not call this in it, because this method always returns 0 as error.; Care must be taken to avoid problems with circular calls.

◆ preSetWatch()

virtual int glo::Persistent::preSetWatch	(	TdWatchNotifyMode	ulWatchMode,
		EnDeepMode	eDeepMode,
		CallBack *	pCallBack,
		void *&	prData )

virtual

Is called in Persistent::setWatch(TdWatchNotifyMode,EnDeepMode,CallBack*) before watching is initiated.

Parameters

[in]	ulWatchMode	The watch mode.
[in]	eDeepMode	The watching depth mode.
[in]	pCallBack	The CallBack object that is notified via its method CallBack::notify(NotifyNote&).
[in]	prData	This reference can be used to pass data instantiated in this method to Persistent::postSetWatch(int,TdWatchNotifyMode,EnDeepMode,CallBack,void), which then has to be removed from memory in Persistent::postSetWatch(int,TdWatchNotifyMode,EnDeepMode,CallBack,void).

Returns: A return < 0 indicates an error.

Note: If an error is returned, the watching in Persistent::setWatch(TdWatchNotifyMode,EnDeepMode,CallBack*) is not performed and returns the error that occurred here.

Attention: If this method is overridden, do not call this in it, because this method always returns 0 as error.; Care must be taken to avoid problems with circular calls.

◆ preStore()

virtual int glo::Persistent::preStore	(	EnDeepMode	eDeepMode,
		void *&	prData )

virtual

Is called in Persistent::store(EnDeepMode) before storing.

Parameters

[in]	eDeepMode	The storage depth mode.
[in]	prData	This reference can be used to pass data instantiated in this method to Persistent::postStore(int,EnDeepMode,void), which then has to be removed from memory in Persistent::postStore(int,EnDeepMode,void).

Returns: A return < 0 indicates an error.

Note: If an error is returned, the storing in Persistent::store(EnDeepMode) is not performed and returns the error returned here.

Attention: If this method is overridden, do not call this in it, because this method always returns 0 as error.; Care must be taken to avoid problems with circular calls.

◆ preUnlock()

virtual int glo::Persistent::preUnlock	(	EnLockMode	eLockMode,
		EnDeepMode	eDeepMode,
		void *&	prData )

virtual

Called in Persistent::unLock(EnLockMode,EnDeepMode) before the object in the database is shared with other clients.

Parameters

[in]	eLockMode	The original lock mode.
[in]	eDeepMode	The original lock depth mode.
[in]	prData	This reference can be used to pass data instantiated in this method to Persistent::postUnlock(int,EnLockMode,EnDeepMode,void), which then has to be removed from memory in Persistent::postUnlock(int,EnLockMode,EnDeepMode,void).

Returns: A return < 0 indicates an error.

Note: If an error is returned, the unlock in Persistent::unlock(EnLockMode,EnDeepMode) is not performed and returns the error that occurred here.

Attention: If this method is overridden, do not call this in it, because this method always returns 0 as error.; Care must be taken to avoid problems with circular calls.

◆ preUnsetWatch()

virtual int glo::Persistent::preUnsetWatch	(	TdWatchNotifyMode	ulWatchMode,
		EnDeepMode	eDeepMode,
		CallBack *	pCallBack,
		void *&	prData )

virtual

Called in Persistent::unsetWatch(TdWatchNotifyMode,EnDeepMode,CallBack*) before stopping watching.

Parameters

[in]	ulWatchMode	The original watch mode.
[in]	eDeepMode	The original watching depth mode.
[in]	pCallBack	The CallBack object that was notified via its method CallBack::notify(NotifyNote&).
[in]	prData	This reference can be used to pass data instantiated in this method to Persistent::postUnsetWatch(int,TdWatchNotifyMode,EnDeepMode,CallBack,void), which then has to be removed from memory in Persistent::postUnsetWatch(int,TdWatchNotifyMode,EnDeepMode,CallBack,void).

Returns: A return < 0 indicates an error.

Note: If an error is returned, the monitoring in Persistent::unsetWatch(TdWatchNotifyMode,EnDeepMode,CallBack*) is not terminated and returns the error that occurred here.

Attention: If this method is overridden, do not call this in it, because this method always returns 0 as error.; Care must be taken to avoid problems with circular calls.

◆ refresh()

virtual int glo::Persistent::refresh ( )

overridevirtual

Reads all persistent attributes of the object from the database again.
The Persistent::preRefresh(void*&) method is called before the refresh, and a pointer reference (which can be set in Persistent::preRefresh(void*&) ) is given to it. After the refresh, or even if it fails, the Persistent::postRefresh(int,void*) method is called.
If necessary, Persistent::preRefresh(void*&) and Persistent::postRefresh(int,void*) can be overwritten.

Returns: A return value < 0 indicates an error.

Note: If the object is in a transaction that is not yet completed, the values are retrieved from the transaction.

See also: GlobalObjects Transaction.

Reimplemented from glo::BasePersistent.

◆ relock()

virtual int glo::Persistent::relock	(	EnLockMode	eLockMode = LK_DELETEvWRITE,
		EnDeepMode	eDeepMode = DM_SHALLOW )

overridevirtual

This method executes an unlock(const LockSpecification&) and then a lock(const LockSpecification&) of an already locked object, whereby newly referenced objects are also locked, depending on the locking mode, if possible, and previously locked referenced objects are released. If newly referenced objects cannot be locked, the previous locked state is retained.
Before relocking, the Persistent::preRelock(EnLockMode,EnDeepMode,void*&) method is called, which is given a pointer reference (which can be set in Persistent::preRelock(EnLockMode,EnDeepMode,void*&)). After relocking, or even if it fails, the Persistent::postRelock(int,EnLockMode,EnDeepMode,void*) method is called.
If necessary, Persistent::preRelock(EnLockMode,EnDeepMode,void*&) and Persistent::postRelock(int,EnLockMode,EnDeepMode,void*) can be overwritten.

Parameters

[in]	eLockMode	The lock mode.
[in]	eDeepMode	The lock depth mode.

Returns: A return value < 0 indicates an error.

Note: To unlock the lock, the corresponding method Persistent::unlock(EnLockMode, EnDeepMode) const with the same parameter values must be used.

See also: Locking a persistent object.

Reimplemented from glo::BasePersistent.

◆ removeBase()

virtual void glo::Persistent::removeBase ( )

overridevirtual

Removes the reference to the database and removes itself from the PersObjectSpy, if inside.

Reimplemented from glo::BasePersistent.

◆ removeInObjectSpy()

virtual void glo::Persistent::removeInObjectSpy ( ) const

overrideprotectedvirtual

Removes the object from its ObjectSpy.

Implements glo::BasePersistent.

◆ setCreateDate()

virtual void glo::Persistent::setCreateDate ( )

overrideprotectedvirtual

Sets the creation date to 'now'.

Implements glo::BasePersistent.

◆ setGloAttribute() [1/2]

virtual int glo::Persistent::setGloAttribute	(	const AttributeID &	rAttributeID,
		void *	pPara )

virtual

Sets a persistent attribute.

Parameters

[in]	rAttributeID	The attribute ID of the attribute to be set
[in]	pPara	The value to be set as void pointer, internally a static_cast is performed!

Returns: If attribute is not found, ::ERR_ATTRIBUTE_NOT_IN_SOURCE_OBJECT is returned.

Attention: This method must be overwritten in the subclasses that have at least one persistent attribute.

Note: This function is required by ObjectMaker.

◆ setGloAttribute() [2/2]

virtual int glo::Persistent::setGloAttribute	(	const std::string &	rstrAttributName,
		void *	pPara )

virtual

Sets a persistent attribute.

Parameters

[in]	rstrAttributName	The name of the attribute to be set (e.g. "ClassName.AttributName").
[in]	pPara	The value to be set as void pointer, internally a static_cast is performed!

Returns: If attribute is not found, ::ERR_ATTRIBUTE_NOT_IN_SOURCE_OBJECT is returned.

Attention: This method must be overwritten in the subclasses that have at least one persistent attribute.

◆ setWatch()

virtual int glo::Persistent::setWatch	(	TdWatchNotifyMode	ulWatchMode,
		EnDeepMode	eDeepMode,
		CallBack *	pCallBack = 0 )

overridevirtual

The object is monitored in the database.
Before watching the object, the Persistent::preSetWatch(TdWatchNotifyMode,EnDeepMode,CallBack*,void*&) method is called, which is given a pointer reference (which can be set in Persistent::preSetWatch(TdWatchNotifyMode,EnDeepMode,CallBack,void*&)). After the watch request, or even if it fails, the Persistent::postSetWatch(int,TdWatchNotifyMode,EnDeepMode,CallBack*,void*) method is called.
If necessary, Persistent::preSetWatch(TdWatchNotifyMode,EnDeepMode,CallBack*,void*&) and Persistent::postSetWatch(int,TdWatchNotifyMode,EnDeepMode,CallBack*,void*) can be overwritten.

Parameters

[in]	ulWatchMode	The watch mode. Allowed watch modes: ::WNM_WRITE = writing is reported ::WNM_WRITE_TRANSACTION = like ::WNM_WRITE, but triggered in a transaction ::WNM_DELETE = delete is reported ::WNM_DELETE_TRANSACTION = like ::WNM_DELETE, but triggered in a transaction ::WNM_LOCK = lock is reported ::WNM_UNLOCK = release is reported
[in]	eDeepMode	The watching depth mode.
[in]	pCallBack	The CallBack object that is notified via its method CallBack::notify(NotifyNote&). If no CallBack is passed, notify(NotifyNote&) is taken from this; in this case the method notify(NotifyNote&) should be overwritten in the respective derived class.

Returns: A return value < 0 indicates an error.

Note: To remove the monitoring, the corresponding method Persistent::unsetWatch(TdWatchNotifyMode, EnDeepMode, CallBack*) const with same parameter values can be used.

Attention: Basically pCallBack must not be destroyed before the monitoring has been cancelled!

See also: Watch and notify.

Reimplemented from glo::BasePersistent.

◆ store()

virtual int glo::Persistent::store ( EnDeepMode eDeepMode = DM_SHALLOW )

overridevirtual

The object respectively its persistent attributes are stored in the database.
Before storing, the method Persistent::preStore(EnDeepMode,void*&) is called, which is given a pointer reference (which can be set in Persistent::preStore(EnDeepMode,void*&)) in addition to the glo::EnDeepMode. After storing or even if not successful. the method Persistent::postStore(int,EnDeepMode,void*) is called.
if necessary, Persistent::preStore(EnDeepMode,void*&) and Persistent::postStore(int,EnDeepMode,void*) can be overwritten.

Parameters

[in] eDeepMode The storage depth mode.

Returns: A return < 0 indicates an error.

Note: The object must be known to the database respectively logged in there.

See also: BasePersistent::assign(Base&)

Reimplemented from glo::BasePersistent.

◆ takeOverRecord()

virtual void glo::Persistent::takeOverRecord ( Record * pRecord )

overridevirtual

Adopts transferred record if unequal to nullptr.

If a valid record is passed, m_dtCreateDate and m_dtLastChange will be taken from the record.

Parameters

[in] pRecord The record to be transferred.

Reimplemented from glo::BasePersistent.

◆ unlock()

virtual int glo::Persistent::unlock	(	EnLockMode	eLockMode = LK_DELETEvWRITE,
		EnDeepMode	eDeepMode = DM_SHALLOW )

overridevirtual

The object is released in the database. A lock release must be called with the same parameters as the previous lock call.
Before unlocking the method Persistent::preUnlock(EnLockMode,EnDeepMode,void*&) is called, which is given a pointer reference (which can be set in Persistent::preUnlock(EnLockMode,EnDeepMode,void*&)). After unlocking, or even if its fails, the Persistent::postUnlock(int,EnLockMode,EnDeepMode,void*) method is called.
If necessary, Persistent::preUnlock(EnLockMode,EnDeepMode,void*&) and Persistent::postUnlock(int,EnLockMode,EnDeepMode,void*) can be overwritten.

Parameters

[in]	eLockMode	The original lock mode.
[in]	eDeepMode	The original lock depth mode.

Returns: A return < 0 indicates an error.

Note: Removes the lock initiated by the corresponding method Persistent::lock(EnLockMode, EnDeepMode) const if the parameters have the same values.

See also: Locking a persistent object.

Reimplemented from glo::BasePersistent.

◆ unsetWatch()

virtual int glo::Persistent::unsetWatch	(	TdWatchNotifyMode	ulWatchMode,
		EnDeepMode	eDeepMode,
		CallBack *	pCallBack = 0 )

overridevirtual

The monitoring of the object in the database is terminated. A monitoring termination must be called with the same parameters as the previous monitoring.
Before the watching is stopped, the Persistent::preUnsetWatch(TdWatchNotifyMode,EnDeepMode,CallBack*,void*&) method is called, which is given a pointer reference (which can be set in Persistent::preUnsetWatch(TdWatchNotifyMode,EnDeepMode,CallBack,void*&)). After the watching is finished or even if it fails, the Persistent::postUnsetWatch(int,TdWatchNotifyMode,EnDeepMode,CallBack*,void*) method is called.
If necessary, Persistent::preUnsetWatch(TdWatchNotifyMode,EnDeepMode,CallBack*,void*&) and Persistent::postUnsetWatch(int,TdWatchNotifyMode,EnDeepMode,CallBack*,void*) can be overwritten.

Parameters

[in]	ulWatchMode	The original watch mode. Allowed watch modes: ::WNM_WRITE = writing is reported ::WNM_WRITE_TRANSACTION = like ::WNM_WRITE, but triggered in a transaction ::WNM_DELETE = delete is reported ::WNM_DELETE_TRANSACTION = like ::WNM_DELETE, but triggered in a transaction ::WNM_LOCK = lock is reported ::WNM_UNLOCK = release is reported
[in]	eDeepMode	The original monitoring depth mode.
[in]	pCallBack	The CallBack object that was notified via its method CallBack::notify(NotifyNote&). If no CallBack is passed, notify(NotifyNote&) is taken from this; in this case the method notify(NotifyNote&) should be overwritten in the respective derived class.

Returns: A return value < 0 indicates an error.

Note: Clears the monitoring initiated by the corresponding method Persistent::setWatch(TdWatchNotifyMode, EnDeepMode, CallBack*) const if the parameters have the same values.

See also: Watch and notify.

Reimplemented from glo::BasePersistent.

Member Data Documentation

◆ m_dtCreateDate

std::time_t glo::Persistent::m_dtCreateDate

private

The creation date is set in a database after a successful login.

◆ m_dtLastChange

std::time_t glo::Persistent::m_dtLastChange

private

The last modification date in the database will be set when successfully saved in a database.

◆ m_ObjID

ObjID glo::Persistent::m_ObjID

private

The ObjID. If a data record is referenced, the ObjID is retrieved from it.

The documentation for this class was generated from the following file:

GloPersistent.h

Public Member Functions

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Persistent() [1/2]

◆ ~Persistent()

◆ Persistent() [2/2]

Member Function Documentation

◆ _postAssign()

◆ activate()

◆ assign()

◆ deleteInBase()

◆ getCreateDate()

◆ getGloAttribute() [1/2]

◆ getGloAttribute() [2/2]

◆ getGloClassID()

◆ getLastChangeDate()

◆ getObjID()

◆ getTypeAsString()

◆ insertInObjectSpy()

◆ isSameOrSuperClassFrom() [1/2]

◆ isSameOrSuperClassFrom() [2/2]

◆ lock()

◆ operator!=()

◆ operator=()

◆ operator==()

◆ postDeleteInBase()

◆ postLock()

◆ postRefresh()

◆ postRelock()

◆ postSetWatch()

◆ postStore()

◆ postUnlock()

◆ postUnsetWatch()

◆ preDeleteInBase()

◆ preLock()

◆ preRefresh()

◆ preRelock()

◆ preSetWatch()

◆ preStore()

◆ preUnlock()

◆ preUnsetWatch()

◆ refresh()

◆ relock()

◆ removeBase()

◆ removeInObjectSpy()

◆ setCreateDate()

◆ setGloAttribute() [1/2]

◆ setGloAttribute() [2/2]

◆ setWatch()

◆ store()

◆ takeOverRecord()

◆ unlock()

◆ unsetWatch()

Member Data Documentation

◆ m_dtCreateDate

◆ m_dtLastChange

◆ m_ObjID
