Abstract base class for Persistent and the generic GenericPersistent. More...

#include <GloBasePersistent.h>

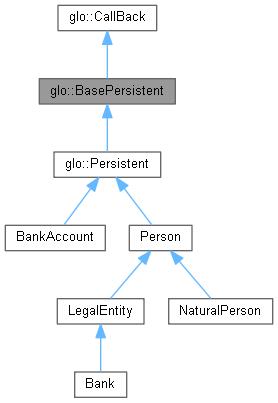

Inheritance diagram for glo::BasePersistent:

[legend]

Collaboration diagram for glo::BasePersistent:

[legend]

Public Member Functions
	BasePersistent ()

	BasePersistent (const BasePersistent &rT)

virtual int	setBase (Base *pBase) override

virtual Base *	getBase () const override

virtual void	removeBase ()

virtual int	getClassInfo (ClassInfo *&prClassInfo)

virtual int	getTypeAsString (std::string &rsTypeName) override

virtual std::time_t	getCreateDate () const =0

virtual std::time_t	getLastChangeDate () const =0

virtual unsigned int	remember ()

virtual unsigned int	forget ()

virtual int	assign (Base &rBase)

virtual bool	isAssigned () const

unsigned int	getLinkCount () const

virtual ObjID	getObjID () const

int	getRecord (Record *&prRecord) const

int	getRecord (std::shared_ptr< Record > &rRetVal) const

int	getAllPersAttributeNames (std::list< std::string > &rRetValList, const std::vector< unsigned long > *pClassIdVector=0) const

int	getAllPersAttributeNamesSortByID (std::map< AttributeID, std::string > &rRetValMap, const std::vector< unsigned long > *pClassIdVector=0) const

int	getPersAttribute (BaseRecordAttribute *&prRetVal, const std::string &sName) const

int	getPersAttribute (std::shared_ptr< BaseRecordAttribute > &rRetVal, const std::string &sName) const

int	getPersAttribute (BaseRecordAttribute *&prRetVal, const AttributeID &rAttributeID) const

int	getPersAttribute (std::shared_ptr< BaseRecordAttribute > &rRetVal, const AttributeID &rAttributeID) const

int	getAllPersAttributes (std::list< BaseRecordAttribute * > &rRetValList, const std::vector< unsigned long > *pClassIdVector=0) const

int	getAllPersAttributes (std::list< std::shared_ptr< BaseRecordAttribute > > &rRetValList, const std::vector< unsigned long > *pClassIdVector=0) const

int	getAllPersAttributesSortByName (std::map< std::string, BaseRecordAttribute , std::less< std::string > > &rRetValMap, const std::vector< unsigned long > pClassIdVector=0) const

int	getAllPersAttributesSortByName (std::map< std::string, std::shared_ptr< BaseRecordAttribute >, std::less< std::string > > &rRetValMap, const std::vector< unsigned long > *pClassIdVector=0) const

int	getAllPersAttributesSortByID (std::map< AttributeID, BaseRecordAttribute , std::less< AttributeID > > &rRetValMap, const std::vector< unsigned long > pClassIdVector=0) const

int	getAllPersAttributesSortByID (std::map< AttributeID, std::shared_ptr< BaseRecordAttribute >, std::less< AttributeID > > &rRetValMap, const std::vector< unsigned long > *pClassIdVector=0) const

virtual void	takeOverRecord (Record *pRecord)

virtual unsigned long	getGloClassID () const =0

virtual int	store (EnDeepMode eDeepMode=DM_SHALLOW)

virtual bool	isStored ()

virtual int	deleteInBase (EnDeepMode eDeepMode=DM_SHALLOW)

virtual bool	isDeletedInBase ()

virtual int	refresh ()

virtual int	lock (EnLockMode eLockMode=LK_DELETEvWRITE, EnDeepMode eDeepMode=DM_SHALLOW)

virtual int	lock (const LockSpecification &rLockSpecification)

virtual int	relock (EnLockMode eLockMode=LK_DELETEvWRITE, EnDeepMode eDeepMode=DM_SHALLOW)

virtual int	relock (const LockSpecification &rLockSpecification)

virtual int	unlock (EnLockMode eLockMode=LK_DELETEvWRITE, EnDeepMode eDeepMode=DM_SHALLOW)

virtual int	unlock (const LockSpecification &rLockSpecification)

virtual int	isLocked (EnLockMode eLockMode=LK_DELETEvWRITE, EnDeepMode eDeepMode=DM_SHALLOW) const

virtual int	isLocked (const LockSpecification &rLockSpecification) const

virtual int	isPossible (bool bRead, bool bWrite, bool bDelete, EnDeepMode eDeepMode=DM_SHALLOW) const

virtual int	isPossible (const LockPossibleSpecification &rLockPossibleSpec, EnDeepMode eDeepMode=DM_SHALLOW) const

virtual int	getProcessingPossibilities (LockPossibleSpecification &rLockPossibleSpec, EnDeepMode eDeepMode=DM_SHALLOW) const

virtual int	setWatch (TdWatchNotifyMode ulWatchMode, EnDeepMode eDeepMode, CallBack *pCallBack=0)

virtual int	setWatch (const WatchSpecification &rWatchSpec)

virtual int	unsetWatch (TdWatchNotifyMode ulWatchMode, EnDeepMode eDeepMode, CallBack *pCallBack=0)

virtual int	unsetWatch (const WatchSpecification &rWatchSpec)

BasePersistent &	operator= (const BasePersistent &rT)


bool	operator== (const BasePersistent &rT) const
	Comparison operator, all attributes are compared.

bool	operator!= (const BasePersistent &rT) const
	Comparison operator, all attributes are compared.

Public Member Functions inherited from glo::CallBack
	CallBack ()

virtual	~CallBack ()

virtual void	notify (NotifyNote &rNote)

CallBack &	operator= (const CallBack &rT)

bool	operator== (const CallBack &rT) const
	Comparison operator, all attributes are compared.

bool	operator!= (const CallBack &rT) const
	Comparison operator, all attributes are compared.

Protected Member Functions
virtual	~BasePersistent ()

virtual void	insertInObjectSpy () const =0

virtual void	removeInObjectSpy () const =0

virtual void	setCreateDate ()=0

void	setSpyaction (bool bSpyaction)

Protected Member Functions inherited from glo::CallBack
	CallBack (const CallBack &rT)

void	init ()

void	deinit ()

Protected Attributes
Base *	m_pBase

unsigned int	m_uiReferenceCount

eut::CriticalSection	m_LocalCriticalSection

Record *	m_pRecord

bool	m_bSpyaction

Friends
class	PrivateBase

Additional Inherited Members
Public Attributes inherited from glo::CallBack
std::string	m_strDebugInfo

Detailed Description

Abstract base class for Persistent and the generic GenericPersistent.

Objects of this type have a reference counter and must not be removed from memory using the destructor.
Objects with reference counters may only be instantiated once. When passing to another instance, the reference counter must be incremented using BasePersistent::remember().
If the owning instance no longer needs the object, the reference counter is decremented via BasePersistent::forget().
When the reference counter runs to 0, the destructor is called automatically.
This error-prone method can be avoided by using the std::shared_ptr if the Forgetter is passed when instantiating a persistent object.

Example (PersClass is the persistent class):

std::shared_ptr<PersClass> t_NewPersObject( new PersClass(), glo::Forgetter<PersClass>() );

Copyright: © 2010 Helmut Jakoby

Author: Helmut Jakoby

Constructor & Destructor Documentation

◆ BasePersistent() [1/2]

glo::BasePersistent::BasePersistent ( )

Standard constructor.

◆ ~BasePersistent()

virtual glo::BasePersistent::~BasePersistent ( )

protectedvirtual

Destructor, if necessary memory is cleared.
The destructor is not available. The object may only be removed from memory using forget().

◆ BasePersistent() [2/2]

glo::BasePersistent::BasePersistent ( const BasePersistent & rT )

Copy constructor. Only the pointer to the database is copied here.

m_pBase( rT.m_pBase )
m_uiReferenceCount (1)
m_pRecord (nullptr)
m_bSpyaction (true)

Member Function Documentation

◆ assign()

virtual int glo::BasePersistent::assign ( Base & rBase )

virtual

By means of this method, an object of this class is made known to the database and (if successful) receives a unique ObjID (if not already registered).
Only after this method has been called can an object be saved. A persistent object only needs to be logged on to the database once, before it is saved for the first time. Afterwards it keeps its unique ObjID.

Parameters

[in] rBase The database in which the object is to be stored.

Returns: A return value < 0 indicates an error.

Note: The transferred database must be open.

Reimplemented in glo::Persistent.

◆ deleteInBase()

virtual int glo::BasePersistent::deleteInBase ( EnDeepMode eDeepMode = DM_SHALLOW )

virtual

The object respectively its persistent attributes are deleted in the database.

Parameters

[in] eDeepMode The deleting depth mode.

Returns: A return < 0 indicates an error.

Reimplemented in glo::Persistent.

◆ forget()

virtual unsigned int glo::BasePersistent::forget ( )

virtual

An object of this class should always be delivered with a previous call to BasePersistent::remember(). The delivered instance must then 'forget' the object using this method.

Returns: The return value is the number of references to the object of this class.

Exceptions

eut::ErrorNException An exception is thrown if the reference counter wants to go into minus.

Note: It is recommended, if possible, to consider using std::shared_ptr in conjunction with Forgetter.

◆ getAllPersAttributeNames()

int glo::BasePersistent::getAllPersAttributeNames	(	std::list< std::string > &	rRetValList,
		const std::vector< unsigned long > *	pClassIdVector = 0 ) const

Returns all names of the persistent attributes from its record.

Parameters

[in,out]	rRetValList	The list of all attribute names.
[in]	pClassIdVector	If passed, only the attributes of the (super-) classes with the ClassID from pClassIdVector are transferred to rRetValMap.

Returns: A return < 0 indicates an error.

◆ getAllPersAttributeNamesSortByID()

int glo::BasePersistent::getAllPersAttributeNamesSortByID	(	std::map< AttributeID, std::string > &	rRetValMap,
		const std::vector< unsigned long > *	pClassIdVector = 0 ) const

Returns the names of the persistent attributes sorted by AttributeID from its record.

Parameters

[in,out]	rRetValMap	The list of all attribute names.
[in]	pClassIdVector	If passed, only the attributes of the (super-) classes with the ClassID from pClassIdVector are transferred to rRetValMap.

Returns: A return < 0 indicates an error.

◆ getAllPersAttributes() [1/2]

int glo::BasePersistent::getAllPersAttributes	(	std::list< BaseRecordAttribute * > &	rRetValList,
		const std::vector< unsigned long > *	pClassIdVector = 0 ) const

Returns all GloBaseRecordAttributes from his record.

Parameters

[in,out]	rRetValList	The attributes are appended to this list. The list is not cleaned up before.
[in]	pClassIdVector	If passed, only the attributes of the (super-) classes with the ClassID from pClassIdVector are transferred to rRetValList.

Returns: A return < 0 indicates an error.

Attention: The objects returned in rRetValList must be removed from memory by the calling instance using BaseRecordAttribute::forget().

Note: It is recommended, if possible, to consider using std::shared_ptr in conjunction with Forgetter and to use the method getAllPersAttributes(std::list<std::shared_ptr<BaseRecordAttribute>>&, const std::vector<unsigned long>*)const.

◆ getAllPersAttributes() [2/2]

int glo::BasePersistent::getAllPersAttributes	(	std::list< std::shared_ptr< BaseRecordAttribute > > &	rRetValList,
		const std::vector< unsigned long > *	pClassIdVector = 0 ) const

Returns all GloBaseRecordAttributes from his record.

Parameters

[in,out]	rRetValList	The attributes are appended to this list. The list is not cleaned up before.
[in]	pClassIdVector	If passed, only the attributes of the (super-) classes with the ClassID from pClassIdVector are transferred to rRetValList.

Returns: A return < 0 indicates an error.

◆ getAllPersAttributesSortByID() [1/2]

int glo::BasePersistent::getAllPersAttributesSortByID	(	std::map< AttributeID, BaseRecordAttribute *, std::less< AttributeID > > &	rRetValMap,
		const std::vector< unsigned long > *	pClassIdVector = 0 ) const

Returns all GloBaseRecordAttributes from his record sorted by their AttributeID

Parameters

[in,out]	rRetValMap	The attributes are appended to this map. The map is not cleaned up before.
[in]	pClassIdVector	If passed, only the attributes of the (super-) classes with the ClassID from pClassIdVector are transferred to rRetValMap.

Returns: A return < 0 indicates an error.

Attention: The objects returned in rRetValMap must be removed from memory by the calling instance using BaseRecordAttribute::forget().

Note: It is recommended, if possible, to consider using std::shared_ptr in conjunction with Forgetter and to use the method getAllPersAttributesSortByID(std::map<std::string,std::shared_ptr<BaseRecordAttribute>,std::less<std::string>>&,const std::vector<unsigned long>*)const.

◆ getAllPersAttributesSortByID() [2/2]

int glo::BasePersistent::getAllPersAttributesSortByID	(	std::map< AttributeID, std::shared_ptr< BaseRecordAttribute >, std::less< AttributeID > > &	rRetValMap,
		const std::vector< unsigned long > *	pClassIdVector = 0 ) const

Returns all GloBaseRecordAttributes from his record sorted by their AttributeID

Parameters

[in,out]	rRetValMap	The attributes are appended to this map. The map is not cleaned up before.
[in]	pClassIdVector	If passed, only the attributes of the (super-) classes with the ClassID from pClassIdVector are transferred to rRetValMap.

Returns: A return < 0 indicates an error.

◆ getAllPersAttributesSortByName() [1/2]

int glo::BasePersistent::getAllPersAttributesSortByName	(	std::map< std::string, BaseRecordAttribute *, std::less< std::string > > &	rRetValMap,
		const std::vector< unsigned long > *	pClassIdVector = 0 ) const

Returns all GloBaseRecordAttributes from his record sorted by attribute name.

Parameters

[in,out]	rRetValMap	The attributes are appended to this map. The map is not cleaned up before.
[in]	pClassIdVector	If passed, only the attributes of the (super-) classes with the ClassID from pClassIdVector are transferred to rRetValMap.

Returns: A return < 0 indicates an error.

Attention: The objects returned in rRetValMap must be removed from memory by the calling instance using BaseRecordAttribute::forget().

Note: It is recommended, if possible, to consider using std::shared_ptr in conjunction with Forgetter and to use the method getAllPersAttributesSortByName(std::map<std::string,std::shared_ptr<BaseRecordAttribute>,std::less<std::string>>&,const std::vector<unsigned long>*)const.

◆ getAllPersAttributesSortByName() [2/2]

int glo::BasePersistent::getAllPersAttributesSortByName	(	std::map< std::string, std::shared_ptr< BaseRecordAttribute >, std::less< std::string > > &	rRetValMap,
		const std::vector< unsigned long > *	pClassIdVector = 0 ) const

Returns all GloBaseRecordAttributes from his record sorted by attribute name.

Parameters

[in,out]	rRetValMap	The attributes are appended to this map. The map is not cleaned up before.
[in]	pClassIdVector	If passed, only the attributes of the (super-) classes with the ClassID from pClassIdVector are transferred to rRetValMap.

Returns: A return < 0 indicates an error.

◆ getBase()

virtual Base * glo::BasePersistent::getBase ( ) const

overridevirtual

Returns: Returns pointers to the database.

Attention: The object returned must not be removed from memory by the calling instance.

See also: setBase(Base*)

Reimplemented from glo::CallBack.

◆ getClassInfo()

virtual int glo::BasePersistent::getClassInfo ( ClassInfo *& prClassInfo )

virtual

Returns the ClassInfo when connected to database.

Parameters

[in,out] prClassInfo The ClassInfo of this object.

Returns: If return value < 0, then an error has occurred.

Attention: The supplied ClassInfo must be removed from memory by the calling instance.

◆ getCreateDate()

virtual std::time_t glo::BasePersistent::getCreateDate ( ) const

pure virtual

Returns in subclasses the date of creation in the database.

Returns: The creation date.

Implemented in glo::Persistent.

◆ getGloClassID()

virtual unsigned long glo::BasePersistent::getGloClassID ( ) const

pure virtual

Returns: Returns the own class ID.

Implemented in glo::Persistent.

◆ getLastChangeDate()

virtual std::time_t glo::BasePersistent::getLastChangeDate ( ) const

pure virtual

Returns in subclasses the date of the last change in the database.

Returns: The change date.

Implemented in glo::Persistent.

◆ getLinkCount()

unsigned int glo::BasePersistent::getLinkCount ( ) const

Returns: Supplies the number of referencing instances.

See also: remember() and forget()

◆ getObjID()

virtual ObjID glo::BasePersistent::getObjID ( ) const

virtual

Returns: Supplies the unique ObjID.

Reimplemented in glo::Persistent.

◆ getPersAttribute() [1/4]

int glo::BasePersistent::getPersAttribute	(	BaseRecordAttribute *&	prRetVal,
		const AttributeID &	rAttributeID ) const

Returns a BaseRecordAttribute from its data set, which corresponds to the passed attributeID.

Parameters

[in,out]	prRetVal	The attribute.
[in]	rAttributeID	The attribut ID.

Returns: A return < 0 indicates an error.

Attention: If prRetVal is valid, it must be removed from memory by the calling instance using BaseRecordAttribute::forget()

Note: It is recommended, if possible, to consider using std::shared_ptr in conjunction with Forgetter and to use the method getPersAttribute(std::shared_ptr<BaseRecordAttribute>&, const AttributeID&)const.

◆ getPersAttribute() [2/4]

int glo::BasePersistent::getPersAttribute	(	BaseRecordAttribute *&	prRetVal,
		const std::string &	sName ) const

Returns a BaseRecordAttribute from its data set, which corresponds to the transferred description (including the class description) (e.g.: "glo::Persistent.m_dtCreateDate").

Parameters

[in,out]	prRetVal	The attribute.
[in]	sName	The full name of the data set attribute searched for (e.g. "glo::Persistent.m_dtCreateDate").

Returns: A return < 0 indicates an error.

Attention: If prRetVal is valid, it must be removed from memory by the calling instance using BaseRecordAttribute::forget()

Note: It is recommended, if possible, to consider using std::shared_ptr in conjunction with Forgetter and to use the method getPersAttribute(std::shared_ptr<BaseRecordAttribute>&, const std::string&)const.

◆ getPersAttribute() [3/4]

int glo::BasePersistent::getPersAttribute	(	std::shared_ptr< BaseRecordAttribute > &	rRetVal,
		const AttributeID &	rAttributeID ) const

Returns a BaseRecordAttribute from its data set, which corresponds to the passed attributeID.

Parameters

[in,out]	rRetVal	The attribute in a std::shared_ptr.
[in]	rAttributeID	The attribut ID.

Returns: A return < 0 indicates an error.

◆ getPersAttribute() [4/4]

int glo::BasePersistent::getPersAttribute	(	std::shared_ptr< BaseRecordAttribute > &	rRetVal,
		const std::string &	sName ) const

Returns a BaseRecordAttribute from its data set, which corresponds to the transferred description (including the class description) (e.g.: "glo::Persistent.m_dtCreateDate").

Parameters

[in,out]	rRetVal	The attribute in a std::shared_ptr.
[in]	sName	The full name of the data set attribute searched for (e.g. "glo::Persistent.m_dtCreateDate").

Returns: A return < 0 indicates an error.

◆ getProcessingPossibilities()

virtual int glo::BasePersistent::getProcessingPossibilities	(	LockPossibleSpecification &	rLockPossibleSpec,
		EnDeepMode	eDeepMode = DM_SHALLOW ) const

virtual

Returns the allowed options for this object in the database.

Parameters

[in,out]	rLockPossibleSpec	The possibility response.
[in]	eDeepMode	The depth mode to check.

Returns: A return value < 0 indicates an error.

See also: Check object for locks or access possibilities.

◆ getRecord() [1/2]

int glo::BasePersistent::getRecord ( Record *& prRecord ) const

Returns the data record of this object.

Parameters

[in,out] prRecord The record, if available.

Returns: A return value < 0 indicates an error.

Attention: If prRecord is valid, it must be removed from memory by the calling instance using Record::forget().

Note: It is recommended, if possible, to consider using std::shared_ptr in conjunction with Forgetter and to use the method getRecord(std::shared_ptr<Record>&)const.

◆ getRecord() [2/2]

int glo::BasePersistent::getRecord ( std::shared_ptr< Record > & rRetVal ) const

Returns the data record of this object.

Parameters

[in,out] rRetVal The record in a std::shared_ptr, if available.

Returns: A return value < 0 indicates an error.

◆ getTypeAsString()

virtual int glo::BasePersistent::getTypeAsString ( std::string & rsTypeName )

overridevirtual

Returns the class name.

Parameters

[in,out] rsTypeName The type name.

Returns: If return value < 0, an error has occurred.

Reimplemented from glo::CallBack.

Reimplemented in glo::Persistent.

◆ insertInObjectSpy()

virtual void glo::BasePersistent::insertInObjectSpy ( ) const

protectedpure virtual

Inserts the object into its ObjectSpy (in Unterklassen, weil Persistent und GenericPersistent unterschiedliche ObjectSpy's haben).

Implemented in glo::Persistent.

◆ isAssigned()

virtual bool glo::BasePersistent::isAssigned ( ) const

virtual

Returns: Returns true if object is logged on to a database.

◆ isDeletedInBase()

virtual bool glo::BasePersistent::isDeletedInBase ( )

virtual

Queries the database whether the object is deleted (not just any flag in memory, hence 'expensive').

Returns: If true, the object is not stored in the database.

Attention: Deleted objects can no longer be saved with their original ObjID.

◆ isLocked() [1/2]

virtual int glo::BasePersistent::isLocked ( const LockSpecification & rLockSpecification ) const

virtual

Queries the database to see if the object is locked by another instance with a specific locking mode (not some flag in memory, so 'expensive').

Parameters

[in] rLockSpecification The lock and lock depth mode.

Returns: If > 0, the object is locked in the database with the passed lock mode. A return value < 0 indicates an error.

See also: Check object for locks or access possibilities.

◆ isLocked() [2/2]

virtual int glo::BasePersistent::isLocked	(	EnLockMode	eLockMode = LK_DELETEvWRITE,
		EnDeepMode	eDeepMode = DM_SHALLOW ) const

virtual

Queries the database whether the referenced object is locked by another instance with a specific locking mode (not some flag in memory, so 'expensive').

Parameters

[in]	eLockMode	The lock mode.
[in]	eDeepMode	The lock depth mode.

Returns: If > 0, the object is locked in the database with the passed lock mode. A return value < 0 indicates an error.

See also: Check object for locks or access possibilities.

◆ isPossible() [1/2]

virtual int glo::BasePersistent::isPossible	(	bool	bRead,
		bool	bWrite,
		bool	bDelete,
		EnDeepMode	eDeepMode = DM_SHALLOW ) const

virtual

The permitted actions for the object in the database are queried.

Parameters

[in]	bRead	If true, the read permission is checked.
[in]	bWrite	If true, the write permission is checked.
[in]	bDelete	If true, a check is made for delete permissions.
[in]	eDeepMode	The depth mode for which it is checked.

Returns: . If return == 0, the respective action is allowed. A return < 0 indicates an error.

See also: Check object for locks or access possibilities.

◆ isPossible() [2/2]

virtual int glo::BasePersistent::isPossible	(	const LockPossibleSpecification &	rLockPossibleSpec,
		EnDeepMode	eDeepMode = DM_SHALLOW ) const

virtual

The permitted actions for the object in the database are queried.

Parameters

[in]	rLockPossibleSpec	The possibility request.
[in]	eDeepMode	The depth mode for which it is checked.

Returns: . If return == 0, the respective action in rLockPossibleSpec is allowed. A return < 0 indicates an error.

See also: Check object for locks or access possibilities.

◆ isStored()

virtual bool glo::BasePersistent::isStored ( )

virtual

Queries the database whether the object is stored (not just any flag in memory, hence 'expensive').

Returns: If true, object is stored in the database.

◆ lock() [1/2]

virtual int glo::BasePersistent::lock ( const LockSpecification & rLockSpecification )

virtual

The object is locked in the database for other clients.

Parameters

[in] rLockSpecification The lock- and lock depth mode.

Returns: A return value < 0 indicates an error.

Note: To unlock the lock, the corresponding method unlock(const LockSpecification&) with the same parameter value must be used.
Finally, the method Persistent::lock(EnLockMode,EnDeepMode) is called.

See also: Locking a persistent object.

◆ lock() [2/2]

virtual int glo::BasePersistent::lock	(	EnLockMode	eLockMode = LK_DELETEvWRITE,
		EnDeepMode	eDeepMode = DM_SHALLOW )

virtual

The object is locked in the database for other clients.

Parameters

[in]	eLockMode	The lock mode.
[in]	eDeepMode	The lock depth mode.

Returns: A return value < 0 indicates an error.

Note: To unlock the lock, the corresponding method unlock(EnLockMode, EnDeepMode) with the same parameter values must be used.

See also: Locking a persistent object.

Reimplemented in glo::Persistent.

◆ operator!=()

bool glo::BasePersistent::operator!= ( const BasePersistent & rT ) const

Comparison operator, all attributes are compared.

Parameters

[in] rT The object to be compared with this one.

◆ operator=()

BasePersistent & glo::BasePersistent::operator= ( const BasePersistent & rT )

Assignment operator.

Parameters

[in] rT The data is transferred from this object.

◆ operator==()

bool glo::BasePersistent::operator== ( const BasePersistent & rT ) const

Comparison operator, all attributes are compared.

Parameters

[in] rT The object to be compared with this one.

◆ refresh()

virtual int glo::BasePersistent::refresh ( )

virtual

Reads all persistent attributes of the object from the database again.

Returns: A return value < 0 indicates an error.

Note: If the object is in a transaction that is not yet completed, the values are retrieved from the transaction.

See also: GlobalObjects Transaction.

Reimplemented in glo::Persistent.

◆ relock() [1/2]

virtual int glo::BasePersistent::relock ( const LockSpecification & rLockSpecification )

virtual

This method executes an unlock(const LockSpecification&) and then a lock(const LockSpecification&) of an already locked object, whereby newly referenced objects are also locked, depending on the locking mode, if possible, and previously locked referenced objects are released. If newly referenced objects cannot be locked, the previous locked state is retained.

Parameters

[in] rLockSpecification The lock- and lock depth mode.

Returns: A return value < 0 indicates an error.

Note: To renew the lock, the same parameter values must be used as for the original lock. To remove the lock, the corresponding method unlock(const LockSpecification&) must be used with the same parameter values.
Finally, the method Persistent::lock(EnLockMode,EnDeepMode) is called.

See also: Locking a persistent object.

◆ relock() [2/2]

virtual int glo::BasePersistent::relock	(	EnLockMode	eLockMode = LK_DELETEvWRITE,
		EnDeepMode	eDeepMode = DM_SHALLOW )

virtual

This method executes an unlock(EnLockMode, EnDeepMode) and then a lock(EnLockMode, EnDeepMode) of an already locked object, whereby newly referenced objects are also locked, depending on the locking mode, if possible, and previously locked referenced objects are released. If newly referenced objects cannot be locked, the previous locked state is retained.

Parameters

[in]	eLockMode	The lock mode.
[in]	eDeepMode	The lock depth mode.

Returns: A return value < 0 indicates an error.

Note: To renew the lock, the same parameter values must be used as for the original lock. To remove the lock, the corresponding method unlock(EnLockMode, EnDeepMode) must be used with the same parameter values.

See also: Locking a persistent object.

Reimplemented in glo::Persistent.

◆ remember()

virtual unsigned int glo::BasePersistent::remember ( )

virtual

Increments the reference counter. Should always be called when an object of this class is delivered. The delivered instance must then 'forget' the object with BasePersistent::forget().

Returns: The return value is the number of references to the object of this class.

Note: It is recommended, if possible, to consider using std::shared_ptr in conjunction with Forgetter.

◆ removeBase()

virtual void glo::BasePersistent::removeBase ( )

virtual

Removes the reference to the database and sets it to nullptr

Reimplemented in glo::Persistent.

◆ removeInObjectSpy()

virtual void glo::BasePersistent::removeInObjectSpy ( ) const

protectedpure virtual

Removes the object from its ObjectSpy (in Unterklassen, weil Persistent und GenericPersistent unterschiedliche ObjectSpy's haben).

Implemented in glo::Persistent.

◆ setBase()

virtual int glo::BasePersistent::setBase ( Base * pBase )

overridevirtual

Sets the pointer to the database.

Parameters

[in] pBase Pointer to the database.

Returns: If return value < 0, then an error has occurred.

Attention: The database remains the responsibility of the calling instance. If, for example, the database is removed from memory, setBase(Base*) must first be called with nullptr or removeBase().

Reimplemented from glo::CallBack.

◆ setCreateDate()

virtual void glo::BasePersistent::setCreateDate ( )

protectedpure virtual

Sets the creation date (in subclasses).

Implemented in glo::Persistent.

◆ setSpyaction()

void glo::BasePersistent::setSpyaction ( bool bSpyaction )

protected

Sets m_bSpyaction.

Parameters

[in] bSpyaction If false, for example in dtor the object is not removed from ObjectSpy.

◆ setWatch() [1/2]

virtual int glo::BasePersistent::setWatch ( const WatchSpecification & rWatchSpec )

virtual

The object is monitored in the database.

Parameters

[in] rWatchSpec The monitoring specification.

Returns: A return < 0 indicates an error.

Note: To cancel the monitoring, the corresponding method unsetWatch(const WatchSpecification&) const must be used with the same parameter values.
In principle, it is possible to cancel individual watching modes. Care should then be taken that all individual watching modes are also applied so that no watching remains in the memory until the program is terminated.
Finally, the method Persistent::setWatch(TdWatchNotifyMode,EnDeepMode,CallBack*) is called.

See also: Watch and notify.

◆ setWatch() [2/2]

virtual int glo::BasePersistent::setWatch	(	TdWatchNotifyMode	ulWatchMode,
		EnDeepMode	eDeepMode,
		CallBack *	pCallBack = 0 )

virtual

The object is monitored in the database.

Parameters

[in]	ulWatchMode	The watch mode. Allowed watch modes: ::WNM_WRITE = writing is reported ::WNM_WRITE_TRANSACTION = like ::WNM_WRITE, but triggered in a transaction ::WNM_DELETE = delete is reported ::WNM_DELETE_TRANSACTION = like ::WNM_DELETE, but triggered in a transaction ::WNM_LOCK = lock is reported ::WNM_UNLOCK = release is reported
[in]	eDeepMode	The watching depth mode.
[in]	pCallBack	The CallBack object that is notified via its method CallBack::notify(NotifyNote&). If no CallBack is passed, notify(NotifyNote&) is taken from this; in this case the method notify(NotifyNote&) should be overwritten in the respective derived class.

Returns: A return value < 0 indicates an error.

Note: To remove the monitoring, the corresponding method unsetWatch(TdWatchNotifyMode, EnDeepMode, CallBack*) const with same parameter values can be used.
In principle, it is possible to cancel individual watching modes. Care should then be taken that all individual watching modes are also applied so that no watching remains in the memory until the program is terminated.

Attention: Basically pCallBack must not be destroyed before the monitoring has been cancelled!

See also: Watch and notify.

Reimplemented in glo::Persistent.

◆ store()

virtual int glo::BasePersistent::store ( EnDeepMode eDeepMode = DM_SHALLOW )

virtual

The object respectively its persistent attributes are stored in the database.

Parameters

[in] eDeepMode The storage depth mode.

Returns: A return < 0 indicates an error.

Note: The object must be known to the database respectively logged in there.

See also: BasePersistent::assign(Base&)

Reimplemented in glo::Persistent.

◆ takeOverRecord()

virtual void glo::BasePersistent::takeOverRecord ( Record * pRecord )

virtual

Takes the Record over if not equal to nullptr. In any case, the own existing record in m_pRecord will be 'forgotten'.

Parameters

[in] pRecord The record to be taken over.

Reimplemented in glo::Persistent.

◆ unlock() [1/2]

virtual int glo::BasePersistent::unlock ( const LockSpecification & rLockSpecification )

virtual

The object is released in the database. A lock release must be called with the same parameters as the previous lock call.

Parameters

[in] rLockSpecification The original lock and lock depth mode.

Returns: A return value < 0 indicates an error.

Note: Removes the lock initiated by the corresponding method lock(const LockSpecification&) const if the parameter has the same values.
Finally, the method Persistent::unLock(EnLockMode,EnDeepMode) is called.

See also: Locking a persistent object.

◆ unlock() [2/2]

virtual int glo::BasePersistent::unlock	(	EnLockMode	eLockMode = LK_DELETEvWRITE,
		EnDeepMode	eDeepMode = DM_SHALLOW )

virtual

The object is released in the database. A lock release must be called with the same parameters as the previous lock call.

Parameters

[in]	eLockMode	The original lock mode.
[in]	eDeepMode	The original lock depth mode.

Returns: A return < 0 indicates an error.

Note: Removes the lock initiated by the corresponding method lock(EnLockMode, EnDeepMode) const if the parameters have the same values.

See also: Locking a persistent object.

Reimplemented in glo::Persistent.

◆ unsetWatch() [1/2]

virtual int glo::BasePersistent::unsetWatch ( const WatchSpecification & rWatchSpec )

virtual

The monitoring of the object in the database is terminated. A monitoring termination must be called with the same parameters as the previous monitoring.

Parameters

[in] rWatchSpec The original monitoring specification.

Returns: A return < 0 indicates an error.

Note: Clears the monitoring initiated by the corresponding method setWatch(const WatchSpecification&) const if the parameters have the same values.
In principle, it is possible to cancel individual watching modes. Care should then be taken that all individual watching modes are also applied so that no watching remains in the memory until the program is terminated.
Finally, the method Persistent::unsetWatch(TdWatchNotifyMode,EnDeepMode,CallBack*) is called.

See also: Watch and notify.

◆ unsetWatch() [2/2]

virtual int glo::BasePersistent::unsetWatch	(	TdWatchNotifyMode	ulWatchMode,
		EnDeepMode	eDeepMode,
		CallBack *	pCallBack = 0 )

virtual

The monitoring of the object in the database is terminated. A monitoring termination must be called with the same parameters as the previous monitoring.

Parameters

[in]	ulWatchMode	The original watch mode. Allowed watch modes: ::WNM_WRITE = writing is reported ::WNM_WRITE_TRANSACTION = like ::WNM_WRITE, but triggered in a transaction ::WNM_DELETE = delete is reported ::WNM_DELETE_TRANSACTION = like ::WNM_DELETE, but triggered in a transaction ::WNM_LOCK = lock is reported ::WNM_UNLOCK = release is reported
[in]	eDeepMode	The original monitoring depth mode.
[in]	pCallBack	The CallBack object that was notified via its method CallBack::notify(NotifyNote&). If no CallBack is passed, notify(NotifyNote&) is taken from this; in this case the method notify(NotifyNote&) should be overwritten in the respective derived class.

Returns: A return value < 0 indicates an error.

Note: Clears the monitoring initiated by the corresponding method setWatch(TdWatchNotifyMode, EnDeepMode, CallBack*) const if the parameters have the same values.
In principle, it is possible to cancel individual watching modes. Care should then be taken that all individual watching modes are also applied so that no watching remains in the memory until the program is terminated.

See also: Watch and notify.

Reimplemented in glo::Persistent.

Friends And Related Symbol Documentation

◆ PrivateBase

friend class PrivateBase

friend

Because of access to various methods.

Member Data Documentation

◆ m_bSpyaction

bool glo::BasePersistent::m_bSpyaction

protected

If false, the object in the destructor of the subclasses (see also there) is not removed from Objektspy (if necessary it should not exist there).
For example, is set to false by PrivateBase when reinstantiating an embedded object.
Default setting = true.

◆ m_LocalCriticalSection

eut::CriticalSection glo::BasePersistent::m_LocalCriticalSection

protected

To allow multiple threads to access BasePersistent::remember() and BasePersistent::forget(), access is synchronized with this CriticalSection.

◆ m_pBase

Base* glo::BasePersistent::m_pBase

protected

Persistend objects belong to a database.

◆ m_pRecord

Record* glo::BasePersistent::m_pRecord

protected

The data set of the object is merged from several data sets in these if necessary.

◆ m_uiReferenceCount

unsigned int glo::BasePersistent::m_uiReferenceCount

protected

The reference counter. See also the class description of BasePersistent.

The documentation for this class was generated from the following file:

GloBasePersistent.h

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BasePersistent() [1/2]

◆ ~BasePersistent()

◆ BasePersistent() [2/2]

Member Function Documentation

◆ assign()

◆ deleteInBase()

◆ forget()

◆ getAllPersAttributeNames()

◆ getAllPersAttributeNamesSortByID()

◆ getAllPersAttributes() [1/2]

◆ getAllPersAttributes() [2/2]

◆ getAllPersAttributesSortByID() [1/2]

◆ getAllPersAttributesSortByID() [2/2]

◆ getAllPersAttributesSortByName() [1/2]

◆ getAllPersAttributesSortByName() [2/2]

◆ getBase()

◆ getClassInfo()

◆ getCreateDate()

◆ getGloClassID()

◆ getLastChangeDate()

◆ getLinkCount()

◆ getObjID()

◆ getPersAttribute() [1/4]

◆ getPersAttribute() [2/4]

◆ getPersAttribute() [3/4]

◆ getPersAttribute() [4/4]

◆ getProcessingPossibilities()

◆ getRecord() [1/2]

◆ getRecord() [2/2]

◆ getTypeAsString()

◆ insertInObjectSpy()

◆ isAssigned()

◆ isDeletedInBase()

◆ isLocked() [1/2]

◆ isLocked() [2/2]

◆ isPossible() [1/2]

◆ isPossible() [2/2]

◆ isStored()

◆ lock() [1/2]

◆ lock() [2/2]

◆ operator!=()

◆ operator=()

◆ operator==()

◆ refresh()

◆ relock() [1/2]

◆ relock() [2/2]

◆ remember()

◆ removeBase()

◆ removeInObjectSpy()

◆ setBase()

◆ setCreateDate()

◆ setSpyaction()

◆ setWatch() [1/2]

◆ setWatch() [2/2]

◆ store()

◆ takeOverRecord()

◆ unlock() [1/2]

◆ unlock() [2/2]

◆ unsetWatch() [1/2]

◆ unsetWatch() [2/2]

Friends And Related Symbol Documentation

◆ PrivateBase

Member Data Documentation

◆ m_bSpyaction

◆ m_LocalCriticalSection

◆ m_pBase

◆ m_pRecord

◆ m_uiReferenceCount
