Class that communicates with a Client via a SOCKET and delivers its receive result of type ServerMessage to its "owner", which must be a Server. You can use the method ServerReceiver::acceptMessage(AbstractMessage * pTcpMessage) to change the delivery to the "owner" in subclasses by overwriting the method. More...

#include <TcpServerReceiver.h>

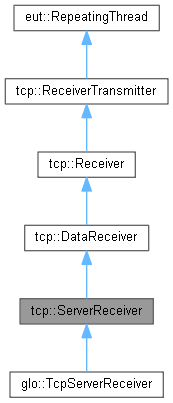

Inheritance diagram for tcp::ServerReceiver:

[legend]

Public Member Functions
	ServerReceiver (Server *pParent, SOCKET Socket, unsigned int uiDataSize)

virtual	~ServerReceiver ()

virtual void	cancel () override

void	setValid (bool bValid)

Public Member Functions inherited from tcp::DataReceiver
	DataReceiver (TcpMain *pParent, SOCKET Socket, unsigned int uiDataSize)

virtual	~DataReceiver ()

unsigned int	getDataSize () const

void	setDataSize (unsigned int uiDataSize)

Public Member Functions inherited from tcp::Receiver
	Receiver (TcpMain *pParent, SOCKET Socket)

virtual	~Receiver ()

Public Member Functions inherited from tcp::ReceiverTransmitter
	ReceiverTransmitter (SOCKET Socket)

virtual	~ReceiverTransmitter ()

virtual void	finishBreak () override

int	getPeerName (std::string &rstrIPAdress, unsigned int &ruiPort) const

SOCKET	Socket () const

virtual void	takeABreak () override

Public Member Functions inherited from eut::RepeatingThread
	RepeatingThread ()

virtual	~RepeatingThread ()

int	getBreakCounter ()

bool	isInExclusiveAccess () const

void	setExclusiveAccess ()

void	signalInput ()

virtual int	start ()

RepeatingThread::STATUS	status () const

bool	testCancel ()

void	unsetExclusiveAccess ()

void	waitForInput ()

Protected Member Functions
	ServerReceiver ()

	ServerReceiver (SOCKET)

	ServerReceiver (TcpMain *, SOCKET)

	ServerReceiver (TcpMain *, SOCKET, unsigned int)

virtual int	acceptMessage (AbstractMessage *pTcpServerMessage) override

virtual void	generateNewTcpMessage (AbstractMessage &prTcpServerMessage, char pszRawMsg, unsigned int uiRawMsgSize, unsigned int uiMessageID, int iActionCode, const std::string &rstrInfo) const override

virtual void	generateNewTcpMessage (AbstractMessage &prTcpServerMessage, char pszTransmitData, unsigned int uiTransmitDataSize) const override

virtual void	work () override

Protected Member Functions inherited from tcp::DataReceiver
	DataReceiver ()

	DataReceiver (SOCKET)

	DataReceiver (TcpMain *, SOCKET)

void	initStreamData ()

int	processReceivedData (char *pszSentBuffer, unsigned int t_uiSentBufferSize)

Protected Member Functions inherited from tcp::Receiver
	Receiver ()

	Receiver (SOCKET Socket)

Protected Member Functions inherited from tcp::ReceiverTransmitter
	ReceiverTransmitter ()

Protected Member Functions inherited from eut::RepeatingThread
ORDER	getOrder ()

STATUS	getStatus ()

void	setStatus (STATUS eStatus)

void	threadWork ()

void	toOrder (ORDER eOrder)

Protected Attributes
bool	m_bValid

Protected Attributes inherited from tcp::DataReceiver
char *	m_pszSentBuffer

char *	m_szStreamBuffer

unsigned int	m_uiDataSize

unsigned int	m_uiStreamPosistion

unsigned int	m_uiStreamSize

Protected Attributes inherited from tcp::Receiver
TcpMain *	m_pParentTcpMain

Protected Attributes inherited from tcp::ReceiverTransmitter
SOCKET	m_Socket

Private Member Functions
	ServerReceiver (const ServerReceiver &)

ServerReceiver &	operator= (const ServerReceiver &)

Additional Inherited Members
Public Types inherited from eut::RepeatingThread
enum	EuTHREADERROR { EuTHREAD_ERR_NO_THREAD = -10301 , EuTHREAD_ERR_THREAD_ALREADY_WORKING = -10302 , EuTHREAD_ERR_THREAD_BREAK_COUNT_LESS_THAN_ZERO = -10303 , EuTHREAD_ERR_UNKNOWN = -10400 }
	Error range = -10301 to -10400 More...

enum	ORDER { eUNDEFINED , eDO_WORK , eEXIT }

enum	STATUS { eAT_THE_START , eWORKING , ePAUSING , eENDING , eCOMPLETED }

Public Attributes inherited from eut::RepeatingThread
std::string	m_strDebugInfo

Detailed Description

Class that communicates with a Client via a SOCKET and delivers its receive result of type ServerMessage to its "owner", which must be a Server. You can use the method ServerReceiver::acceptMessage(AbstractMessage * pTcpMessage) to change the delivery to the "owner" in subclasses by overwriting the method.

Copyright: © 2010 Helmut Jakoby

Author: Helmut Jakoby

Constructor & Destructor Documentation

◆ ServerReceiver() [1/6]

tcp::ServerReceiver::ServerReceiver ( )

protected

This constructor is not available.

◆ ServerReceiver() [2/6]

tcp::ServerReceiver::ServerReceiver ( SOCKET )

protected

This constructor is not available.

◆ ServerReceiver() [3/6]

tcp::ServerReceiver::ServerReceiver	(	TcpMain *	,
		SOCKET	)

protected

This constructor is not available.

◆ ServerReceiver() [4/6]

tcp::ServerReceiver::ServerReceiver	(	TcpMain *	,
		SOCKET	,
		unsigned int	)

protected

This constructor is not available.

◆ ServerReceiver() [5/6]

tcp::ServerReceiver::ServerReceiver	(	Server *	pParent,
		SOCKET	Socket,
		unsigned int	uiDataSize )

Constructor with parameter passing.

Parameters

[in]	pParent	The owning parent object.
[in]	Socket	The socket through which communication takes place.
[in]	uiDataSize	The package size.

Exceptions

eut::ErrorNException An exception is thrown if an error occurs.

◆ ~ServerReceiver()

virtual tcp::ServerReceiver::~ServerReceiver ( )

virtual

Destructor.

◆ ServerReceiver() [6/6]

tcp::ServerReceiver::ServerReceiver ( const ServerReceiver & )

private

The copy constructor is not available.

Member Function Documentation

◆ acceptMessage()

virtual int tcp::ServerReceiver::acceptMessage ( AbstractMessage * pTcpServerMessage )

overrideprotectedvirtual

Forwards the transferred message to its Server, which also deletes the message after processing.
The Server can then process these further in subclasses if necessary. If processing in a subclass of ClientReceiver is required, this method can also be overwritten.

Parameters

[in] pTcpServerMessage The received message.

Returns: A return < 0 indicates an error.

Attention: The passed object must not be removed from memory by the calling instance.

See also: ServerMessage

Implements tcp::DataReceiver.

Reimplemented in glo::TcpServerReceiver.

◆ cancel()

virtual void tcp::ServerReceiver::cancel ( )

overridevirtual

Terminates the thread.

Reimplemented from eut::RepeatingThread.

◆ generateNewTcpMessage() [1/2]

virtual void tcp::ServerReceiver::generateNewTcpMessage	(	AbstractMessage *&	prTcpServerMessage,
		char *	pszRawMsg,
		unsigned int	uiRawMsgSize,
		unsigned int	uiMessageID,
		int	iActionCode,
		const std::string &	rstrInfo ) const

overrideprotectedvirtual

Generates a ServerMessage from transferred parameters.

Parameters

[in,out]	prTcpServerMessage	Pointer to newly generated ServerMessage. This object takes over the removal of the pszRawMsg from the memory.
[in]	pszRawMsg	The message data.
[in]	uiRawMsgSize	The size or length of the message data.
[in]	uiMessageID	A unique ID.
[in]	iActionCode	The ActionCode.
[in]	rstrInfo	An additional text info

Attention: The supplied object must be removed from memory by the calling instance.

Exceptions

eut::ErrorNException If no ServerMessage can be instantiated from the parameters, an exception is thrown.

See also: ServerMessage

Implements tcp::DataReceiver.

◆ generateNewTcpMessage() [2/2]

virtual void tcp::ServerReceiver::generateNewTcpMessage	(	AbstractMessage *&	prTcpServerMessage,
		char *	pszTransmitData,
		unsigned int	uiTransmitDataSize ) const

overrideprotectedvirtual

Generates a ServerMessage from the transferred data buffer and its size.

Parameters

[in,out]	prTcpServerMessage	Pointer to newly generated ServerMessage. This object takes care of removing the pszTransmitData from the memory.
[in]	pszTransmitData	The data buffer including all required information.
[in]	uiTransmitDataSize	The size or length of the data buffer to be sent.

Attention: The supplied object must be removed from memory by the calling instance.

Exceptions

eut::ErrorNException If no ServerMessage can be instantiated from the data (because, for example, the header is incorrect), an exception is thrown.

See also: ServerMessage

Implements tcp::DataReceiver.

◆ operator=()

ServerReceiver & tcp::ServerReceiver::operator= ( const ServerReceiver & )

private

The assignment operator is not available.

◆ setValid()

void tcp::ServerReceiver::setValid ( bool bValid )

Called when socket is no longer ok.

Parameters

[in] bValid If there is a SOCKET error, false is passed here.

◆ work()

virtual void tcp::ServerReceiver::work ( )

overrideprotectedvirtual

Accepts streams from its socket (is blocked until received), turns the data into a ServerMessage which is further processed in ServerReceiver::acceptMessage(AbstractMessage * pTcpMessage).

Implements eut::RepeatingThread.

Member Data Documentation

◆ m_bValid

bool tcp::ServerReceiver::m_bValid

protected

Set to false if socket is no longer ok.

The documentation for this class was generated from the following file:

TcpServerReceiver.h
