Class that communicates with a tcp::Client via a SOCKET and delivers the result of the reception of the type Message to its parent, which must be a Server. The deliver to the parent via method acceptMessage(AbstractMessage*) has been changed by overwriting, the Manager is addressed if necessary. More...

#include <GloTcpServerReceiver.h>

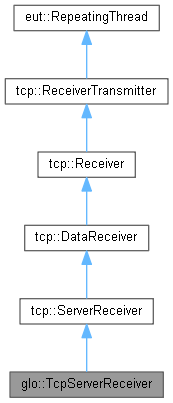

Inheritance diagram for glo::TcpServerReceiver:

[legend]

Public Member Functions
	TcpServerReceiver (tcp::Server *pParent, SOCKET Socket, unsigned int uiDataSize)

virtual	~TcpServerReceiver ()

Public Member Functions inherited from tcp::ServerReceiver
	ServerReceiver (Server *pParent, SOCKET Socket, unsigned int uiDataSize)

virtual	~ServerReceiver ()

virtual void	cancel () override

void	setValid (bool bValid)

Public Member Functions inherited from tcp::DataReceiver
	DataReceiver (TcpMain *pParent, SOCKET Socket, unsigned int uiDataSize)

virtual	~DataReceiver ()

unsigned int	getDataSize () const

void	setDataSize (unsigned int uiDataSize)

Public Member Functions inherited from tcp::Receiver
	Receiver (TcpMain *pParent, SOCKET Socket)

virtual	~Receiver ()

Public Member Functions inherited from tcp::ReceiverTransmitter
	ReceiverTransmitter (SOCKET Socket)

virtual	~ReceiverTransmitter ()

virtual void	finishBreak () override

int	getPeerName (std::string &rstrIPAdress, unsigned int &ruiPort) const

SOCKET	Socket () const

virtual void	takeABreak () override

Public Member Functions inherited from eut::RepeatingThread
	RepeatingThread ()

virtual	~RepeatingThread ()

int	getBreakCounter ()

bool	isInExclusiveAccess () const

void	setExclusiveAccess ()

void	signalInput ()

virtual int	start ()

RepeatingThread::STATUS	status () const

bool	testCancel ()

void	unsetExclusiveAccess ()

void	waitForInput ()

Protected Member Functions
virtual int	acceptMessage (tcp::AbstractMessage *pTcpMessage)

int	getSchemaMap (std::map< unsigned long, ClassInfo *, std::less< unsigned long > > &rSchemaMap, const std::string &rstrBaseName, bool bCopy=true)

void	setReceiverTransmitter (Server::TcpServerReceiverTransmitter *pReceiverTransmitter)


	TcpServerReceiver ()

	TcpServerReceiver (SOCKET Socket)

	TcpServerReceiver (tcp::TcpMain *pParent, SOCKET Socket)

	TcpServerReceiver (tcp::TcpMain *pParent, SOCKET Socket, unsigned int iDataSize)

Protected Member Functions inherited from tcp::ServerReceiver
	ServerReceiver ()

	ServerReceiver (SOCKET)

	ServerReceiver (TcpMain *, SOCKET)

	ServerReceiver (TcpMain *, SOCKET, unsigned int)

virtual void	generateNewTcpMessage (AbstractMessage &prTcpServerMessage, char pszRawMsg, unsigned int uiRawMsgSize, unsigned int uiMessageID, int iActionCode, const std::string &rstrInfo) const override

virtual void	generateNewTcpMessage (AbstractMessage &prTcpServerMessage, char pszTransmitData, unsigned int uiTransmitDataSize) const override

virtual void	work () override

Protected Member Functions inherited from tcp::DataReceiver
	DataReceiver ()

	DataReceiver (SOCKET)

	DataReceiver (TcpMain *, SOCKET)

void	initStreamData ()

int	processReceivedData (char *pszSentBuffer, unsigned int t_uiSentBufferSize)

Protected Member Functions inherited from tcp::Receiver
	Receiver ()

	Receiver (SOCKET Socket)

Protected Member Functions inherited from tcp::ReceiverTransmitter
	ReceiverTransmitter ()

Protected Member Functions inherited from eut::RepeatingThread
ORDER	getOrder ()

STATUS	getStatus ()

void	setStatus (STATUS eStatus)

void	threadWork ()

void	toOrder (ORDER eOrder)

Private Attributes
Server::TcpServerReceiverTransmitter *	m_pMyReceiverTransmitter

std::string	m_sSchemaName

Friends
class	Server

Additional Inherited Members
Public Types inherited from eut::RepeatingThread
enum	EuTHREADERROR { EuTHREAD_ERR_NO_THREAD = -10301 , EuTHREAD_ERR_THREAD_ALREADY_WORKING = -10302 , EuTHREAD_ERR_THREAD_BREAK_COUNT_LESS_THAN_ZERO = -10303 , EuTHREAD_ERR_UNKNOWN = -10400 }
	Error range = -10301 to -10400 More...

enum	ORDER { eUNDEFINED , eDO_WORK , eEXIT }

enum	STATUS { eAT_THE_START , eWORKING , ePAUSING , eENDING , eCOMPLETED }

Public Attributes inherited from eut::RepeatingThread
std::string	m_strDebugInfo

Protected Attributes inherited from tcp::ServerReceiver
bool	m_bValid

Protected Attributes inherited from tcp::DataReceiver
char *	m_pszSentBuffer

char *	m_szStreamBuffer

unsigned int	m_uiDataSize

unsigned int	m_uiStreamPosistion

unsigned int	m_uiStreamSize

Protected Attributes inherited from tcp::Receiver
TcpMain *	m_pParentTcpMain

Protected Attributes inherited from tcp::ReceiverTransmitter
SOCKET	m_Socket

Detailed Description

Class that communicates with a tcp::Client via a SOCKET and delivers the result of the reception of the type Message to its parent, which must be a Server. The deliver to the parent via method acceptMessage(AbstractMessage*) has been changed by overwriting, the Manager is addressed if necessary.

Copyright: © 2010 Helmut Jakoby

Author: Helmut Jakoby

Constructor & Destructor Documentation

◆ TcpServerReceiver() [1/5]

glo::TcpServerReceiver::TcpServerReceiver ( )

protected

This constructor is not available.

◆ TcpServerReceiver() [2/5]

glo::TcpServerReceiver::TcpServerReceiver ( SOCKET Socket )

protected

This constructor is not available.

◆ TcpServerReceiver() [3/5]

glo::TcpServerReceiver::TcpServerReceiver	(	tcp::TcpMain *	pParent,
		SOCKET	Socket )

protected

This constructor is not available.

◆ TcpServerReceiver() [4/5]

glo::TcpServerReceiver::TcpServerReceiver	(	tcp::TcpMain *	pParent,
		SOCKET	Socket,
		unsigned int	iDataSize )

protected

This constructor is not available.

◆ TcpServerReceiver() [5/5]

glo::TcpServerReceiver::TcpServerReceiver	(	tcp::Server *	pParent,
		SOCKET	Socket,
		unsigned int	uiDataSize )

Constructor with parameter passing.

Parameters

[in]	pParent	The owning parent object, must be a Server here. The type is not checked separately, the calling instance knows what it is doing.
[in]	Socket	The socket over which communication takes place.
[in]	uiDataSize	The package size.

Exceptions

eut::ErrorNException An exception is thrown if an error occurs.

◆ ~TcpServerReceiver()

virtual glo::TcpServerReceiver::~TcpServerReceiver ( )

virtual

Destructor.

Member Function Documentation

◆ acceptMessage()

virtual int glo::TcpServerReceiver::acceptMessage ( tcp::AbstractMessage * pTcpMessage )

protectedvirtual

The message, which must be of type ServerMessage, is evaluated and usually forwarded to the Manager.

Parameters

[in] pTcpMessage The received message.

Returns: A return < 0 indicates an error.

Reimplemented from tcp::ServerReceiver.

◆ getSchemaMap()

int glo::TcpServerReceiver::getSchemaMap	(	std::map< unsigned long, ClassInfo *, std::less< unsigned long > > &	rSchemaMap,
		const std::string &	rstrBaseName,
		bool	bCopy = true )

protected

Returns the class information of a database.

Parameters

[in,out]	rSchemaMap	The list of class information objects.
[in]	rstrBaseName	The name of the database from which the class information objects are to be extracted.
[in]	bCopy	Copies or originals: If true, copies of the class information are inserted into rClassInfoMap; then calling instance must remove this object from memory. If false, the originals of the class information are inserted into rClassInfoMap; then the calling instance must not remove this object from memory.

Returns: A return value < 0 indicates an error.

◆ setReceiverTransmitter()

void glo::TcpServerReceiver::setReceiverTransmitter ( Server::TcpServerReceiverTransmitter * pReceiverTransmitter )

protected

Sets the own TcpServerReceiverTransmitter.

Parameters

[in] pReceiverTransmitter The TcpServerReceiverTransmitter used here.

Friends And Related Symbol Documentation

◆ Server

friend class Server

friend

Member Data Documentation

◆ m_pMyReceiverTransmitter

Server::TcpServerReceiverTransmitter* glo::TcpServerReceiver::m_pMyReceiverTransmitter

private

The TcpServerReceiverTransmitter, which receives or sends the packets in order to be able to reply directly to the client.

◆ m_sSchemaName

std::string glo::TcpServerReceiver::m_sSchemaName

private

The name of the underlying scheme.

The documentation for this class was generated from the following file:

GloTcpServerReceiver.h
