An object of this class or subclass accesses tables and reads or writes data records (Record) and binary files (eut::Blob). More...

#include <GloTableInterface.h>

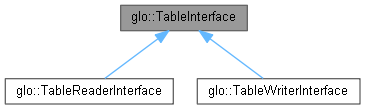

Inheritance diagram for glo::TableInterface:

[legend]

Classes
class	TableInterfaceTable
	A file (std::fstream) and its name. More...

Public Member Functions
	TableInterface (const SchemaInterface &rScheme, RealIndexPool *pRealIndexPool)

virtual	~TableInterface ()

virtual int	closeTable (const std::string &sTable)

std::string	getDataPath () const

int	getObjIDRecordAttribute (ObjIDRecordAttribute *&prRetVal, const std::string &sTable, const ObjID &rObjID)

SchemaInterface &	getSchemaInterface ()

std::string	getSchemaPath () const

int	objIDInBase (bool &rPresent, const ObjID &rObjID) const

virtual int	openTable (const std::string &sTableName)=0

Protected Member Functions
	TableInterface ()

int	openFile (std::fstream *&prFStream, const std::string &sFullFileName, std::ios_base::openmode OpenMode)

Protected Attributes
std::map< std::string, TableInterfaceTable *, std::less< std::string > >	m_OpenTableMap

RealIndexPool *	m_pRealIndexPool

SchemaInterface *	m_pSchema

Private Member Functions
	TableInterface (const TableInterface &)

void	closeAllTables ()

TableInterface::TableInterfaceTable *	getTable (const std::string &m_sTableName)

TableInterface &	operator= (const TableInterface &)

Detailed Description

An object of this class or subclass accesses tables and reads or writes data records (Record) and binary files (eut::Blob).

An IndexPool is passed which has created the indexes (e.g. the ObjIDs) of all tables during instantiation. Accesses to the tables are realized via this IndexPool if possible.

If a table is closed or read, the index is not destroyed or read again. This requires that only a derived writer with the same RealIndexPool is allowed to write to the tables and maintain the indexes.

Copyright: © 2010 Helmut Jakoby

Author: Helmut Jakoby

Constructor & Destructor Documentation

◆ TableInterface() [1/3]

glo::TableInterface::TableInterface ( )

protected

The default constructor is not available.

◆ TableInterface() [2/3]

glo::TableInterface::TableInterface	(	const SchemaInterface &	rScheme,
		RealIndexPool *	pRealIndexPool )

Constructor with parameter passing.

Parameters

[in]	rScheme	Cannot be used without schema, will be copied.
[in]	pRealIndexPool	Accelerates the access to records.

Exceptions

eut::ErrorNException An exception is thrown if an error occurs.

◆ ~TableInterface()

virtual glo::TableInterface::~TableInterface ( )

virtual

Destructor, all open table files are closed and the memory is cleaned up.

◆ TableInterface() [3/3]

glo::TableInterface::TableInterface ( const TableInterface & )

private

The copy constructor is not available.

Member Function Documentation

◆ closeAllTables()

void glo::TableInterface::closeAllTables ( )

private

Schliesst und entfernt alle Tabellen-Dateien aus der Liste der geöffneten Tabellen-Dateien.

◆ closeTable()

virtual int glo::TableInterface::closeTable ( const std::string & sTable )

virtual

Closes a table file.

Parameters

[in] sTable The table file name.

Returns: A return value < 0 indicates an error.

◆ getDataPath()

std::string glo::TableInterface::getDataPath ( ) const

Returns the full directory name where the data can be found. The data is always located in a subdirectory of the directory where the schema file is located.

Returns: The complete directory name, such as "C:/Path/Data/" under the Windows operating system.

◆ getObjIDRecordAttribute()

int glo::TableInterface::getObjIDRecordAttribute	(	ObjIDRecordAttribute *&	prRetVal,
		const std::string &	sTable,
		const ObjID &	rObjID )

Returns the object ID attribute with passed object ID from the table file with the passed name.

Parameters

[in,out]	prRetVal	The found object ID attribute.
[in]	sTable	The table file name in which the object ID attribute is searched.
[in]	rObjID	The object ID of the searched object ID attribute.

Returns: A return value < 0 indicates an error.

◆ getSchemaInterface()

SchemaInterface & glo::TableInterface::getSchemaInterface ( )

Returns a pointer to m_pSchema.

Returns: See above.

Attention: The GloSchema interface lives only as long as the returning object of this class.

◆ getSchemaPath()

std::string glo::TableInterface::getSchemaPath ( ) const

Returns the file path where the schema file can be found.

Returns: Full pathname (e.g. under the operating system Windows "C:/Path/").

◆ getTable()

TableInterface::TableInterfaceTable * glo::TableInterface::getTable ( const std::string & m_sTableName )

private

Returns a table file in an object of type TableInterfaceTable with the passed name from the list of opened table files.

Parameters

[in] m_sTableName The file name.

Returns: The table file, if it exists with the given name; otherwise 0.

Attention: The returned object lives only as long as the returning instance.

◆ objIDInBase()

int glo::TableInterface::objIDInBase	(	bool &	rPresent,
		const ObjID &	rObjID ) const

Checks if an object with passed object ID is stored in the database.

Parameters

[in,out]	rPresent	If true, there is an object with passed object ID in the database.
[in]	rObjID	The object ID to be checked.

Returns: A return value < 0 indicates an error.

◆ openFile()

int glo::TableInterface::openFile	(	std::fstream *&	prFStream,
		const std::string &	sFullFileName,
		std::ios_base::openmode	OpenMode )

protected

Opens and returns the opened file. It is first looked up in the list of opened table files and returns them if available.
. Otherwise, the program tries to open a file with the specified name and, if successful, to insert it into the list of opened table files and deliver it.
Is used by both subclasses with different 'OpenMode'.

Parameters

[in,out]	prFStream	The opened file (if successful).
[in]	sFullFileName	The file name.
[in]	OpenMode	The mode in which the file is opened.

Returns: A return value < 0 indicates an error.

Note: If a prFStream was delivered, it is in m_OpenTableMap and is closed with closeTable (...) and removed from memory.

◆ openTable()

virtual int glo::TableInterface::openTable ( const std::string & sTableName )

pure virtual

Opens a table file in subclasses and adds it to the list of opened table files if successful.

Parameters

[in] sTableName The table file name.

Returns: A return value < 0 indicates an error.

Implemented in glo::TableReaderInterface, and glo::TableWriterInterface.

◆ operator=()

TableInterface & glo::TableInterface::operator= ( const TableInterface & )

private

The assignment operator is not available.

Member Data Documentation

◆ m_OpenTableMap

std::map< std::string, TableInterfaceTable *, std::less<std::string> > glo::TableInterface::m_OpenTableMap

protected

The container opened table files.

◆ m_pRealIndexPool

RealIndexPool* glo::TableInterface::m_pRealIndexPool

protected

If available, the RealIndexPool is used to find a record faster.

◆ m_pSchema

SchemaInterface* glo::TableInterface::m_pSchema

protected

The underlying scheme.

The documentation for this class was generated from the following file:

GloTableInterface.h
